ST 0927 (627954x16A) - Frontier 27" Snow Thrower (2005) Discharge Chute Parts Diagram

27" Snow Thrower

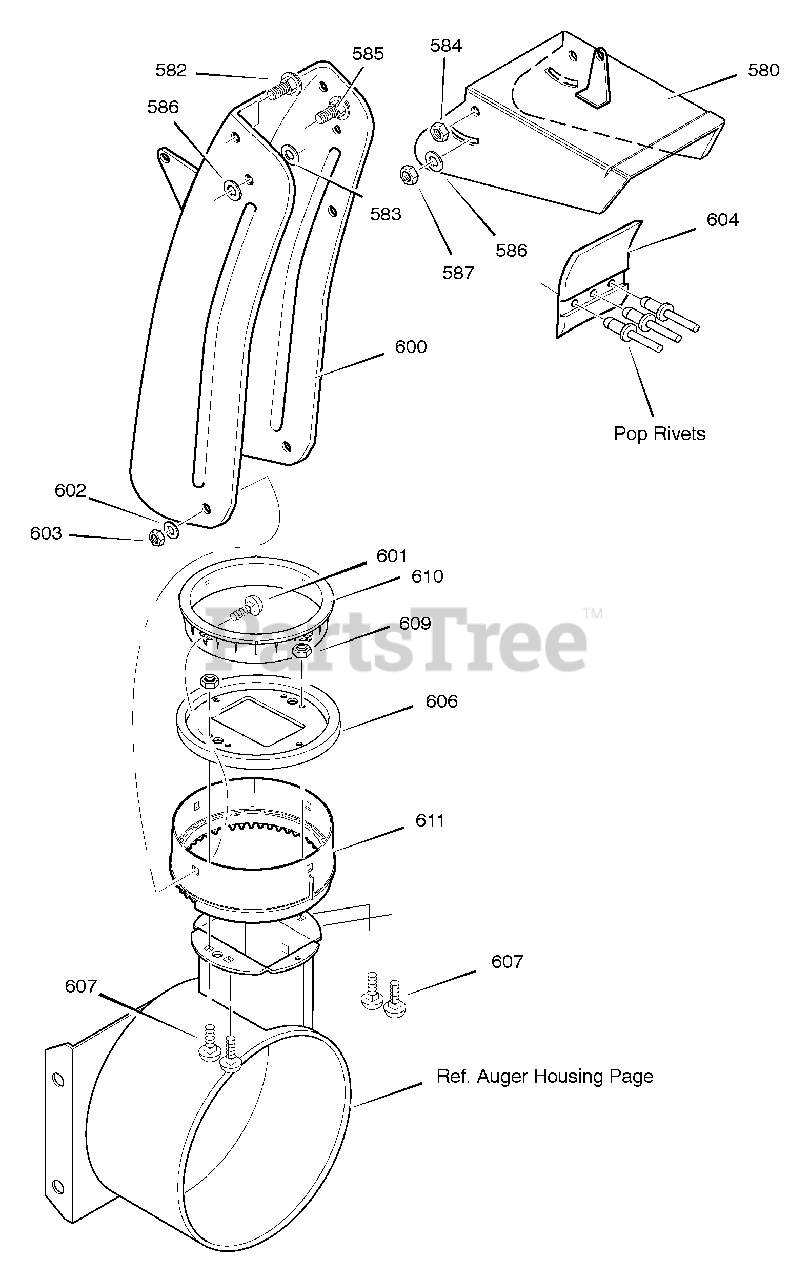

Discharge Chute Parts Diagram

  • Title
580

Murray MT761168E701MA

CHUTE, UPPER W/REMOTE
(Superseded to 761168E701MA)

$34.99

$

In Stock, only 1 left!

0

582

Murray MT578088MA

SCREW, 5/16-18 x 0.75
(Superseded to 578088MA)

$4.99

$

In Stock, only 1 left!

0

583

Murray MT12021MA

WASHER, PLASTIC
(Superseded to 12021MA)

$3.99

$

In Stock, only 4 left!

0

584

Murray MT71038MA

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

585

Murray MT578088MA

SCREW, 5/16-18 x 0.75
(Superseded to 578088MA)

$4.99

$

In Stock, only 1 left!

0

586

Murray MT6711MA

WASHER, PLASTIC
(Superseded to 6711MA)

$3.99

$

Usually ships in 2-12 days

0

587

Murray MT71038MA

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

600

Murray MT761169E701MA

CHUTE, LOWER W/REMOTE
(Superseded to 761169E701MA)

$250.99

$

Usually ships in 2-12 days

0

601

Murray MT2X100MA

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 704217)

$

$

Not available

602

Murray MT71071MA

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

603

Murray MT71038MA

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

604

Murray MT762322MA

FLAP
(Superseded to 762322MA)

$6.49

$

Usually ships in 2-12 days

0

606

Murray MT1501932YZMA

CHUTE COLLAR
(Superseded to 1501932YZMA)

$28.99

$

In Stock, only 1 left!

0

607

Murray MT02X101MA

BOLT
(Superseded to 703440)

$3.99

$

In Stock, Qty 10

0

609

Murray MT15X145MA

NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Murray MT337227MA

RETAINER, RING INNER
(Superseded to 337227MA)

$17.99

$

In Stock, Qty 20+

0

611

Murray MT1501282MA

RETAINER, RING OUTER
(Superseded to 1501282MA)

$26.99

$

In Stock, only 1 left!

0
