ST 0927 (627954x16A) - Frontier 27" Snow Thrower (2005) Chute Rod Parts Diagram

27" Snow Thrower

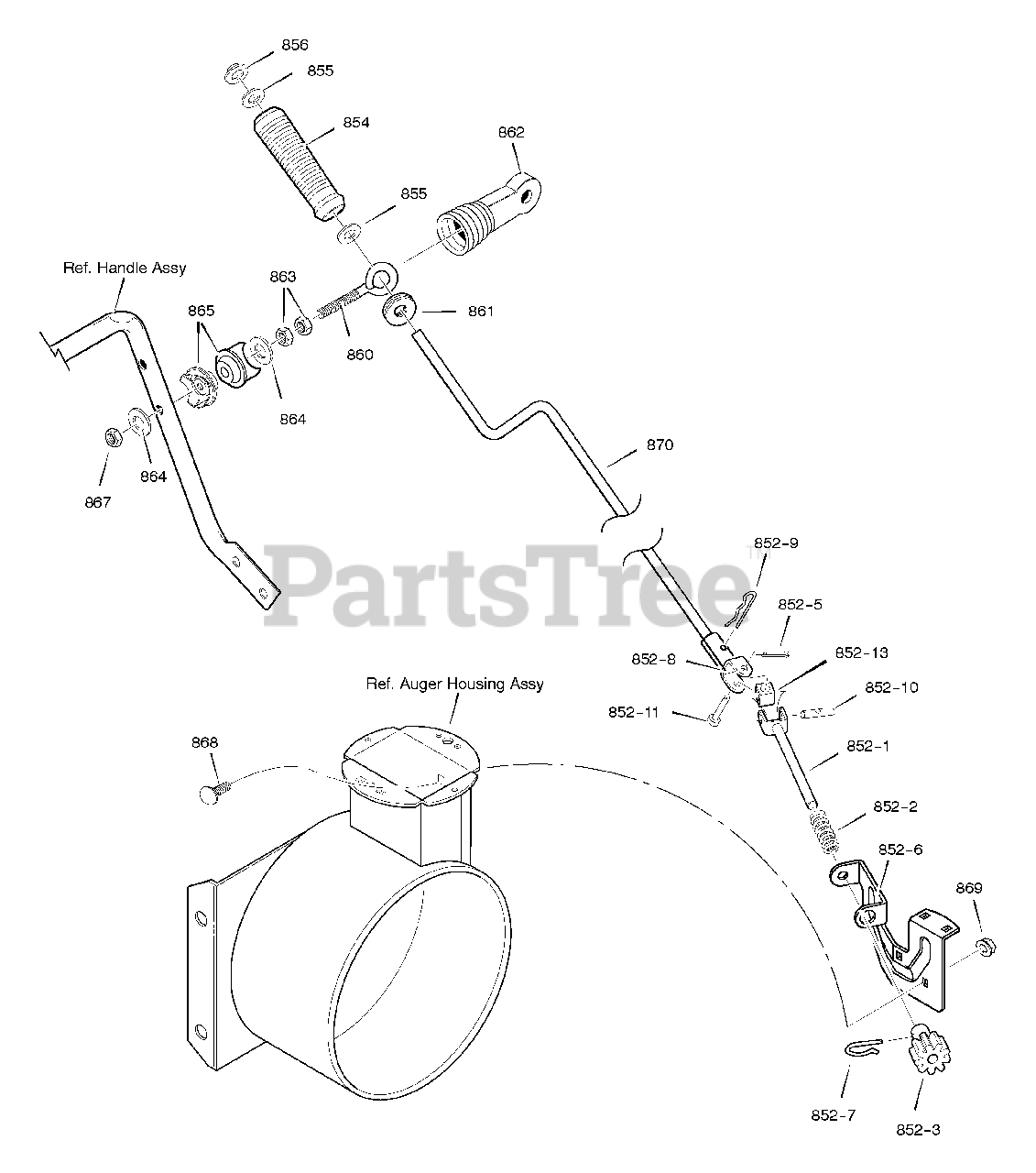

Chute Rod Parts Diagram

  • Title
852-1

Murray MT1501533YZMA

ASSEMBLY, YOKE & ROD
(Superseded to 1501533YZMA)

$11.99

$

Usually ships in 2-12 days

0

852-2

Murray MT164X37MA

SPRING
(Superseded to 164X37MA)

$9.49

$

In Stock, only 1 left!

0

852-3

Murray MT1501067MA

GEAR, CHUTE ROTATION 9T
(Superseded to 1501067MA)

$17.99

$

In Stock, only 2 left!

0

852-5

Murray MT579493MA

PIN, COTTER
(Superseded to 579493MA)

$4.49

$

Usually ships in 2-12 days

0

852-6

Murray MT1501306E701MA

BRACKET, CHUTE GEAR
(Superseded to 1501306E701MA)

$37.99

$

In Stock, only 1 left!

0

852-7

Murray MT1501293MA

PIN, HAIR
(Superseded to 1501293MA)

$4.99

$

Usually ships in 2-12 days

0

852-8

Murray MT1501075YZMA

ASSEMBLY, YOKE ADAPTER YZ
(Superseded to 1501075YZMA)

$10.99

$

In Stock, only 1 left!

0

852-9

Murray MT711682MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

852-10

Murray MT578060MA

PIN, UNIVERSAL JOINT
(Superseded to 578060MA)

$7.49

$

Usually ships in 2-12 days

0

852-11

Murray MT578309MA

PIN, CLEVIS
(Superseded to 578309MA)

$5.49

$

In Stock, Qty 7

0

852-13

Murray MT578063MA

HOUSING, UNIVERSAL
(Superseded to 578063MA)

$5.49

$

In Stock, only 3 left!

0

854

Murray MT307399MA

KNOB, SLEEVE
(Superseded to 307399MA)

$9.99

$

In Stock, only 1 left!

0

855

Murray MT309312MA

FLATWASHER
(Superseded to 309312MA)

$4.49

$

In Stock, only 3 left!

0

856

Murray MT73664MA

NUT, PUSH ON 3/8"
(Superseded to 73664MA)

$4.99

$

In Stock, only 3 left!

0

860

Murray MT1501456MA

EYE BOLT 3/8-16X6.50
(Superseded to 1501456MA)

$9.49

$

Usually ships in 2-12 days

0

861

Murray MT148MA

GROMMET, EYE BOLT
(Superseded to 148MA)

$

$

Not available

862

Murray MT1501457MA

BOOT, EYE BOLT
(Superseded to 1501457MA)

$8.99

$

Usually ships in 2-12 days

0

863

Murray MT71045MA

NUT, 3/8-16 HEXJAM
(Superseded to 71045MA)

$4.99

$

Usually ships in 2-12 days

0

864

Murray MT71072MA

FLATWASHER .406X.81X.066
(Superseded to 71072MA)

$4.49

$

In Stock, only 4 left!

0

865

Murray MT309344MA

ADAPTER, BOOT
(Superseded to 309344MA)

$

$

Not available

867

Murray MT71046MA

NUT, 3/8-16 HEXNYL
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

868

Murray MT02X101MA

BOLT, CARRIAGE 1/4-20 X 0.75
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

869

Murray MT15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 18

0

870

Murray MT1501074YZMA

CRANK, ASSY CHUTE
(Superseded to 703120)

$29.99

$

In Stock, only 2 left!

0
