ST 0927 (627904x16B) - Frontier 27" Snow Thrower (2004) Wheels Parts Diagram

27" Snow Thrower

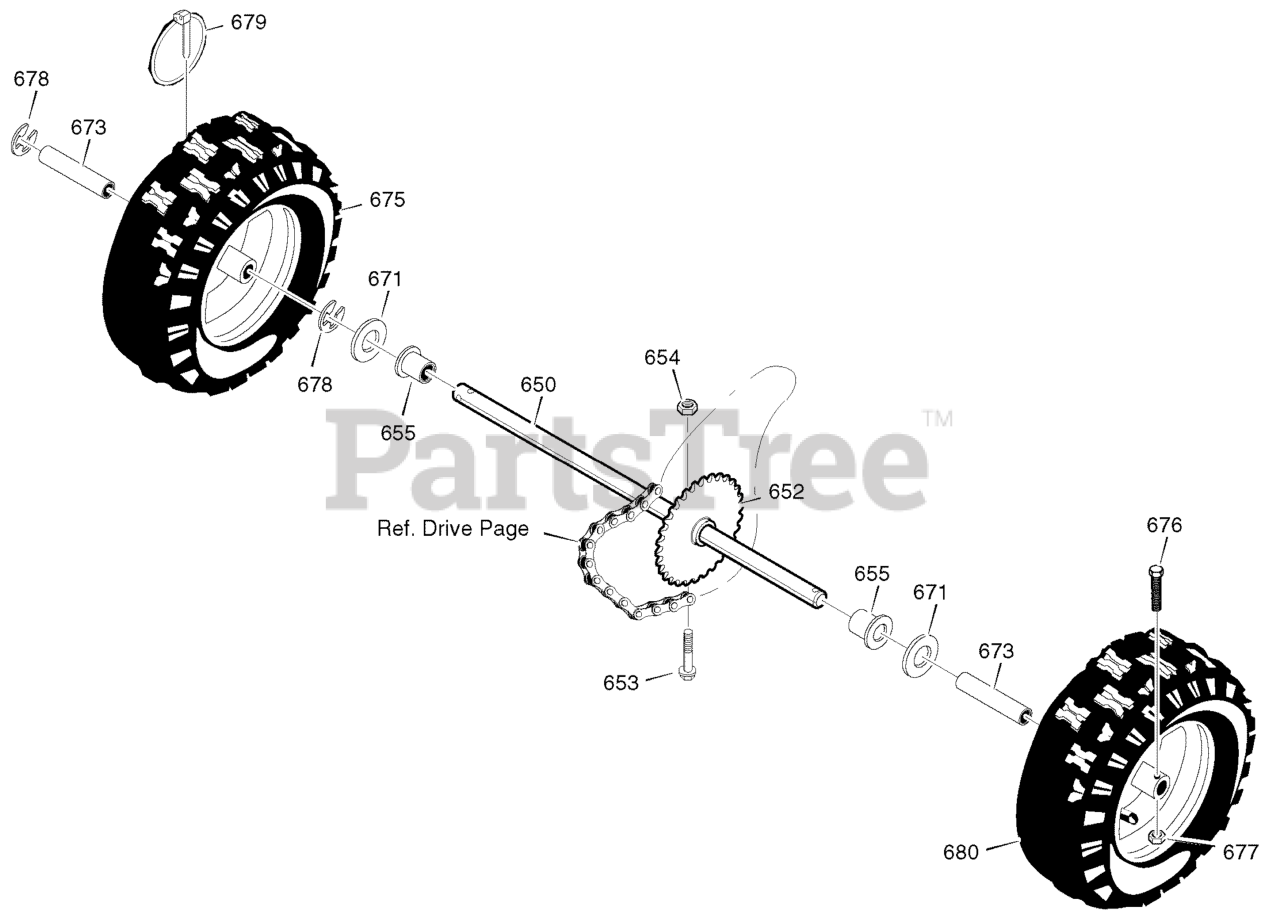

Wheels Parts Diagram

  • Title
650

Murray MT1501563

SHAFT, AXLE

$

$

Currently unavailable

652

Murray MT1501089

SPRKT & HUB

$

$

Currently unavailable

653

Murray MT01X193

SCREW, 1/4-20 x 1.75

$

$

Currently unavailable

654

Murray MT15X145

NUT, 1/4-20 HEX NYLOCK

$

$

Currently unavailable

655

Murray MT1501114

BEARING, AXLE

$

$

Currently unavailable

671

Murray MT712120

FLATWASHER

$

$

Currently unavailable

673

Murray MT1501138

BUSHING, WHEEL

$

$

Currently unavailable

675

Murray MT1501826

TIRE & RIM, RIGHT

$

$

Currently unavailable

676

Murray MT577015

SCREW, 1/4-20X1.75 HH

$

$

Currently unavailable

677

Murray MT15X145

NUT, 1/4-20 HEX NYLOCK

$

$

Currently unavailable

678

Murray MT239

RING, RET

$

$

Currently unavailable

679

Murray MT73842

PIN, KLIK .25 X 1.38 DIA

$

$

Currently unavailable

680

Murray MT1501827

TIRE & RIM, LEFT

$

$

Currently unavailable
