ST 0726 (626750x16C) - Frontier 26" Snow Thrower (2005) Drive Parts Diagram

26" Snow Thrower

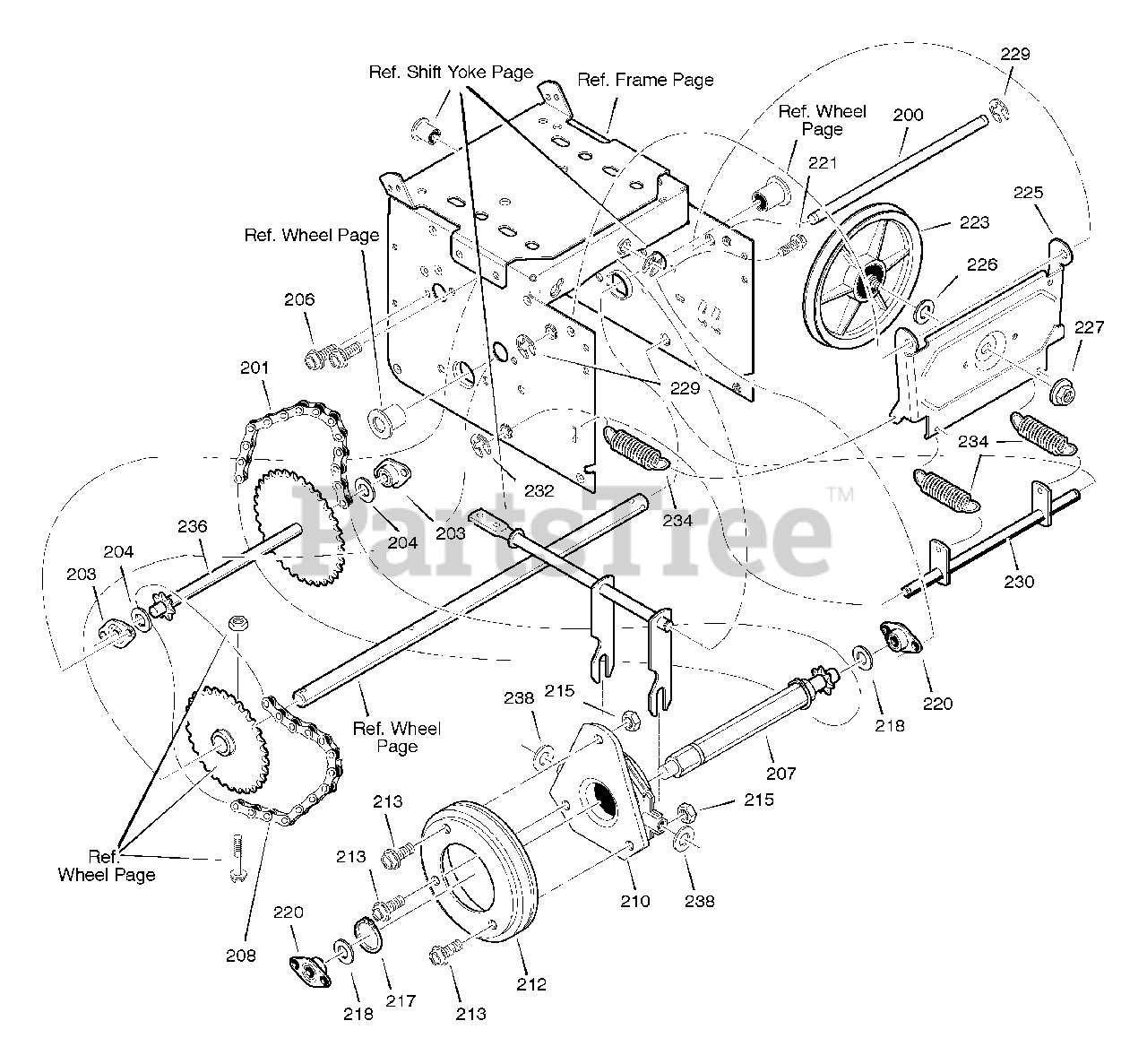

Drive Parts Diagram

  • Title
200

Murray MT1501092 YZ

LF AXLE, SWING PLATE YZ

$

$

Currently unavailable

201

Murray MT579851MA

CHAIN, ROLLER #420x19.00
(Superseded to 579851MA)

$21.99

$

In Stock, Qty 15

0

203

Murray MT334163MA

BEARING AND RETAINER, ASSY
(Superseded to 334163MA)

$11.99

$

In Stock, only 2 left!

0

204

Murray MT579858MA

WASHER
(Superseded to 579858MA)

$4.49

$

In Stock, Qty 20+

0

206

Murray MT25X020MA

SCREW, TAP 5/16-18 x 0.5
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

207

Murray MT1501100MA

ASSY, HEX SHAFT
(Superseded to 1501100MA)

$

$

Not available

208

Murray MT579868MA

CHAIN, ROLLER #420x18.00 LG
(Superseded to 579868MA)

$20.99

$

In Stock, Qty 17

0

210

Murray MT337029MA

BEARING, TRUNION CLUTCH R
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 5

0

212

Murray MT1501435MA

WHEEL, FRICTION DISC
(Superseded to 1501435MA)

$27.99

$

In Stock, Qty 20+

0

213

Murray MT001X38MA

BOLT
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

215

Murray MT303008

NUT, KEPS HEX 1/4-20

$

$

Currently unavailable

217

Murray MT579859

RING, RETEXT

$

$

Currently unavailable

218

Murray MT579858MA

WASHER
(Superseded to 579858MA)

$4.49

$

In Stock, Qty 20+

0

220

Murray MT334163MA

BEARING AND RETAINER, ASSY
(Superseded to 334163MA)

$11.99

$

In Stock, only 2 left!

0

221

Murray MT25X020MA

SCREW, TAP 5/16-18 x 0.5
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

223

Murray MT1501115MA

FRICTION PULLY
(Superseded to 1501115MA)

$

$

Not available

225

Murray MT1501057 YZ

LF PLATE, SWINGING YZ

$

$

Currently unavailable

226

Murray MT1501158MA

SPACER, FRICTION PULLEY
(Superseded to 1501158MA)

$4.99

$

In Stock, Qty 10

0

227

Murray MT15X114MA

NUT, FLANGE LOCK 3/8-24
(Superseded to 15X114MA)

$4.49

$

Usually ships in 2-12 days

0

229

Murray MT11X30MA

RETAINER, RING
(Superseded to 11X30MA)

$4.49

$

In Stock, Qty 11

0

230

Murray MT1502105 YZ

LF ASSY, SPRING LINK YZ

$

$

Currently unavailable

232

Murray MT11X30MA

RETAINER, RING
(Superseded to 11X30MA)

$4.49

$

In Stock, Qty 11

0

234

Murray MT165X112MA

SPRING, EXTENSION
(Superseded to 1736469YP)

$6.99

$

In Stock, Qty 20+

0

236

Murray MT1501090MA

SPROCKET 33/7
(Superseded to 1501237MA)

$80.99

$

In Stock, only 3 left!

0

238

Murray MT71074MA

WASHER, FLAT
(Superseded to 71074MA)

$

$

Not available
