ST 0726 (626750x16B) - Frontier 26" Snow Thrower (2004) Drive Parts Diagram

26" Snow Thrower

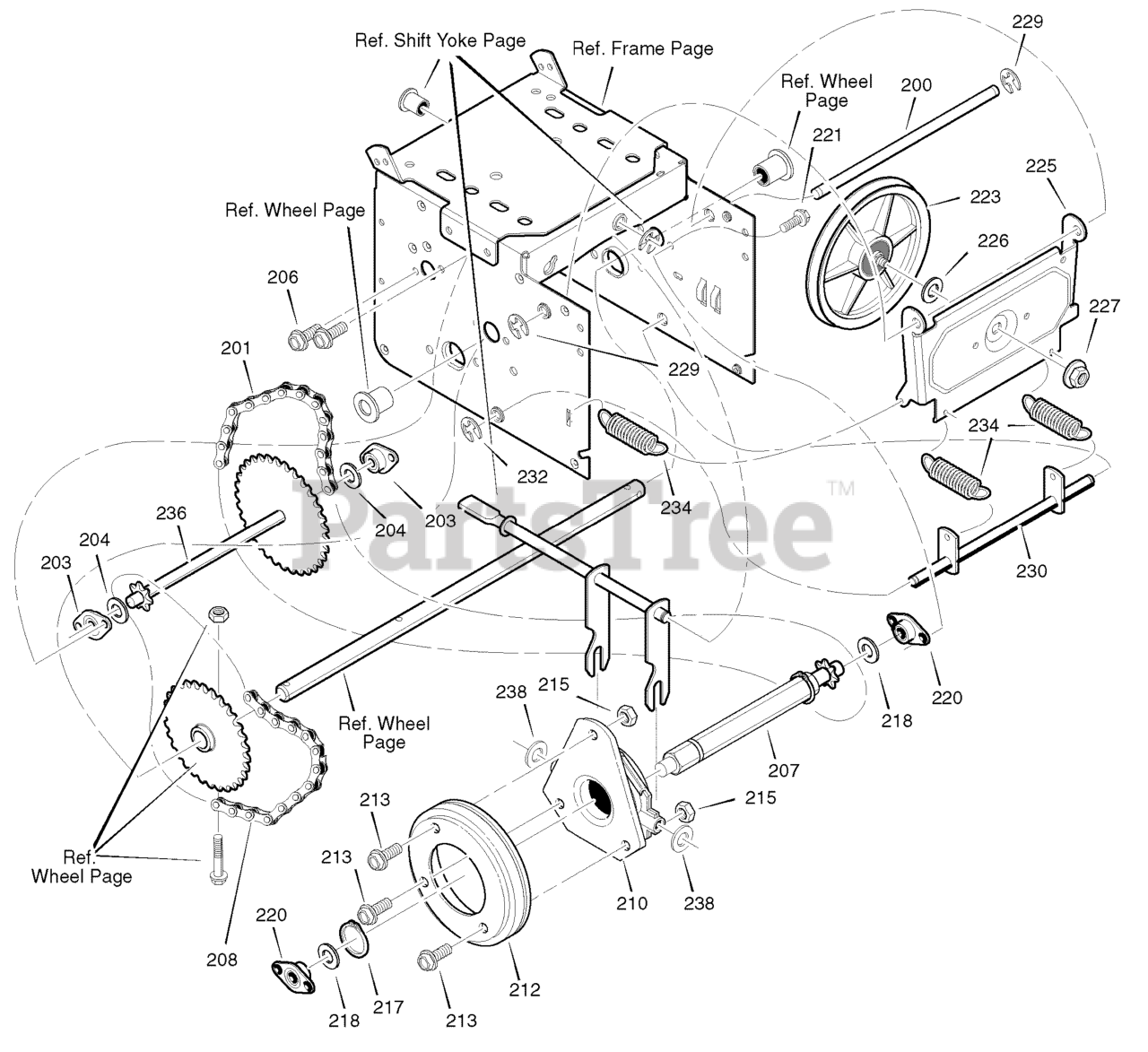

Drive Parts Diagram

  • Title
200

Murray MT1501092 YZ

LF AXLE, SWING PLATE YZ

$

$

Currently unavailable

201

Murray MT579851

CHAIN, ROLLER #420x19.00

$

$

Currently unavailable

203

Murray MT334163

BEARING AND RETAINER, ASSY

$

$

Currently unavailable

204

$

$

Currently unavailable

206

Murray MT25X020

SCREW, TAP 5/16-18 x 0.5

$

$

Currently unavailable

207

Murray MT1501100

ASSY, HEX SHAFT

$

$

Currently unavailable

208

Murray MT579868

CHAIN, ROLLER #420x18.00 LG

$

$

Currently unavailable

210

Murray MT337029

BEARING, TRUNION CLUTCH R

$

$

Currently unavailable

212

Murray MT1501435

WHEEL, FRICTION DISC

$

$

Currently unavailable

213

$

$

Currently unavailable

215

Murray MT303008

NUT, KEPS HEX 1/4-20

$

$

Currently unavailable

217

Murray MT579859

RING, RETEXT

$

$

Currently unavailable

218

$

$

Currently unavailable

220

Murray MT334163

BEARING AND RETAINER, ASSY

$

$

Currently unavailable

221

Murray MT25X020

SCREW, TAP 5/16-18 x 0.5

$

$

Currently unavailable

223

Murray MT1501115

FRICTION PULLY

$

$

Currently unavailable

225

Murray MT1501057 YZ

LF PLATE, SWINGING YZ

$

$

Currently unavailable

226

Murray MT1501158

SPACER, FRICTION PULLEY

$

$

Currently unavailable

227

Murray MT15X114

NUT, FLANGE LOCK 3/8-24

$

$

Currently unavailable

229

Murray MT11X30

RETAINER, RING

$

$

Currently unavailable

230

Murray MT1501107 YZ

LF ASSY, SPRING LINK YZ

$

$

Currently unavailable

232

Murray MT11X30

RETAINER, RING

$

$

Currently unavailable

234

Murray MT165X112

SPRING, EXTENSION

$

$

Currently unavailable

236

Murray MT1501090

SPROCKET 33/7

$

$

Currently unavailable

238

Murray MT71074

WASHER, FLAT

$

$

Currently unavailable
