ST 0726 (626750x16B) - Frontier 26" Snow Thrower (2004) Discharge Chute Parts Diagram

26" Snow Thrower

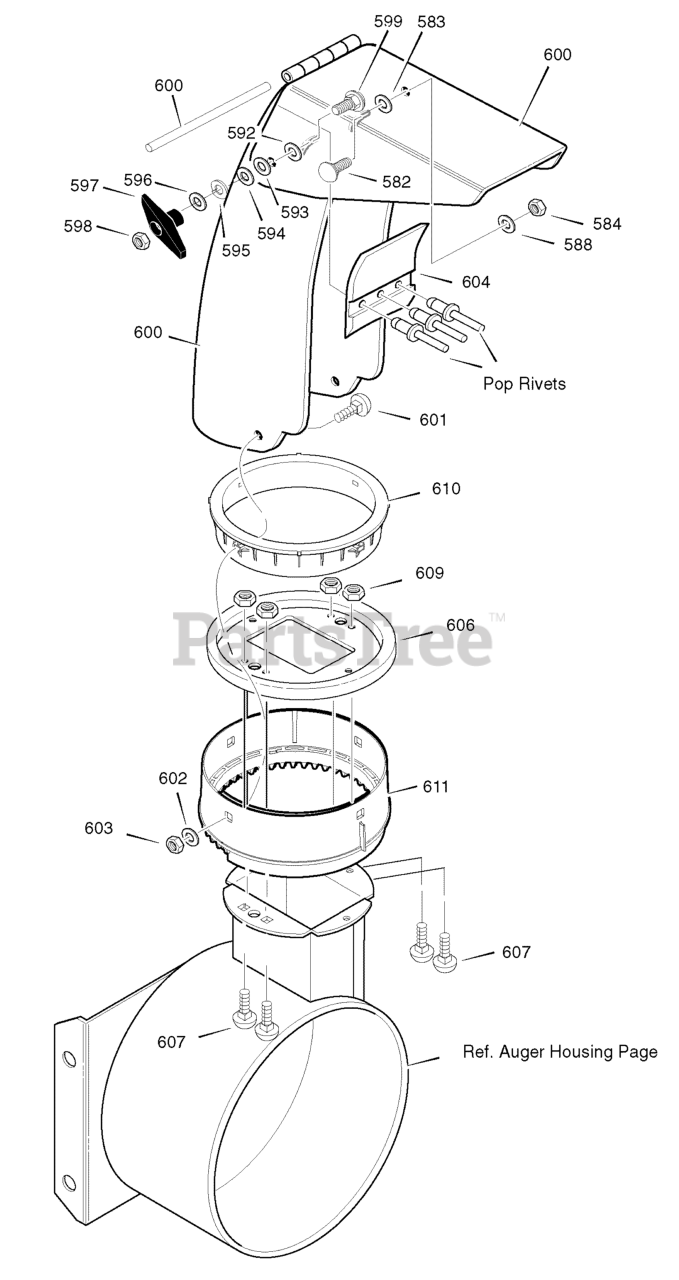

Discharge Chute Parts Diagram

  • Title
582

Murray MT340720

BOLT, CARRIAGE 5/16-18 X.75

$

$

Currently unavailable

583

Murray MT12021

WASHER, PLASTIC

$

$

Currently unavailable

584

Murray MT71038

NUT, 5/16-18 REGHEX NYLOCK

$

$

Currently unavailable

588

Murray MT6711

WASHER, PLASTIC

$

$

Currently unavailable

592

Murray MT12021

WASHER, PLASTIC

$

$

Currently unavailable

593

Murray MT6711

WASHER, PLASTIC

$

$

Currently unavailable

594

Murray MT71071

WASHER, FLAT

$

$

Currently unavailable

595

Murray MT71060

WASHER, SPLIT

$

$

Currently unavailable

596

Murray MT71071

WASHER, FLAT

$

$

Currently unavailable

597

Murray MT57171

KNOB, T 3.00

$

$

Currently unavailable

598

Murray MT15X144

NUT, 5/16-18 REGHEX

$

$

Currently unavailable

599

Murray MT002X97

BOLT, 5/16-18X1.00

$

$

Currently unavailable

600

Murray MT760990E701

CHUTE ASSEMBLY

$

$

Currently unavailable

601

Murray MT2X100

CARRIAGE BOLT, 5/16-18 x 1

$

$

Currently unavailable

602

Murray MT71071

WASHER, FLAT

$

$

Currently unavailable

603

Murray MT71038

NUT, 5/16-18 HEXNYL

$

$

Currently unavailable

604

Murray MT760268

FLAP, CHUTE

$

$

Currently unavailable

606

Murray MT1501932 YZ

CHUTE COLLAR

$

$

Currently unavailable

607

Murray MT02X101

SCREW, 1/4-20 X 0.75

$

$

Currently unavailable

609

Murray MT15X145

NUT, 1/4-20 HEX NYLOCK

$

$

Currently unavailable

610

Murray MT337227

RETAINER RING INNER

$

$

Currently unavailable

611

Murray MT1501282

RETAINER RING OUTER

$

$

Currently unavailable
