ST 0726 (626750x16B) - Frontier 26" Snow Thrower (2004) Chute Rod Parts Diagram

26" Snow Thrower

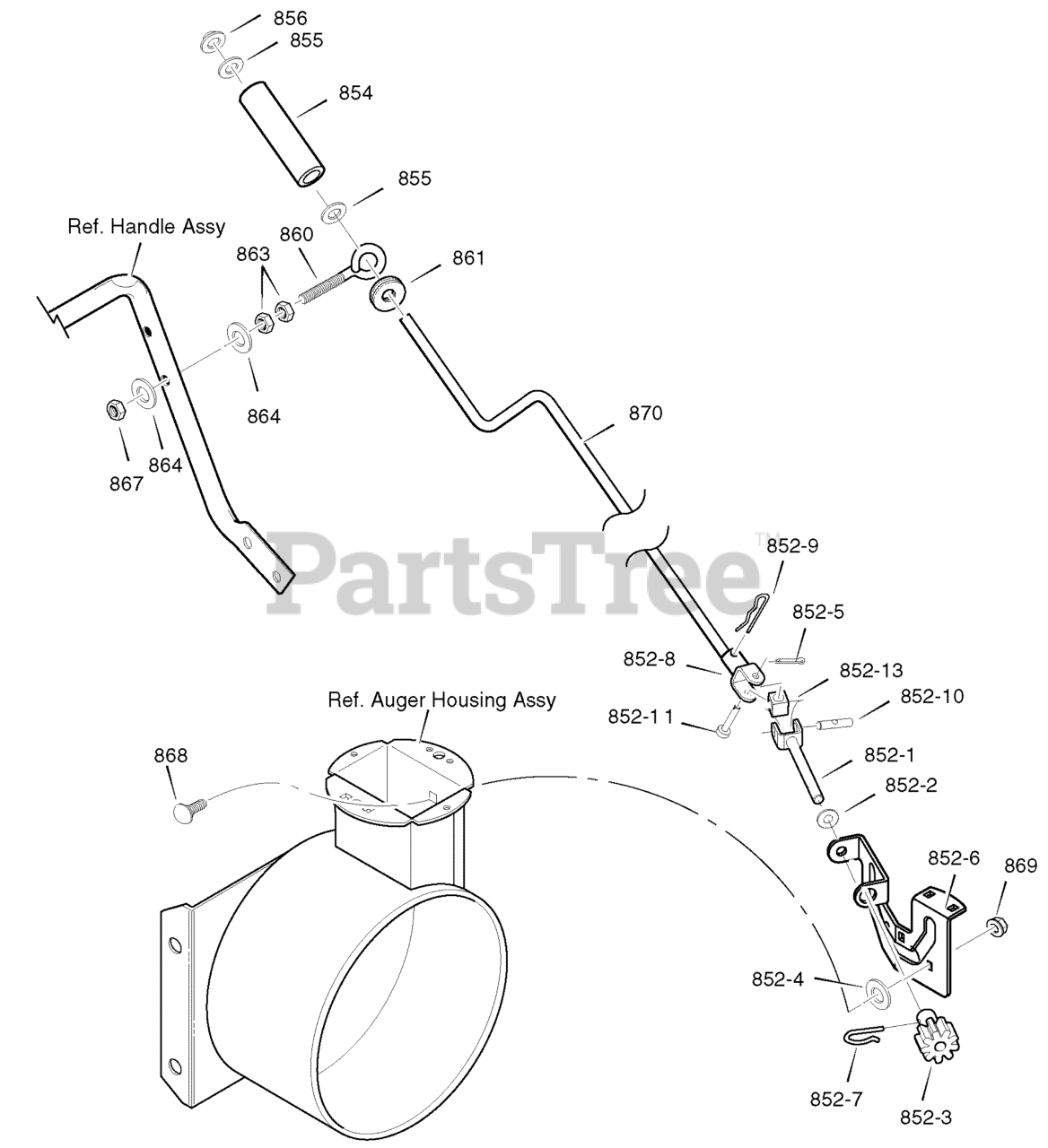

Chute Rod Parts Diagram

  • Title
852-1

Murray MT1501309 YZ

ASSEMBLY, YOKE & ROD

$

$

Currently unavailable

852-2

Murray MT313431

WASHER, CURVED SPRING

$

$

Currently unavailable

852-3

Murray MT1501067

GEAR, CHUTE ROTATION 9T

$

$

Currently unavailable

852-4

$

$

Currently unavailable

852-5

Murray MT579493

PIN, COTTER

$

$

Currently unavailable

852-6

Murray MT1501306E701

BRACKET, GEAR MOUNT

$

$

Currently unavailable

852-7

Murray MT1501293

PIN, HAIR

$

$

Currently unavailable

852-8

Murray MT1501075 YZ

ASSEMBLY, YOKE ADAPTER YZ

$

$

Currently unavailable

852-9

Murray MT711682

PIN, HAIR

$

$

Currently unavailable

852-10

Murray MT578060

PIN, UNIVERSAL JOINT

$

$

Currently unavailable

852-11

Murray MT578309

PIN, CLEVIS

$

$

Currently unavailable

852-13

Murray MT578063

HOUSING, UNIVERSAL

$

$

Currently unavailable

854

Murray MT51443

KNOB, SLEEVE

$

$

Currently unavailable

855

Murray MT309312

FLATWASHER

$

$

Currently unavailable

856

Murray MT73664

NUT, PUSH ON 3/8"

$

$

Currently unavailable

860

Murray MT1501456

EYE BOLT 3/8-16X6.50

$

$

Currently unavailable

861

Murray MT148

GROMMET, EYE BOLT

$

$

Currently unavailable

863

Murray MT71045

NUT, 3/8-16 HEXJAM

$

$

Currently unavailable

864

Murray MT71072

FLATWASHER .406X.81X.066

$

$

Currently unavailable

867

Murray MT71046

NUT, 3/8-16 HEXNYL

$

$

Currently unavailable

868

Murray MT002X98

BOLT, CARRIAGE 1/4-20 X 1.00

$

$

Currently unavailable

869

$

$

Currently unavailable

870

Murray MT1501074 YZ

CRANK, ASSY CHUTE

$

$

Currently unavailable
