ST 0524 (624504x16B) - Frontier 24" Snow Thrower (2004) Handle Parts Diagram

24" Snow Thrower

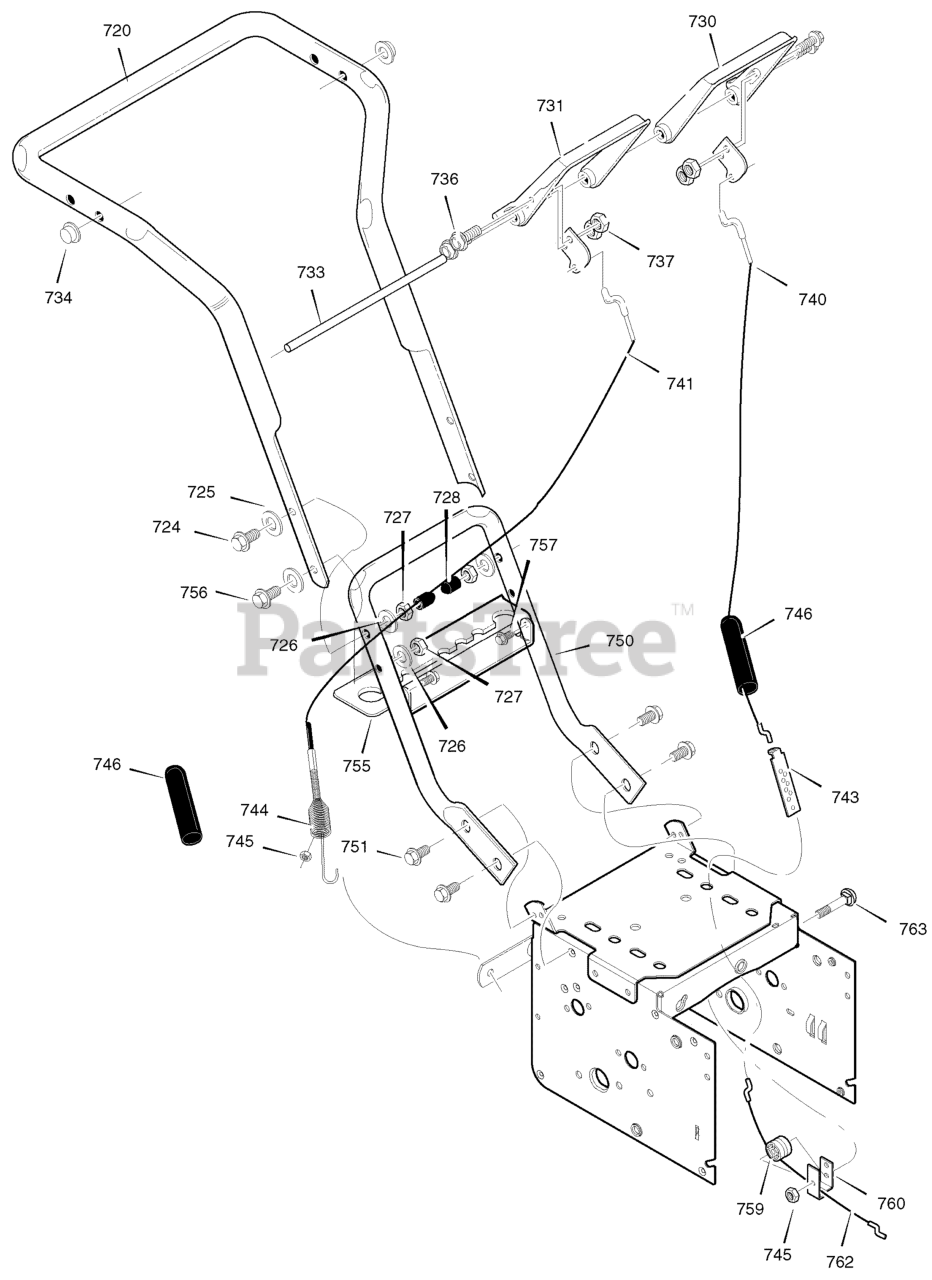

Handle Parts Diagram

  • Title
720

$

$

Currently unavailable

724

$

$

Currently unavailable

725

Murray MT71071

WASHER, FLAT

$

$

Currently unavailable

726

Murray MT71060

WASHER, SPLIT

$

$

Currently unavailable

727

$

$

Currently unavailable

728

Murray MT11261

PLASTIC-ST OP

$

$

Currently unavailable

730

Murray MT302557

CLUTCH, LEFT HANDLE CONTROL

$

$

Currently unavailable

731

Murray MT302558

CLUTCH, RIGHT HANDLE CONTROL

$

$

Currently unavailable

733

Murray MT12621 YZ

ROD, PIVOT HANDLE

$

$

Currently unavailable

734

Murray MT3535

PUSH ON CAP

$

$

Currently unavailable

735

Murray MT302620E701

PLATE, CABLE PIVOT

$

$

Currently unavailable

736

$

$

Currently unavailable

737

$

$

Currently unavailable

740

Murray MT1501123

CABLE, CLUTCH

$

$

Currently unavailable

741

Murray MT761589

CABLE, AUGER CLUTCH

$

$

Currently unavailable

743

Murray MT313441

BRKT, CABLE ADJUST

$

$

Currently unavailable

744

Murray MT1673

SPRING, AUGER CLUTCH

$

$

Currently unavailable

745

Murray MT15X145

LOCKNUT

$

$

Currently unavailable

746

Murray MT308146

BOOT, CLUTCH SPRING

$

$

Currently unavailable

755

Murray MT337407E701

BRACKET, GEAR SELECTOR

$

$

Currently unavailable

757

Murray MT310169

SCREW, 1/4-20 x 0.63

$

$

Currently unavailable

750

Murray MT339541E701

HANDLE, LOWER

$

$

Currently unavailable

751

Murray MT25X021

SCREW 5/16-18 x 0.75

$

$

Currently unavailable

752

$

$

Currently unavailable

756

Murray MT6751

SCREW 5/16-18 x 2

$

$

Currently unavailable

759

Murray MT579860

SPOOL-CABLE, AUGER CLUTCH

$

$

Currently unavailable

760

Murray MT1501059 YZ

BRACKET, CABLE SPOOL YZ

$

$

Currently unavailable

762

Murray MT1501122

CABLE, LOWER DRIVE 12"

$

$

Currently unavailable

763

Murray MT001798

BOLT, HEX 1/4-20 x 1.50 YZ

$

$

Currently unavailable
