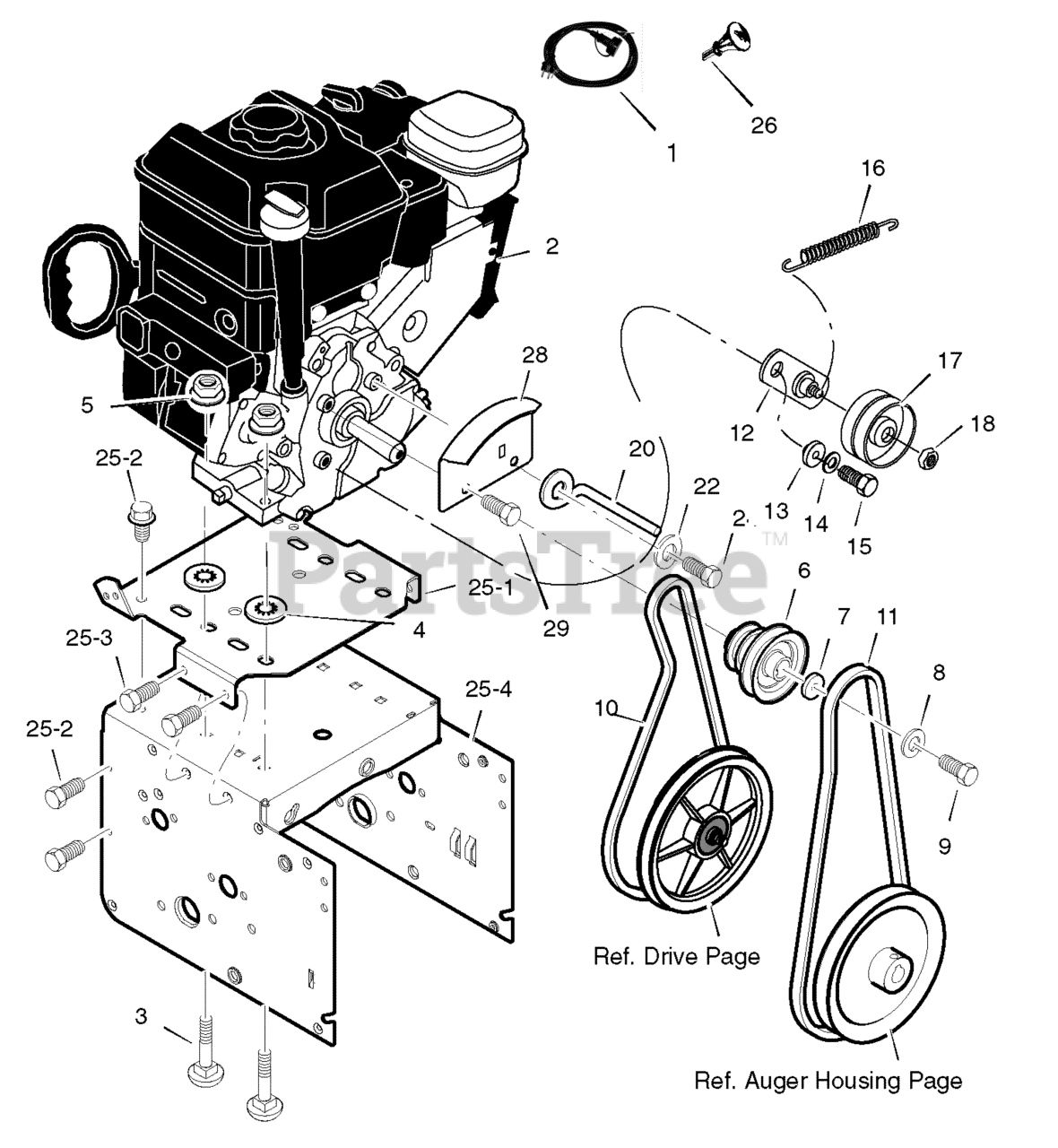

ST 0524 (624504x16B) - Frontier 24" Snow Thrower (2004) Engine Parts Diagram

24" Snow Thrower

Engine Parts Diagram

  • Title
1

Murray MT6219

CORD, STARTER

$

$

Currently unavailable

2

ENGINE

$

$

Not available

3

Murray MT002X97

BOLT, CARRIAGE 5/16-18

$

$

Currently unavailable

4

Murray MT028X76

RETAINER, PUSH

$

$

Currently unavailable

5

Murray MT710026

NUT 5/16-18

$

$

Currently unavailable

6

Murray MT1501109

PULLEY, ENGINE

$

$

Currently unavailable

7

$

$

Currently unavailable

8

Murray MT71063

WASHER .38ID

$

$

Currently unavailable

9

Murray MT71015

SCREW, 3/8-24 x 1.00

$

$

Currently unavailable

10

Murray MT579932

BELT, DRIVE V 3L

$

$

Currently unavailable

11

Murray MT37X120

BELT, AUGER V 4L

$

$

Currently unavailable

12

Murray MT1501112 YZ

BRACKET ASSEMBLY, IDLER

$

$

Currently unavailable

13

Murray MT1501065

BUSHING, IDLER BRACKET

$

$

Currently unavailable

14

Murray MT71060

WASHER, SPLIT

$

$

Currently unavailable

15

Murray MT710097

SCREW 5/16-24 X 0.75

$

$

Currently unavailable

16

Murray MT53704

SPRING, IDLER TRACTION DRIVE

$

$

Currently unavailable

17

Murray MT50793

PULLEY, IDLER

$

$

Currently unavailable

18

Murray MT590

NUT, JAM 3/8-16

$

$

Currently unavailable

20

Murray MT1501201

GUIDE, BELT

$

$

Currently unavailable

22

Murray MT71060

WASHER .31X.58X.08

$

$

Currently unavailable

24

Murray MT710097

SCREW, 5/16-24 x 0.75

$

$

Currently unavailable

25

FRAME, MOTORBOX (5-11HP)

$

$

Not available

25-1

Murray MT1501062E511

PLATE, ENGINE MOUNT

$

$

Currently unavailable

25-2

Murray MT310169

SCREW, TAP 1/4-20 X .63

$

$

Currently unavailable

25-3

Murray MT25X020

SCREW, TAP 5/16-18 X .50

$

$

Currently unavailable

25-4

Murray MT1501049E511

FRAME, MOTOR BOX

$

$

Currently unavailable

--

Murray MTF-0410100L

OWNER'S MANUAL

$

$

Currently unavailable

26

Murray MT1501214

KEY, BRIGGS ENGINE

$

$

Currently unavailable

28

Murray MT15019947

SHEILD, BRIGGS ENGINE

$

$

Currently unavailable
