ST 0522 M (622593x16NA) - Frontier 22" Snow Thrower (2007) Body Covering Parts Diagram

22" Snow Thrower

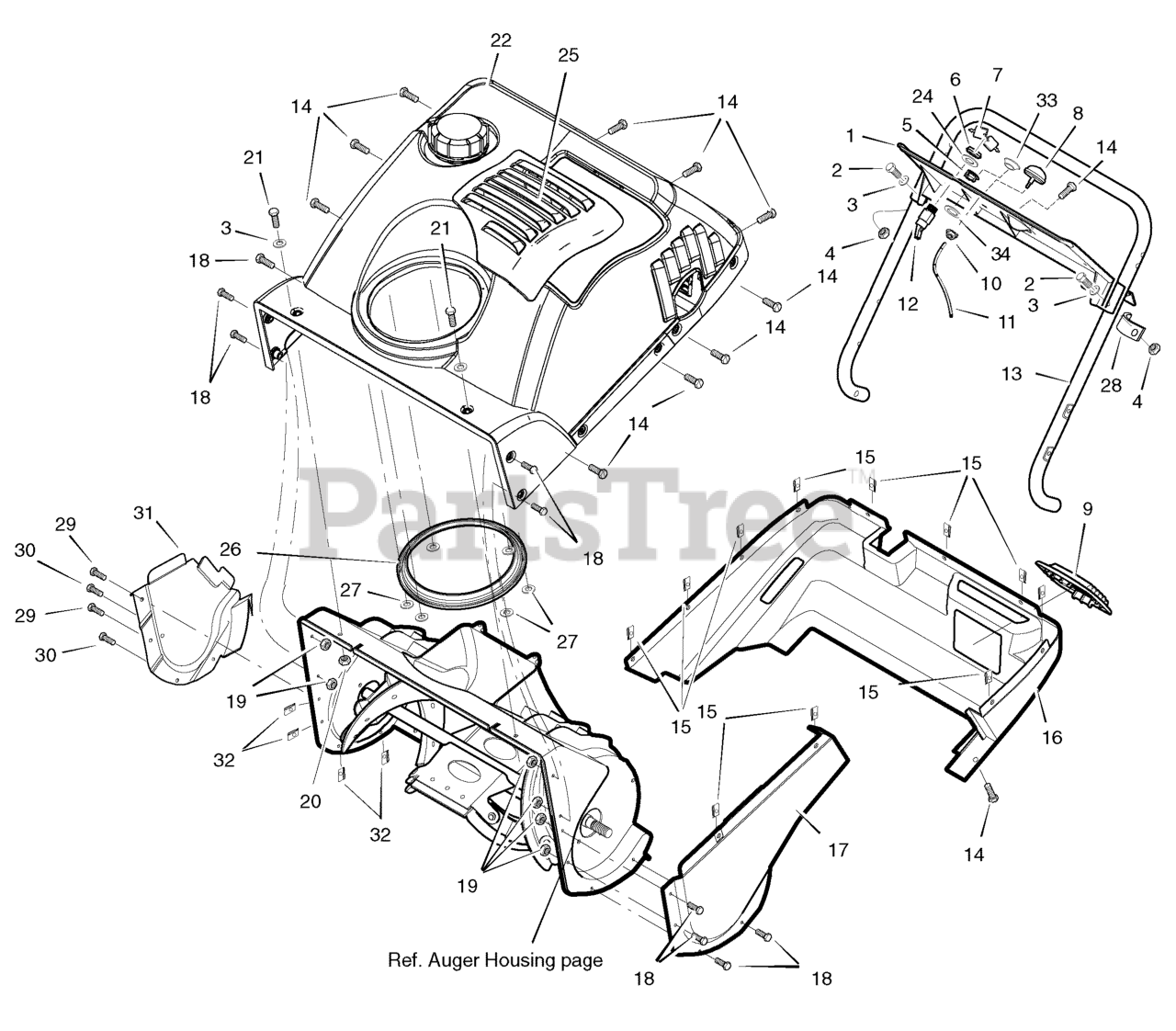

Body Covering Parts Diagram

  • Title

1

Murray MT1740006MA

PANEL, Control

$

$

Currently unavailable

2

Murray MT313674MA

SCREW, 1/4 - 20 x 1-1/4

$

$

Currently unavailable

3

Murray MT71067MA

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

4

Murray MT15X143MA

NUT, 1/4 - 20
(Superseded to 15X143MA)

$4.99

$

In Stock, Qty 13

0

5

Murray MT1501874MA

BUSHING, Chute Crank

$

$

Currently unavailable

6

Murray MT300193MA

NUT, 5/8 - 32

$

$

Currently unavailable

7

Murray MT49643

KEYS & RING, Starter

$

$

Currently unavailable

8

Murray MT1501723MA

BULB, Fuel Primer

$

$

Currently unavailable

9

Murray MT1501878MA

COVER, Access

$

$

Currently unavailable

10

Murray MT271172MA

NUT, Keps 1/4 - 20
(Superseded to 271172MA)

$4.49

$

Usually ships in 2-12 days

0

11

Murray MT335507MA

HOSE, Primer, 9.5"

$

$

Currently unavailable

12

Murray MT56992MA

SWITCH, Ignition
(Superseded to 56992MA)

$14.99

$

Usually ships in 2-12 days

0

13

Murray MT1501860E701MA

HANDLE, Lower

$

$

Currently unavailable

14

Murray MT1740053MA

SCREW, 1/4 - 14 x 3/4

$

$

Currently unavailable

15

Murray MT578109MA

NUT, 1/4 - 10

$

$

Currently unavailable

16

Murray MT1740004MA

COVER, Bottom

$

$

Currently unavailable

17

Murray MT1740005MA

COVER, Belt

$

$

Currently unavailable

18

Murray MT1740051MA

SCREW, 10 - 24 x 1/2

$

$

Currently unavailable

19

Murray MT1740052MA

NUT, Hex Center Lock, 10 - 24

$

$

Currently unavailable

20

Murray MT1740056MA

LOCKNUT, Hex 1/4 - 20

$

$

Currently unavailable

21

Murray MT1740425MA

SCREW, 1/4 - 20 x 9/10

$

$

Currently unavailable

22

Murray MT1740433MA

COVER, Top Assembly

$

$

Currently unavailable

24

Murray MT313683MA

WASHER

$

$

Currently unavailable

25

Murray MT1740371MA

COVER, Oil Access

$

$

Currently unavailable

26

Murray MT1740020MA

Gasket, Chute Ring

$

$

Currently unavailable

27

Murray MT028X85MA

NUT, Push Pal

$

$

Currently unavailable

28

Murray MT583435MA

CLIP, Cable

$

$

Currently unavailable

29

Murray MT1740426

SCREW, 10-24 x .72

$

$

Currently unavailable

30

Murray MT1740427

SCREW, 10-24 x .95

$

$

Currently unavailable

31

Murray MT1740071

COVER, R.H. Auger Housing

$

$

Currently unavailable

32

Murray MT1740407

J-NUT, 1/4-10

$

$

Currently unavailable

33

Murray MT1502074MA

GROMMET, Rope

$

$

Currently unavailable

34

Murray MT1502075

WASHER, Rope Grommet

$

$

Currently unavailable
