ST 0522 E (622594x16NB) - Frontier 22" Snow Thrower (2007) Chute System Parts Diagram

22" Snow Thrower

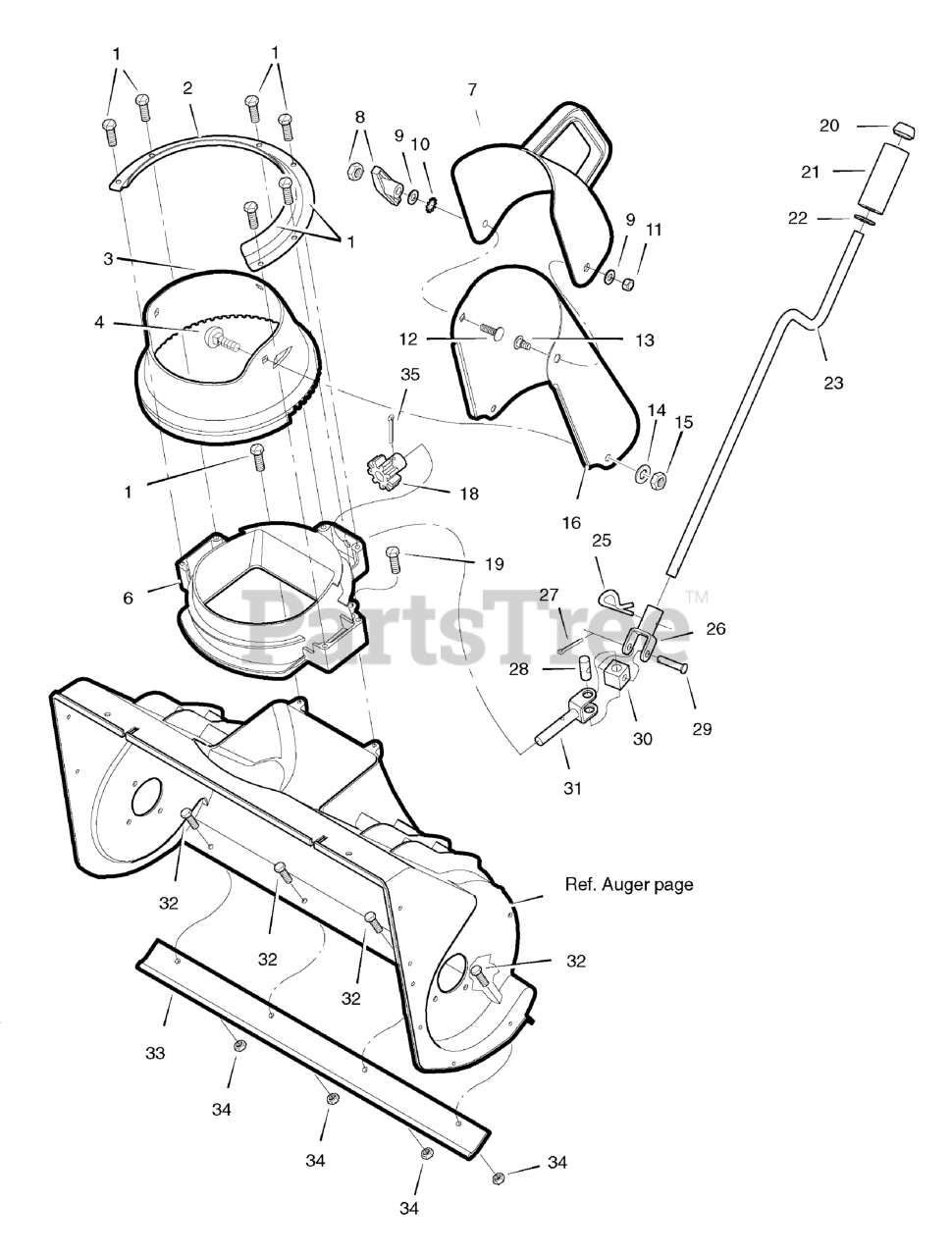

Chute System Parts Diagram

  • Title

1

Murray MT313685MA

SCREW, 1/4 - 14
(Superseded to 313685MA)

$5.49

$

Usually ships in 2-12 days

0

2

Murray MT1502131MA

RETAINER, Chute Ring

$

$

Currently unavailable

3

Murray MT1502132MA

RING, Chute

$

$

Currently unavailable

4

Murray MT340720MA

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

6

Murray MT1501848MA

NECK, Chute

$

$

Currently unavailable

7

Murray MT1501918MA

CHUTE, 22" Upper

$

$

Currently unavailable

8

Murray MT57171MA

KNOB

$

$

Currently unavailable

9

Murray MT71071MA

WASHER
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

10

Murray MT019X35MA

LOCKWASHER, Shakeproof

$

$

Currently unavailable

11

Murray MT71391MA

LOCKNUT, Hex, 5/16 - 18
(Superseded to 71391MA)

$4.49

$

Usually ships in 2-12 days

0

12

Murray MT002X97MA

BOLT, Carriage, 5/16 - 18
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

13

Murray MT1501910MA

BOLT, Upper Chute

$

$

Currently unavailable

14

Murray MT71072MA

WASHER
(Superseded to 71072MA)

$4.49

$

In Stock, only 4 left!

0

15

Murray MT71038MA

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

16

Murray MT1501909MA

CHUTE, Lower

$

$

Currently unavailable

18

Murray MT1501067MA

GEAR, 9-Tooth
(Superseded to 1501067MA)

$17.99

$

In Stock, only 2 left!

0

19

Murray MT313685MA

SCREW, 1/4 - 14 x 3/4
(Superseded to 313685MA)

$5.49

$

Usually ships in 2-12 days

0

20

Murray MT331532MA

NUT, Push
(Superseded to 331532MA)

$4.99

$

Usually ships in 2-12 days

0

21

Murray MT57082MA

KNOB, Sleeve

$

$

Currently unavailable

22

Murray MT71072MA

WASHER
(Superseded to 71072MA)

$4.49

$

In Stock, only 4 left!

0

23

Murray MT1501870MA

CRANK, Chute Rotation

$

$

Currently unavailable

25

Murray MT1501293MA

PIN, Hair
(Superseded to 1501293MA)

$4.99

$

Usually ships in 2-12 days

0

26

Murray MT1501075YZMA

YOKE ASSEMBLY, Adapter
(Superseded to 1501075YZMA)

$10.99

$

In Stock, only 1 left!

0

27

Murray MT579493MA

PIN, Cotter
(Superseded to 579493MA)

$4.49

$

In Stock, only 1 left!

0

28

Murray MT578060MA

PIN, Universal Joint
(Superseded to 578060MA)

$7.49

$

Usually ships in 2-12 days

0

29

Murray MT578309MA

PIN, Clevis
(Superseded to 578309MA)

$5.49

$

In Stock, Qty 8

0

30

Murray MT578063MA

HOUSING, Universal
(Superseded to 578063MA)

$5.49

$

In Stock, only 4 left!

0

31

Murray MT1501873MA

ROD, Lower Crank

$

$

Currently unavailable

32

Murray MT302628MA

SCREW, 1/4 - 20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

33

Murray MT1501863MA

BLADE, Scraper

$

$

Currently unavailable

34

Murray MT15X143MA

LOCKNUT, Hex, 1/4 - 20
(Superseded to 15X143MA)

$4.99

$

In Stock, Qty 13

0

35

Murray MT71082MA

PIN, Cotter

$

$

Currently unavailable
