ST 0522 (622594x16NA) - Frontier 22" Snow Thrower (2006) Electric Starter Parts Diagram

22" Snow Thrower

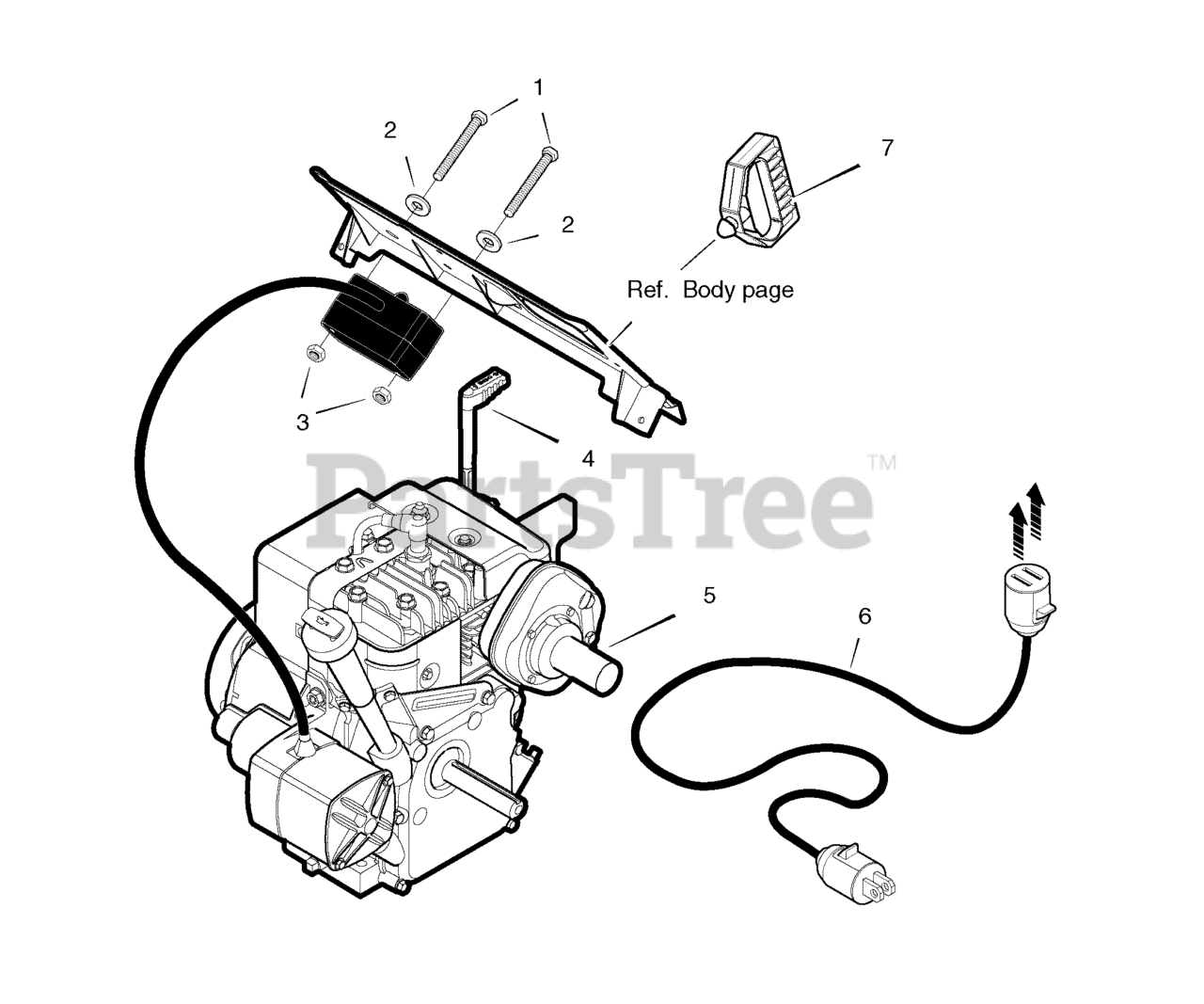

Electric Starter Parts Diagram

  • Title

1

Murray MT311633MA

SCREW, # 8 - 32 x 3

$

$

Currently unavailable

2

Murray MT414106MA

WASHER

$

$

Currently unavailable

3

Murray MT271163MA

NUT, Keps

$

$

Currently unavailable

4

Murray MT791534

LEVER, Choke *

$

$

Currently unavailable

5-1

Murray MT699565

Muffler *

$

$

Currently unavailable

5-2

Murray MT691880

GASKET, Muffler *

$

$

Currently unavailable

5-3

Murray MT1502004MA

Bolt, Muffler *

$

$

Currently unavailable

5-4

Murray MT71060MA

WASHER, Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5-5

Murray MT71037MA

NUT, Hex, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5-6

Murray MT001X81MA

BOLT, Hex, 5/16 - 18

$

$

Currently unavailable

6

Murray MT6219MA

CORD, Extension
(Superseded to 6219MA)

$40.99

$

In Stock, only 2 left!

0

7

Murray MT1501724MA

GRIP, Mitten

$

$

Currently unavailable
