ST 0522 (622594x16NA) - Frontier 22" Snow Thrower (2006) Body Covering Parts Diagram

22" Snow Thrower

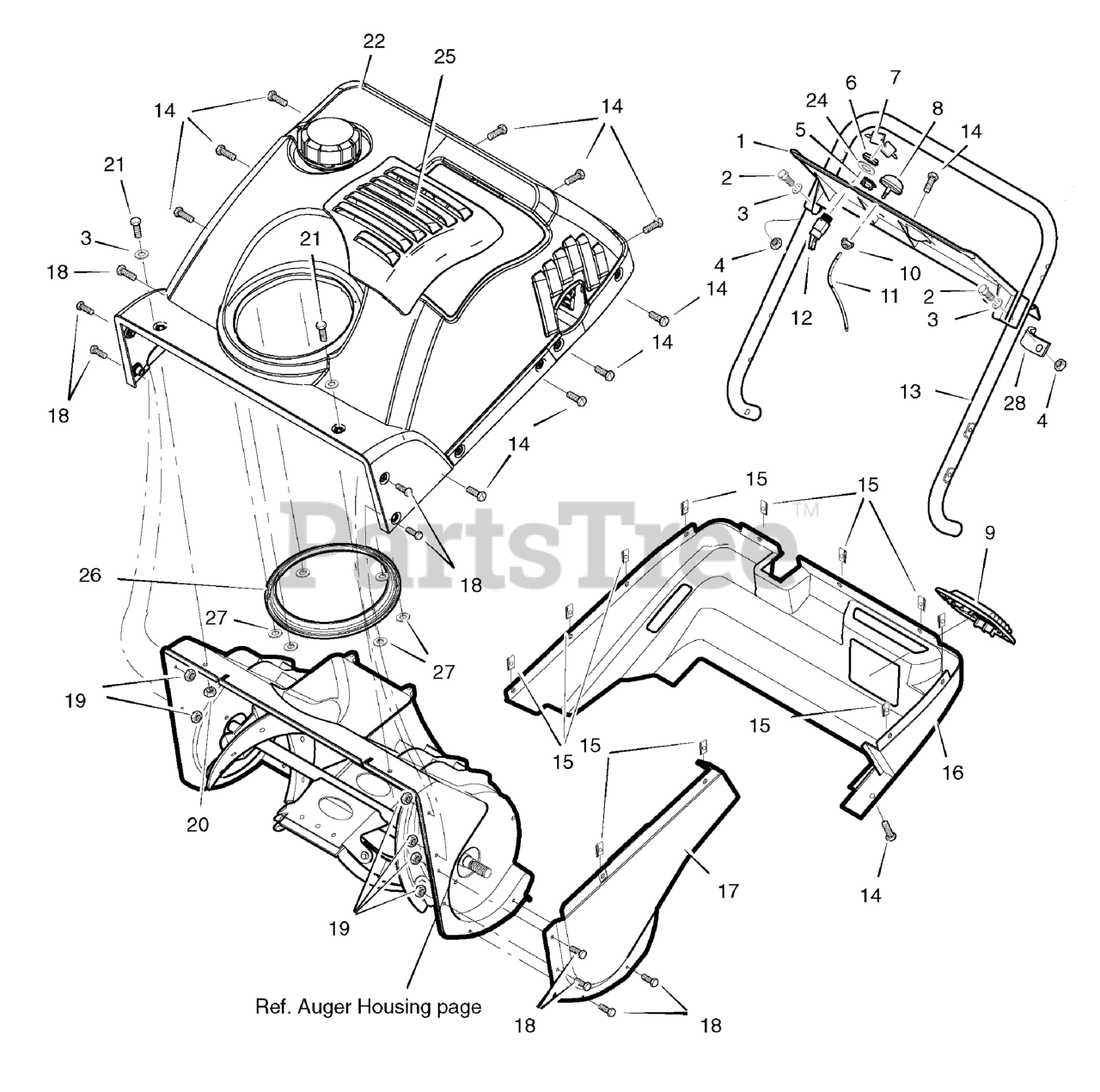

Body Covering Parts Diagram

  • Title
1

Murray MT1740006MA

PANEL, Control

$

$

Currently unavailable

2

Murray MT313674MA

SCREW, 1/4 - 20 x 1-1/4

$

$

Currently unavailable

3

Murray MT71067MA

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

4

Murray MT73826MA

NUT, 1/4 - 20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

5

Murray MT1501874MA

BUSHING, Chute Crank

$

$

Currently unavailable

6

Murray MT300193MA

NUT, 5/8 - 32

$

$

Currently unavailable

7

Murray MT691959

KEYS & RING, Starter

$

$

Currently unavailable

8

Murray 394281S

BULB, Fuel Primer

$16.99

$

Usually ships in 2-12 days

0

9

Murray MT1740002MA

PANEL, Access

$

$

Currently unavailable

10

Murray MT271172MA

NUT, Keps 1/4 - 20
(Superseded to 271172MA)

$4.49

$

Usually ships in 2-12 days

0

11

Murray MT335507MA

HOSE, Primer, 9.5"

$

$

Currently unavailable

12

Murray MT56992MA

SWITCH, Ignition
(Superseded to 56992MA)

$14.99

$

Usually ships in 2-12 days

0

13

Murray MT1501860E701MA

HANDLE, Lower

$

$

Currently unavailable

14

Murray MT313685MA

SCREW, 1/4 - 14 x 3/4
(Superseded to 313685MA)

$5.49

$

Usually ships in 2-12 days

0

15

Murray MT578109MA

NUT, 1/4 - 10

$

$

Currently unavailable

16

Murray MT1740004MA

COVER, Bottom

$

$

Currently unavailable

17

Murray MT1740005MA

COVER, Belt

$

$

Currently unavailable

18

Murray MT1740051MA

SCREW, 10 - 24 x 1/2

$

$

Currently unavailable

19

Murray MT1740052MA

NUT, Hex Center Lock, 10 - 24

$

$

Currently unavailable

20

Murray MT15X143MA

LOCKNUT, Hex 1/4 - 20
(Superseded to 15X143MA)

$4.99

$

In Stock, Qty 13

0

21

Murray MT1740425MA

SCREW, 1/4 - 20 x 5/8

$

$

Currently unavailable

22

Murray MT1740003MA

COVER, Top

$

$

Currently unavailable

24

$

$

Currently unavailable

25

Murray MT1740007MA

COVER, Auger Top 22"

$

$

Currently unavailable

26

Murray MT1740020MA

Gasket, Chute Ring

$

$

Currently unavailable

27

Murray MT028X85MA

NUT, Push Pal

$

$

Currently unavailable

28

Murray MT583435MA

CLIP, Cable

$

$

Currently unavailable
