ST 0522 (622594x16NA) - Frontier 22" Snow Thrower (2006) Auger and Housing Parts Diagram

22" Snow Thrower

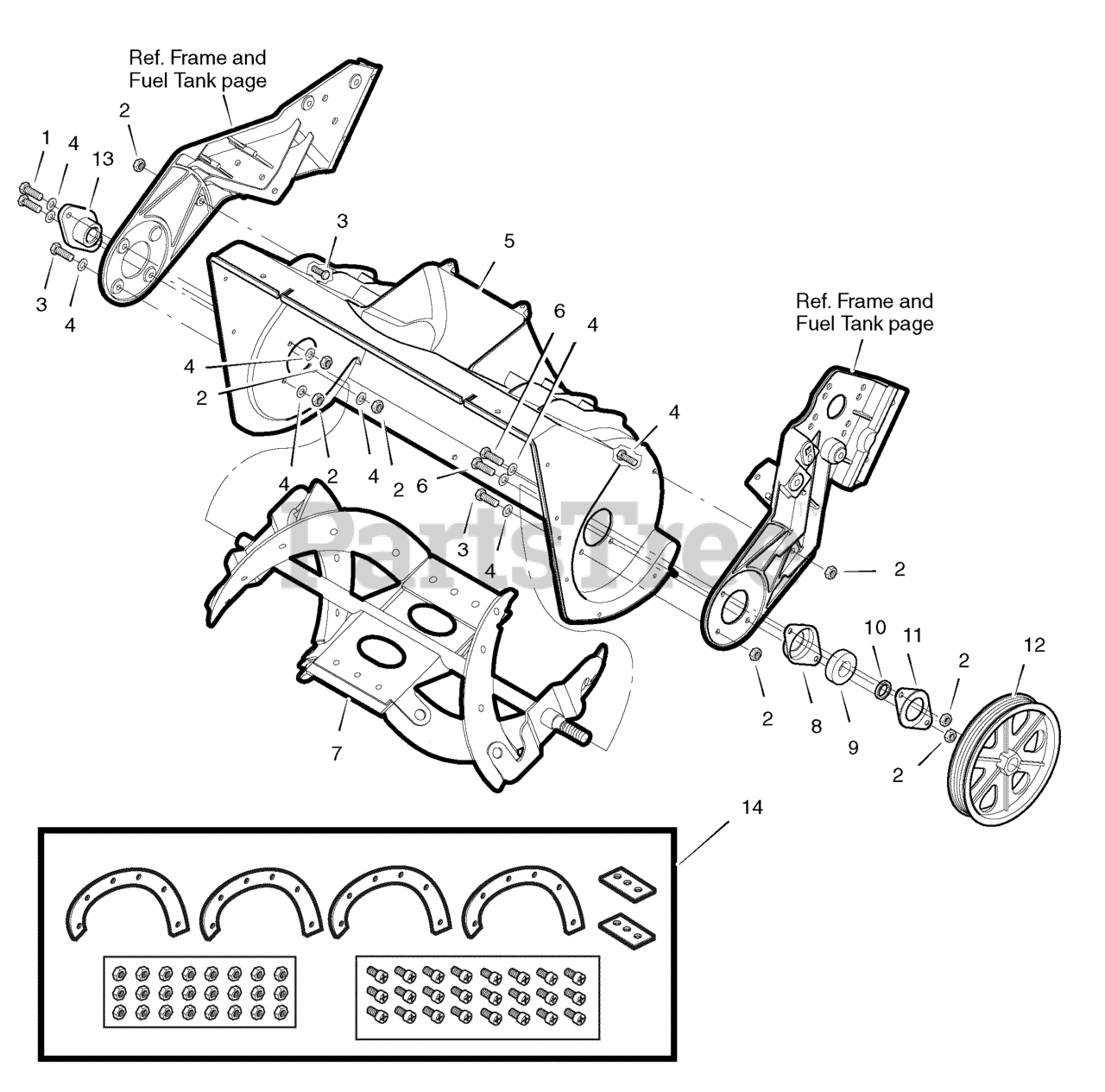

Auger and Housing Parts Diagram

  • Title
1

Murray MT710263MA

SCREW, 1/4 - 20 x 1

$

$

Currently unavailable

2

Murray MT73826MA

NUT, Hex, 1/4 - 20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

3

Murray MT302628MA

SCREW, 1/4 - 20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

4

Murray MT71067MA

WASHER, Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

5

Murray MT1501852MA

HOUSING ASSEMBLY, Auger

$

$

Currently unavailable

6

Murray MT579052MA

SCREW, 1/4 - 20 x 5/8
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

7

Murray MT1501981MA

AUGER ASSEMBLY, 22"

$

$

Currently unavailable

8

Murray MT580251MA

BEARING, Retainer

$

$

Currently unavailable

9

Murray MT43846MA

Bearing
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

10

Murray MT578101MA

SLEEVE, Spacer
(Superseded to 578101MA)

$4.99

$

Usually ships in 2-12 days

0

11

Murray MT334287MA

PLATE, Bearing Retainer
(Superseded to 334287MA)

$7.49

$

In Stock, only 1 left!

0

12

Murray MT333446MA

PULLEY, Auger Drive V6
(Superseded to 333446MA)

$22.99

$

Usually ships in 2-12 days

0

13

Murray MT577023MA

BEARING, Flange
(Superseded to 577023MA)

$5.99

$

In Stock, only 3 left!

0

14

Murray MT1687312SM

AUGER FLIGHTING REPLACEMENT KIT

Note: (Includes 4 helix flights, 2 center flights, & 24 screws & nuts)

$

$

Currently unavailable
