ST 0521 (621500x16NB) - Frontier 21" Snow Thrower (2004) Top Cover Assembly Parts Diagram

21" Snow Thrower

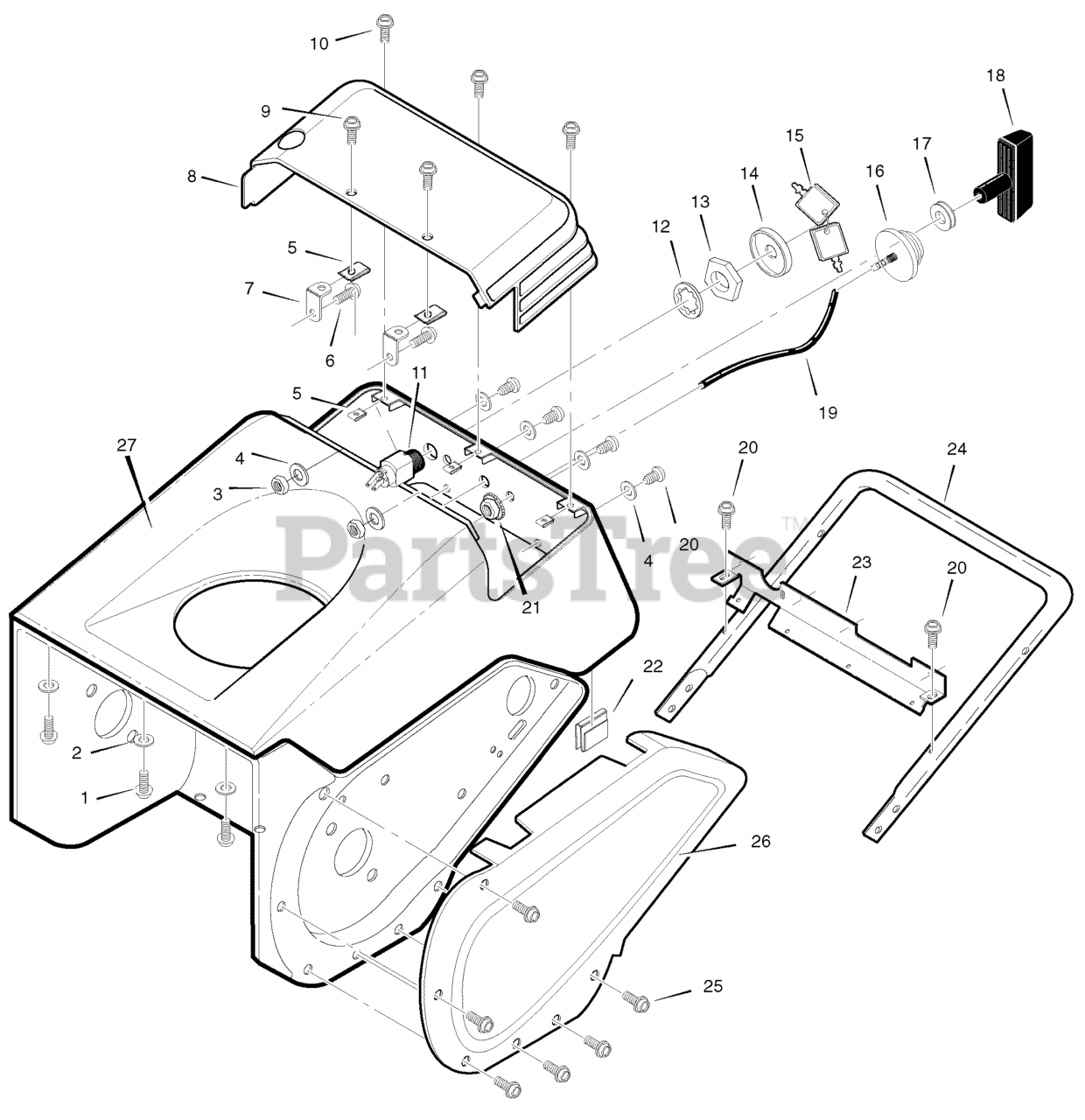

Top Cover Assembly Parts Diagram

  • Title
1

Murray MT309813

SCREW 10-14x.63

$

$

Currently unavailable

2

Murray MT711666

WASHER, FLAT

$

$

Currently unavailable

3

Murray MT71055

NUT, LOCK 10-24

$

$

Currently unavailable

4

Murray MT303041

WASHER, FLAT

$

$

Currently unavailable

5

Murray MT309811

NUT, U TYPE

$

$

Currently unavailable

6

Murray MT12342

SCREW 10-24x.50

$

$

Currently unavailable

7

Murray MT312102

BRACKET, ACCESS COVER

$

$

Currently unavailable

8

Murray MT305871

COVER, ENGINE ACCESS

$

$

Currently unavailable

9

Murray MT312094

SCREW 10-16x.62

$

$

Currently unavailable

10

Murray MT312362

SCREW 10-16x.75

$

$

Currently unavailable

11

Murray MT56992

INGNITION SWITCH

$

$

Currently unavailable

12

Murray MT313683

WASHER, INTERNAL LOCK

$

$

Currently unavailable

13

Murray MT300193

NUT, .62-32 PLASTIC

$

$

Currently unavailable

14

Murray MT300194

BOOT, SWITCH

$

$

Currently unavailable

15

Murray MT49643

KEYS & RING

$

$

Currently unavailable

16

Murray MT54601

PRIMER BULB

$

$

Currently unavailable

17

Murray MT57587

GROMMET & WASHER

$

$

Currently unavailable

18

Murray MT333643

KNOB, STANDARD T

$

$

Currently unavailable

19

Murray MT1259

HOSE, PRIMER

$

$

Currently unavailable

20

Murray MT309814

SCREW 10-24x.63

$

$

Currently unavailable

21

Murray MT303008

NUT .25-20 KEPS

$

$

Currently unavailable

22

$

$

Currently unavailable

23

Murray MT307761E701

BRACKET, SHROUD MTG

$

$

Currently unavailable

24

Murray MT309964E701

LOWER HANDLE

$

$

Currently unavailable

25

Murray MT310798

SCREW 10-24x.38

$

$

Currently unavailable

26

Murray MT302416

COVER, BELT

$

$

Currently unavailable

27

Murray MT305943

COVER, TOP

$

$

Currently unavailable
