ST 0521 (621500x16NB) - Frontier 21" Snow Thrower (2004) Handle Assembly Parts Diagram

21" Snow Thrower

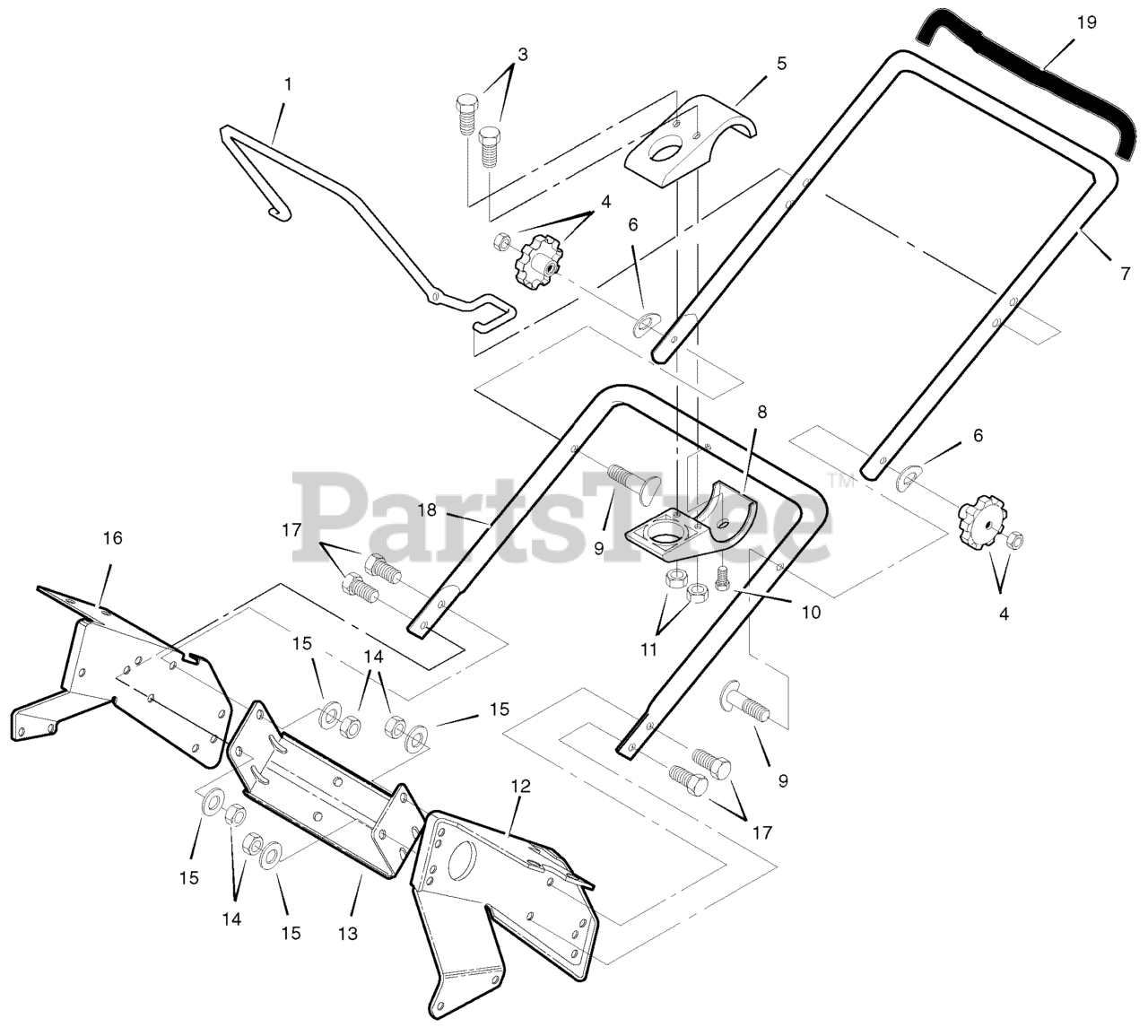

Handle Assembly Parts Diagram

  • Title
1

Murray MT307747

DRIVEBAR

$

$

Currently unavailable

3

Murray MT309815

SCREW 10-24x1.00

$

$

Currently unavailable

$

$

Currently unavailable

5

Murray MT308715

BRACKET, UPPER CRANK

$

$

Currently unavailable

6

Murray MT311936

WASHER, FORMED

$

$

Currently unavailable

7

Murray MT314135

HANDLE, UPPER w/FOAM

$

$

Currently unavailable

8

Murray MT308716

BRACKET, LOWER CRANK

$

$

Currently unavailable

9

Murray MT337584

BOLT, FORMED HEAD

$

$

Currently unavailable

10

Murray MT310169

SCREW .25-20x.62

$

$

Currently unavailable

11

Murray MT71055

NUT, LOCK 10-24

$

$

Currently unavailable

12

Murray MT301421E701

PLATE, REAR MT LH

$

$

Currently unavailable

13

Murray MT301419E701

FRAME SUPPORT

$

$

Currently unavailable

14

Murray MT71391

NUT, LOCK .31-18

$

$

Currently unavailable

15

Murray MT71060

WASHER, LOCK

$

$

Currently unavailable

16

Murray MT301420E701

PLATE, REAR MT RH

$

$

Currently unavailable

17

Murray MT313676

SCREW .31-18x.75

$

$

Currently unavailable

18

Murray MT309964E701

LOWER HANDLE

$

$

Currently unavailable

19

Murray MT300405

TUBING, FOAM

$

$

Currently unavailable
