ST 0521 (621500x16NB) - Frontier 21" Snow Thrower (2004) Frame Assembly Parts Diagram

21" Snow Thrower

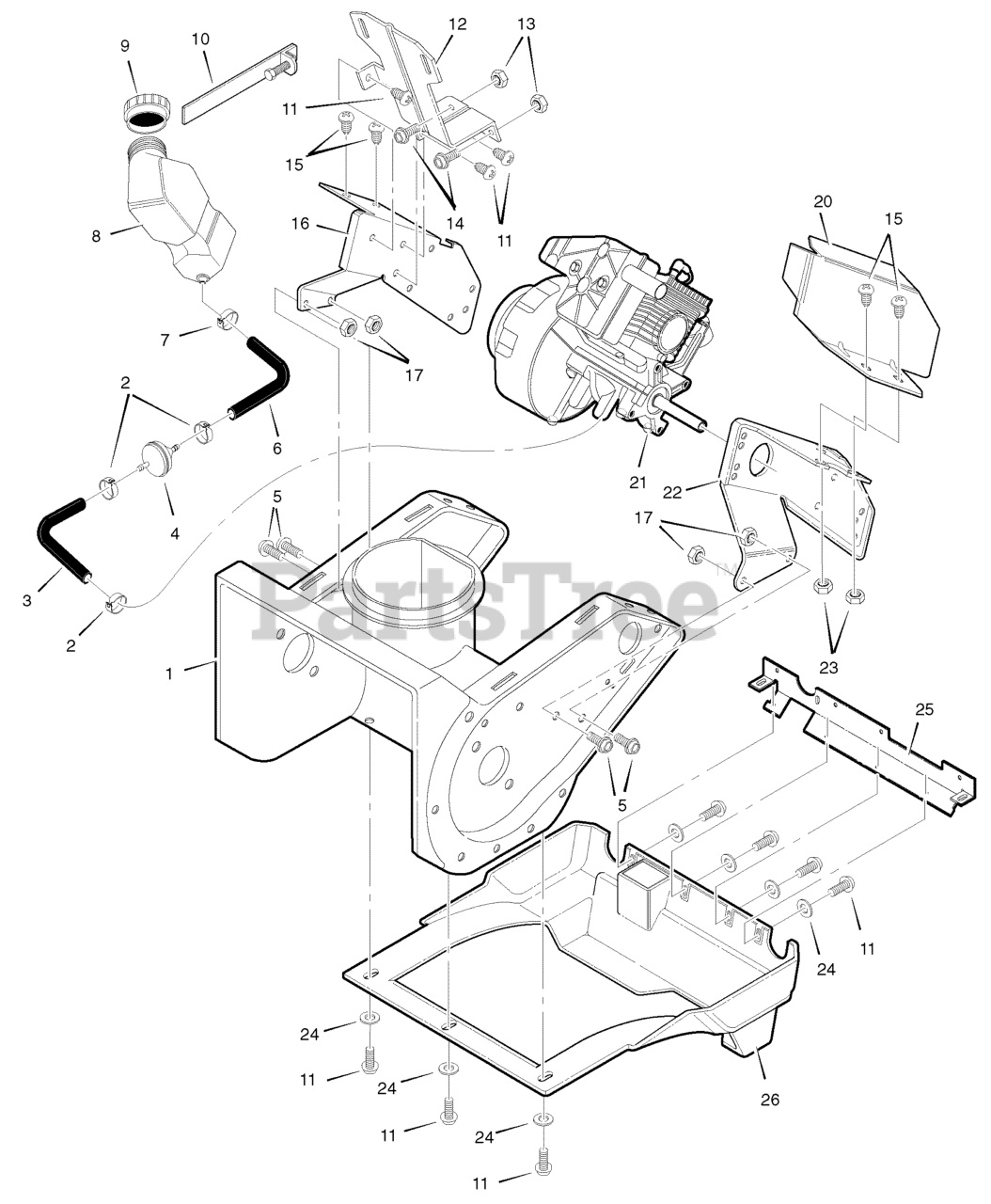

Frame Assembly Parts Diagram

  • Title
1

Murray MT340381E701

AUGER HOUSING 21"

$

$

Currently unavailable

2

Murray MT323387

CLAMP, TUBING

$

$

Currently unavailable

3

Murray MT323395

TUBING, FUEL

$

$

Currently unavailable

4

Murray MT56679

FILTER, FUEL

$

$

Currently unavailable

5

Murray MT313780

SCREW .31-18x.50

$

$

Currently unavailable

6

Murray MT323363

TUBING, FUEL

$

$

Currently unavailable

7

Murray MT47345

CLAMP, TUBING

$

$

Currently unavailable

8

Murray MT326142

FUEL TANK

$

$

Currently unavailable

9

Murray MT327018

CAP, FUEL

$

$

Currently unavailable

10

Murray MT311671

CLAMP, WORM DR

$

$

Currently unavailable

11

Murray MT309814

SCREW 10-24x.62

$

$

Currently unavailable

12

Murray MT308677

BRACKET, FUEL TANK

$

$

Currently unavailable

13

Murray MT997316

NUT, LOCK 10-24

$

$

Currently unavailable

14

Murray MT274707

SCREW 10-24x.50

$

$

Currently unavailable

15

Murray MT318139

SCREW .25-20x.62

$

$

Currently unavailable

16

Murray MT301420E701

PLATE, REAR MT RH

$

$

Currently unavailable

17

Murray MT71391

NUT, LOCK .31-18

$

$

Currently unavailable

20

Murray MT311738E701

HEAT SHIELD

$

$

Currently unavailable

21

ENGINE

$

$

Not available

22

Murray MT301421E701

PLATE, REAR MT LH

$

$

Currently unavailable

23

Murray MT302635

NUT, LOCK .25-20

$

$

Currently unavailable

24

Murray MT303041

WASHER, FLAT

$

$

Currently unavailable

25

Murray MT307761

BRACKET, COVER

$

$

Currently unavailable

26

Murray MT305869

BOTTOM COVER ST0521M (621501x16NB)

$

$

Currently unavailable

*

Murray MT1501743

BOTTOM COVER ST0521E (621500x16NB)

$

$

Currently unavailable
