ST 0521 (621500x16NB) - Frontier 21" Snow Thrower (2004) Discharge Chute Parts Diagram

21" Snow Thrower

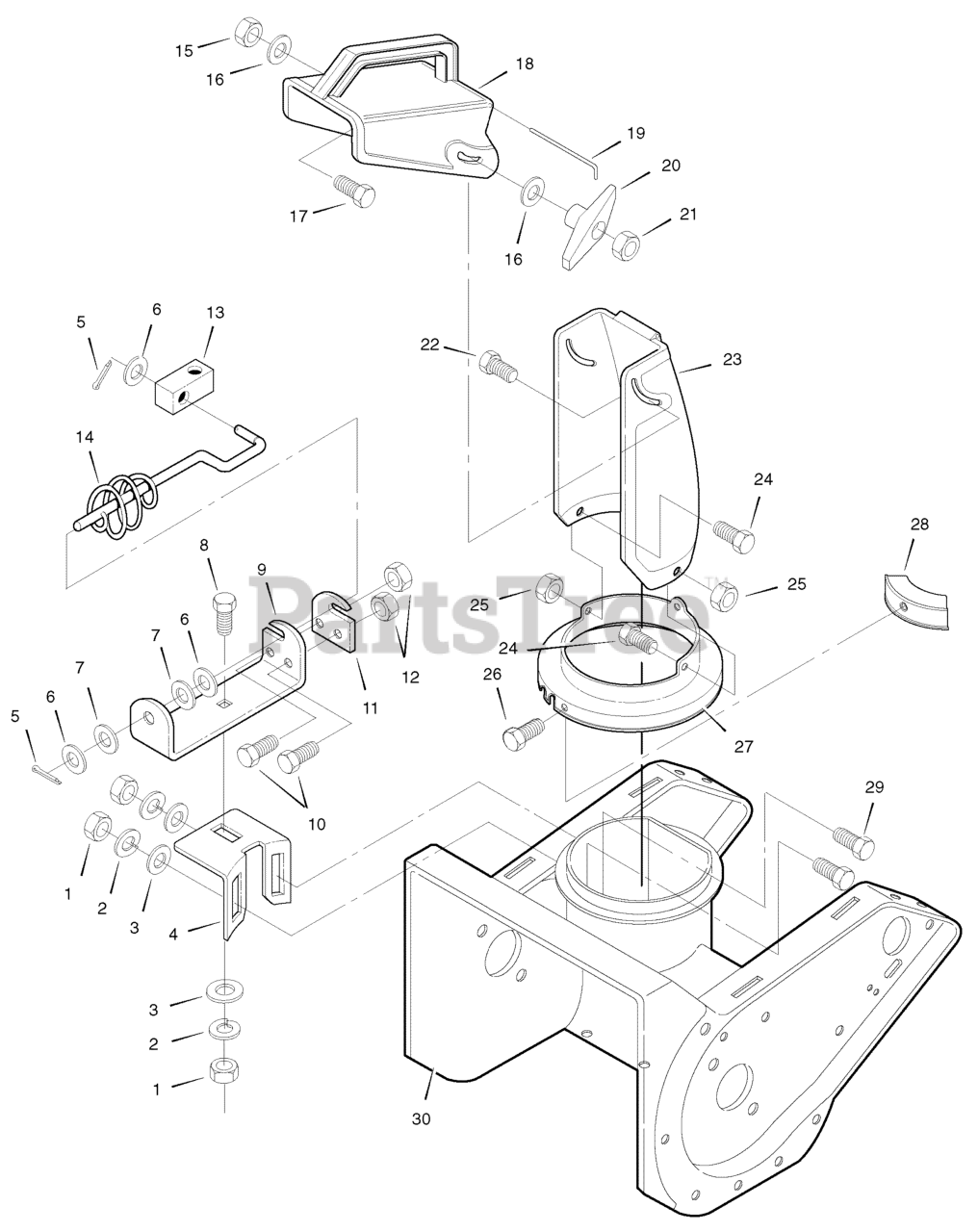

Discharge Chute Parts Diagram

  • Title
1

Murray MT15X144

NUT.31-18 HEX

$

$

Currently unavailable

2

Murray MT71060

WASHER, LOCK

$

$

Currently unavailable

3

Murray MT71071

WASHER, FLAT .349-0.69-.07

$

$

Currently unavailable

4

Murray MT302505E701

BRKT, WORM ADJUST

$

$

Currently unavailable

5

Murray MT71081

PIN, COTTER.094x0.75L

$

$

Currently unavailable

6

Murray MT12452

WASHER, FLAT .400-0.75-.02

$

$

Currently unavailable

7

Murray MT313431

WASHER, SPRING .395-0.73-.01

$

$

Currently unavailable

8

Murray MT340720

BOLT-CARRIAGE .31-18x0.75

$

$

Currently unavailable

9

Murray MT300728E701

BRKT, CHUTE ROD HOLE

$

$

Currently unavailable

10

Murray MT313686

SCREW.25-20x0.50 HHC

$

$

Currently unavailable

11

Murray MT307741

PLATE, CHUTE ROD

$

$

Currently unavailable

12

Murray MT73826

NUT, LOCK.25-20 HEX

$

$

Currently unavailable

13

Murray MT51564

BLOCK, PIVOT CHUTE

$

$

Currently unavailable

14

Murray MT307742

ROD ASSEMBLY, LOWER CHUTE

$

$

Currently unavailable

15

Murray MT71391

NUT, LOCK .31-18 HEX

$

$

Currently unavailable

16

Murray MT71071

WASHER, FLAT .349-0.69-.07

$

$

Currently unavailable

17

Murray MT578088

SCREW.31-18x0.75

$

$

Currently unavailable

18

Murray MT305861

CHUTE, UPPER

$

$

Currently unavailable

19

Murray MT310562

WIRE FORM, HINGE

$

$

Currently unavailable

20

Murray MT57171

WINGKNOB

$

$

Currently unavailable

21

Murray MT15X144

NUT.31-18 HEX

$

$

Currently unavailable

22

Murray MT302843

BOLT-CARRIAGE .31-18x1.50

$

$

Currently unavailable

23

Murray MT305862

CHUTE, LOWER

$

$

Currently unavailable

24

Murray MT313686

SCREW.25-20x0.50

$

$

Currently unavailable

25

Murray MT73826

NUT, LOCK .25-20

$

$

Currently unavailable

26

Murray MT56962

SCREW.25-14x0.62

$

$

Currently unavailable

27

Murray MT307842

CHUTE RING

$

$

Currently unavailable

28

Murray MT300790

CLIP, CHUTE RING

$

$

Currently unavailable

29

Murray MT340720

BOLT-CARRIAGE .31-18x0.75

$

$

Currently unavailable

30

Murray MT340381E701

AUGER HSG, 21"

$

$

Currently unavailable
