ST 0521 (621500x16NB) - Frontier 21" Snow Thrower (2004) Auger Housing Parts Diagram

21" Snow Thrower

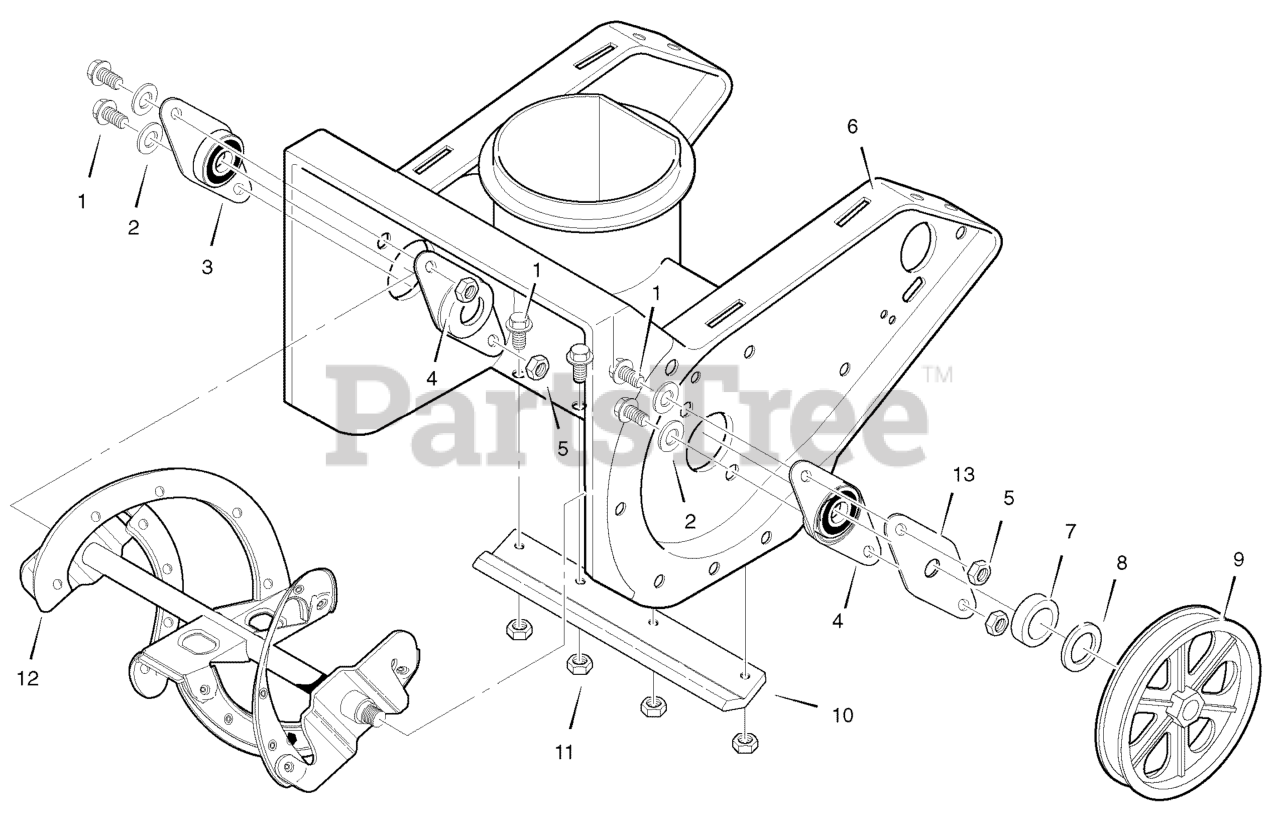

Auger Housing Parts Diagram

  • Title
1

Murray MT579052

SCREW .25-20X.63

$

$

Currently unavailable

2

Murray MT71067

WASHER, FLAT .281x.63x.065

$

$

Currently unavailable

3

Murray MT54836

PLATE, BEARING RETAINER

$

$

Currently unavailable

4

Murray MT583459

PLATE & BEARING ASSY

$

$

Currently unavailable

5

Murray MT73826

NUT, LOCK .25-20

$

$

Currently unavailable

6

Murray MT340381E701

AUGER HOUSING 21"

$

$

Currently unavailable

7

Murray MT578101

SPACER, SLEEVE

$

$

Currently unavailable

8

Murray MT40677

WASHER, FLAT .640x1.25x.06

$

$

Currently unavailable

9

Murray MT333446

PULLEY, POLY V

$

$

Currently unavailable

10

Murray MT302418

SCRAPER BLADE

$

$

Currently unavailable

11

Murray MT302635

NUT, LOCK .25-20

$

$

Currently unavailable

12

Murray MT321961E701

AUGER ASSY

$

$

Currently unavailable

13

Murray MT333796

RETAINER BEARING

$

$

Currently unavailable
