ST 0320 (620351x16NB) - Frontier 20" Snow Thrower (2004) Top Cover Assembly Parts Diagram

20" Snow Thrower

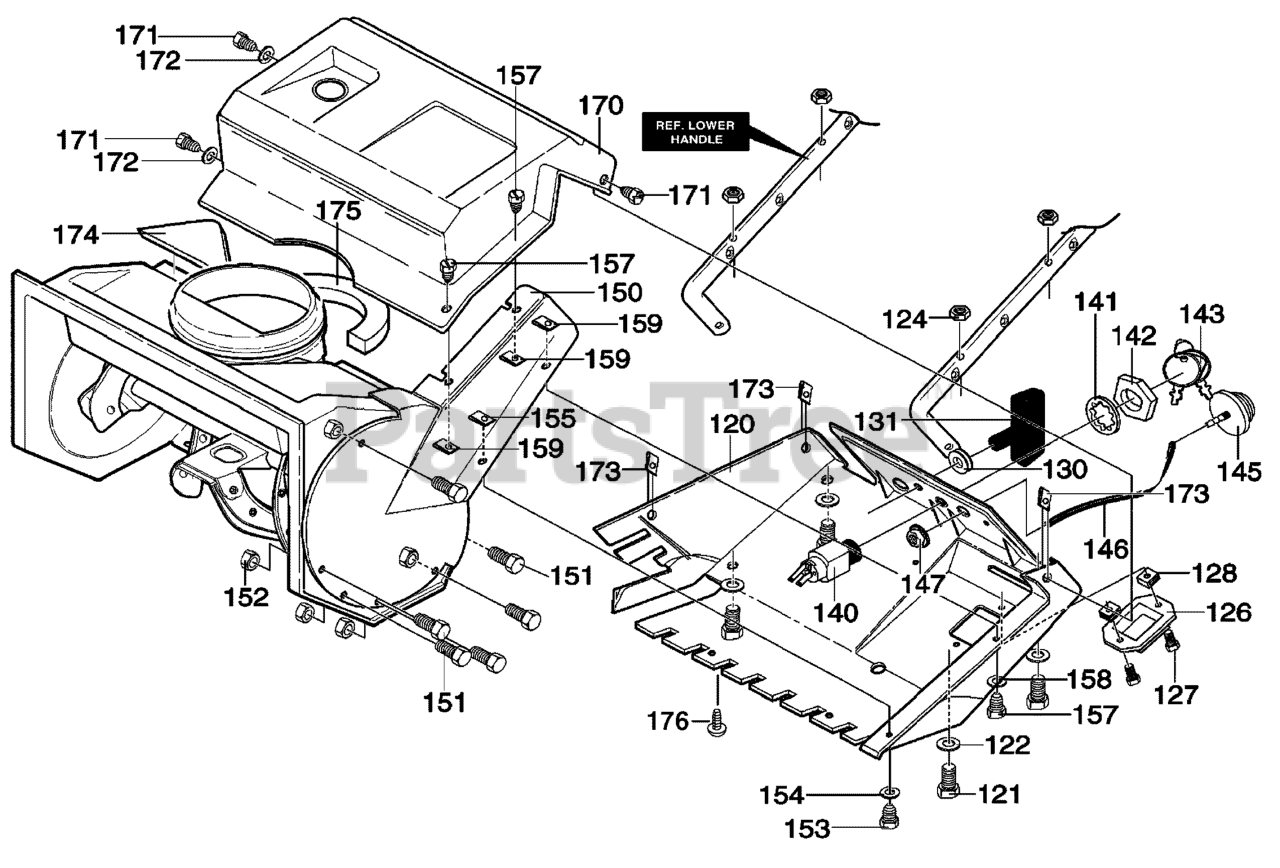

Top Cover Assembly Parts Diagram

  • Title
120

Murray MT314521

COVER, BOTTOM

$

$

Currently unavailable

121

Murray MT313674

SCREW, 1/4-20X1.25

$

$

Currently unavailable

122

Murray MT71067

WASHER, FLAT .281X.63X.065

$

$

Currently unavailable

124

Murray MT73826

NUT, 1/4-20 YZ

$

$

Currently unavailable

126

Murray MT326212

COVER, CARB

$

$

Currently unavailable

127

Murray MT313685

SCREW, 1/4-14X.75

$

$

Currently unavailable

128

Murray MT578109

NUT, 1/4-10 SPEED J TYPE

$

$

Currently unavailable

130

Murray MT57587

GROMMET & WASHER, ROPE GUIDE

$

$

Currently unavailable

131

Murray MT333643

KNOB, STAND TEE

$

$

Currently unavailable

140

Murray MT56992

SWITCH, IGNITION

$

$

Currently unavailable

141

$

$

Currently unavailable

142

Murray MT300193

NUT, 5/8-32 ACC

$

$

Currently unavailable

143

Murray MT49643

2 KEYS & RING

$

$

Currently unavailable

145

Murray MT54601

PRIMER, ENGINE

$

$

Currently unavailable

146

Murray MT1259

HOSE, PRIMER

$

$

Currently unavailable

147

Murray MT271172

KEPS NUT, 1/4-20

$

$

Currently unavailable

150

Murray MT57036

COVER, BELT

$

$

Currently unavailable

151

Murray MT12342

SCREW, 10-24X.50

$

$

Currently unavailable

152

Murray MT312300

NUT, #10-24

$

$

Currently unavailable

153

Murray MT313686

SCREW, 1/4-20X.50

$

$

Currently unavailable

154

Murray MT71067

WASHER, FLAT .281X.63X.065

$

$

Currently unavailable

155

Murray MT578107

NUT, 1/4-20 TINN

$

$

Currently unavailable

157

Murray MT313685

SCREW, 1/4-14X.75

$

$

Currently unavailable

158

Murray MT71067

WASHER, FLAT .281X.63X.065

$

$

Currently unavailable

159

Murray MT578109

NUT, 1/4-20 SPEED J TYPE

$

$

Currently unavailable

170

Murray MT1501690

COVER, TOP

$

$

Currently unavailable

171

Murray MT313685

SCREW, 1/4-14X.75

$

$

Currently unavailable

172

Murray MT71067

WASHER, FLAT .281X.63X.065

$

$

Currently unavailable

173

Murray MT578109

NUT, 1/4-10 SPEED J TYPE

$

$

Currently unavailable

174

Murray MT55379

SEAL, FOAM

$

$

Currently unavailable

175

Murray MT55380

SEAL, STRIP CHUTE & GAS SEAL

$

$

Currently unavailable

176

Murray MT26X292

SCREW 10-14 x 0.63

$

$

Currently unavailable
