ST 0320 (620351x16NB) - Frontier 20" Snow Thrower (2004) Handle Assembly Parts Diagram

20" Snow Thrower

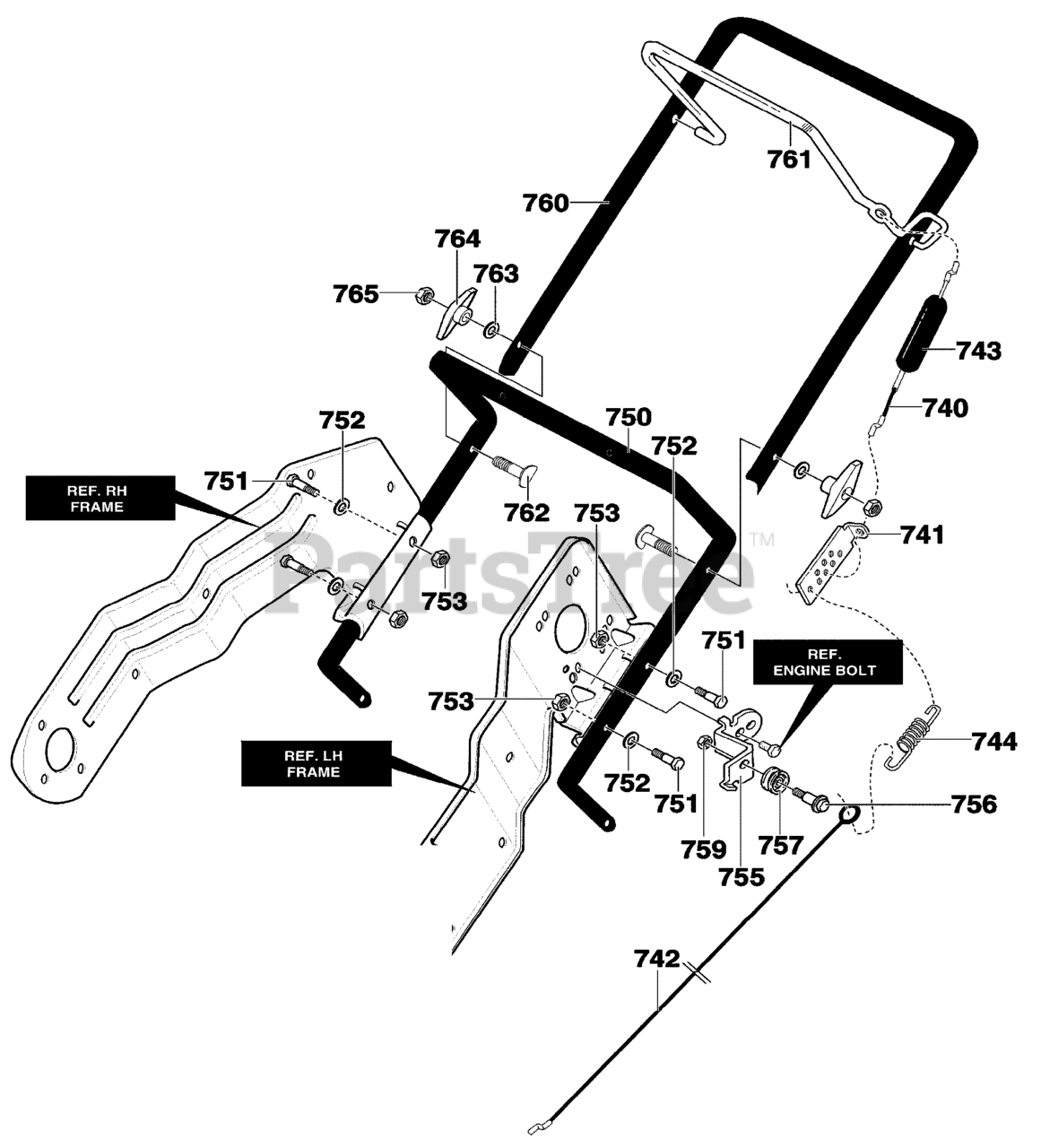

Handle Assembly Parts Diagram

  • Title
740

Murray MT760774

CABLE, UPPER

$

$

Currently unavailable

741

Murray MT313441

BRACKET, CABLE ADJ

$

$

Currently unavailable

742

Murray MT760773

CABLE, LOWER CONTROL

$

$

Currently unavailable

743

Murray MT308146

BOOT, CLUTCH SPRING

$

$

Currently unavailable

744

Murray MT313471

SPRING, EXTENSION

$

$

Currently unavailable

750

Murray MT313487E701

HANDLE, LOWER

$

$

Currently unavailable

751

Murray MT313674

SCREW, 1/4-20X1.25

$

$

Currently unavailable

752

Murray MT71067

WASHER, FLAT

$

$

Currently unavailable

753

Murray MT73826

NUT, 1/4-20

$

$

Currently unavailable

755

Murray MT761486E701

BRACKET, CABLE

$

$

Currently unavailable

756

$

$

Currently unavailable

757

$

$

Currently unavailable

759

Murray MT15X143

NUT, 1/4-20 YZ

$

$

Currently unavailable

760

Murray MT313489E701

UPPER HANDLE

$

$

Currently unavailable

761

Murray MT313308E701

BAIL, CONTROL

$

$

Currently unavailable

762

$

$

Currently unavailable

763

Murray MT311936

WASHER, FORM

$

$

Currently unavailable

764

Murray MT57171

KNOB, T 3.00 WD

$

$

Currently unavailable

765

Murray MT71037

NUT, 5/16-18

$

$

Currently unavailable
