ST 0320 (620351x16NB) - Frontier 20" Snow Thrower (2004) Frame Components Assembly Parts Diagram

20" Snow Thrower

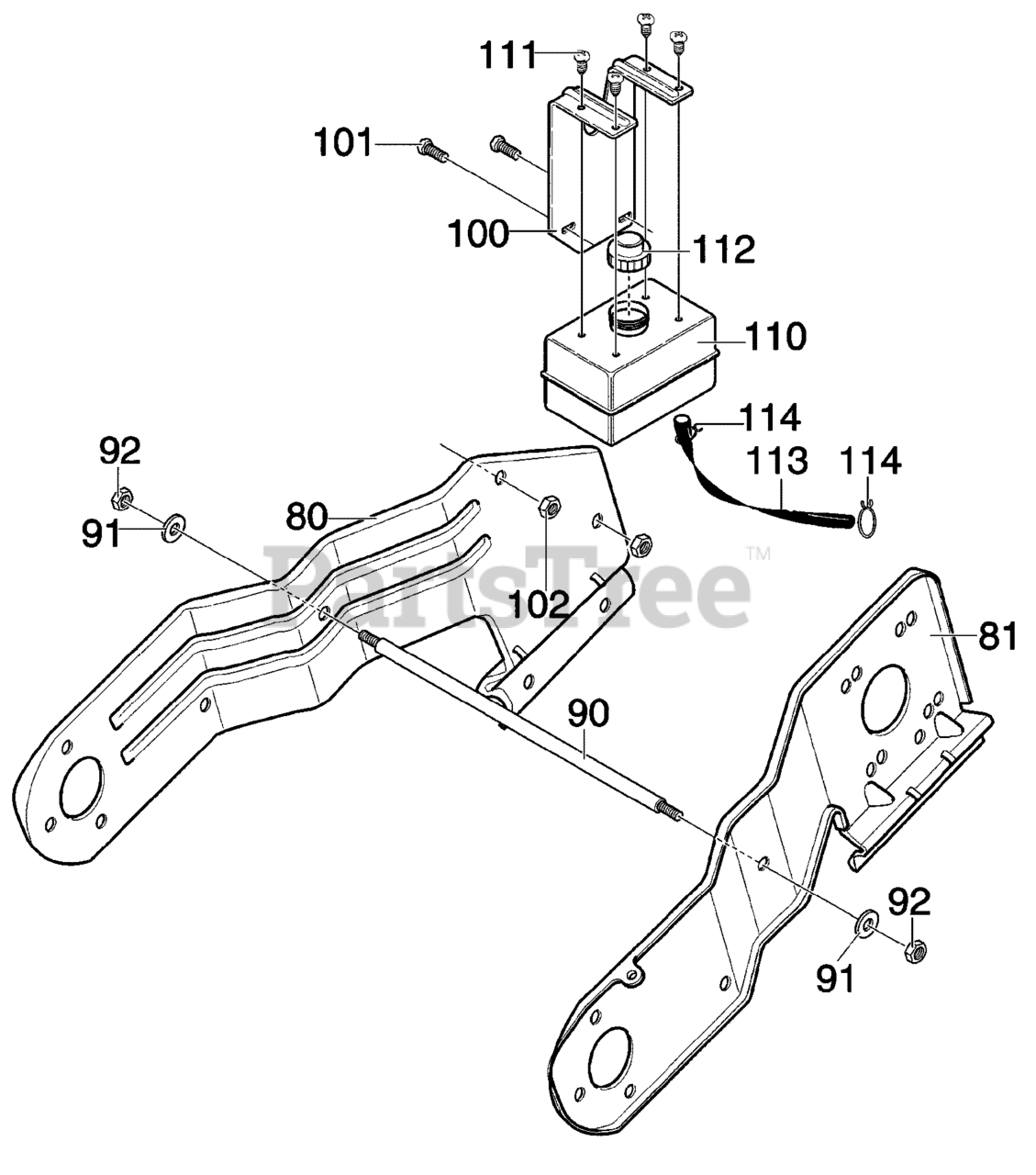

Frame Components Assembly Parts Diagram

  • Title
80

Murray MT760272E701

FRAME SIDE SUPPORT RH

$

$

Currently unavailable

81

Murray MT760271E701

FRAME SIDE SUPPORT LH

$

$

Currently unavailable

90

Murray MT760169

ROD, SUPPORT

$

$

Currently unavailable

91

Murray MT71063

WASHER, HVSPTLK

$

$

Currently unavailable

92

Murray MT71044

NUT, 3/8-16 REGHEX

$

$

Currently unavailable

100

Murray MT578093E701

BRACKET, GAS TANK

$

$

Currently unavailable

101

Murray MT302628

SCREW, 1/4-20X.75

$

$

Currently unavailable

102

Murray MT73826

NUT, 1/4-20 YZ

$

$

Currently unavailable

110

Murray MT55381

TANK, FUEL

$

$

Currently unavailable

111

Murray MT313681

SCREW, 1/4-14X.88 WAHHTAP

$

$

Currently unavailable

112

Murray MT315433

CAP, GAS-BLACK

$

$

Currently unavailable

113

Murray MT327290

TUBING 11.50 IN.

$

$

Currently unavailable

114

Murray MT323387

CLAMP, FUEL LINE

$

$

Currently unavailable
