ST 0320 (620351x16NB) - Frontier 20" Snow Thrower (2004) Engine Assembly Parts Diagram

20" Snow Thrower

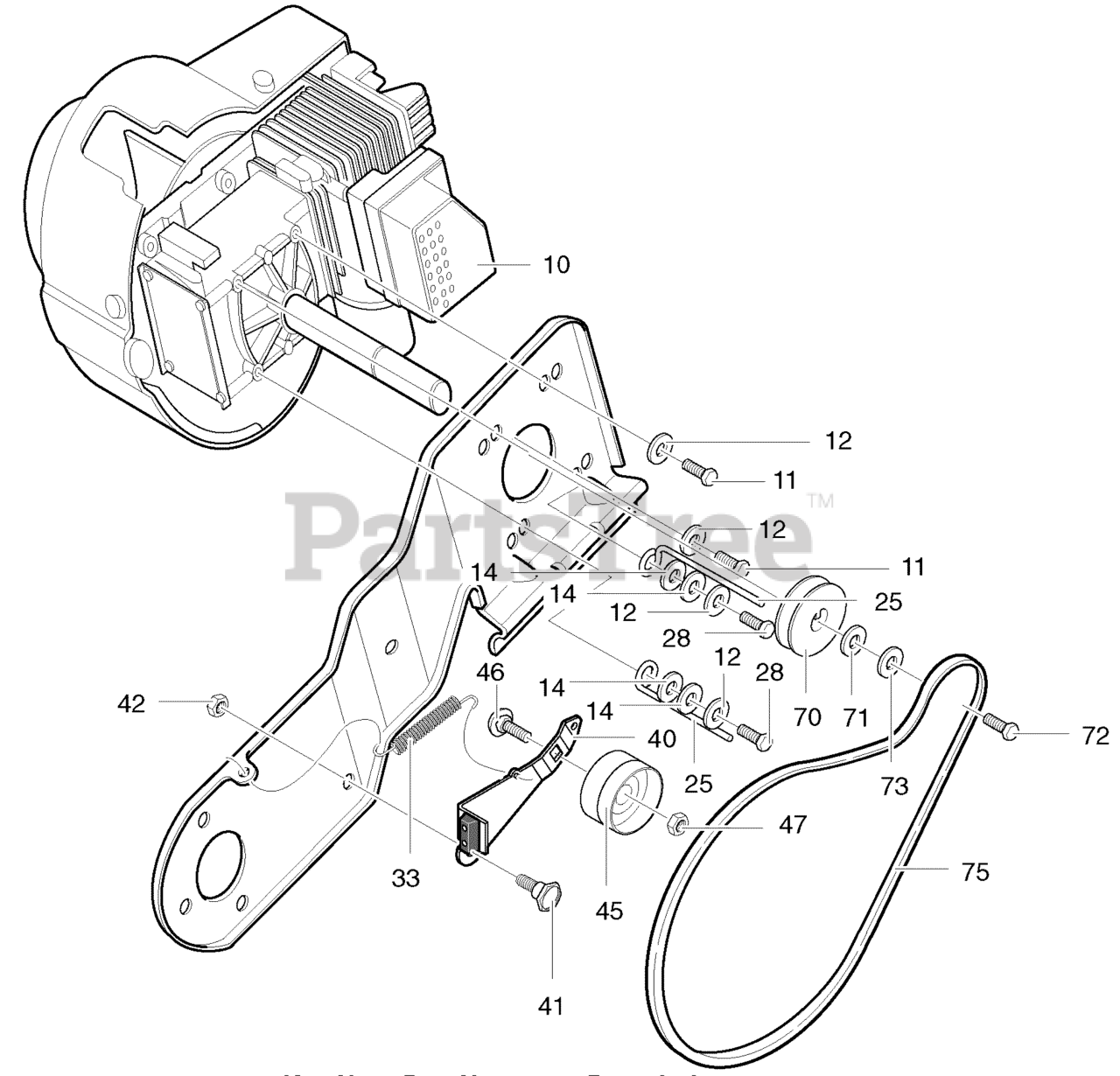

Engine Assembly Parts Diagram

  • Title
10

ENGINE

$

$

Not available

11

Murray MT313676

SCREW, 5/16-18 X.75

$

$

Currently unavailable

12

$

$

Currently unavailable

14

Murray MT71071

WASHER, FLAT

$

$

Currently unavailable

25

Murray MT313440

GUIDE, BELT

$

$

Currently unavailable

28

$

$

Currently unavailable

33

Murray MT339017

SPRING, IDLER BRAKE

$

$

Currently unavailable

40

Murray MT1501013

ASSY, IDLER BRAKE ARM

$

$

Currently unavailable

41

$

$

Currently unavailable

42

Murray MT71391

NUT, 5/16-18

$

$

Currently unavailable

45

Murray MT48924

PULLEY, IDLER

$

$

Currently unavailable

46

Murray MT45892

BOLT, CARRIAGE

$

$

Currently unavailable

47

$

$

Currently unavailable

70

Murray MT338849

PULLEY, ENGINE

$

$

Currently unavailable

71

Murray MT25840

WASHER, BELLEVILLE

$

$

Currently unavailable

72

Murray MT181595

SCREW, 5/16-24X.75

$

$

Currently unavailable

73

Murray MT71060

WASHER, SPLTLK

$

$

Currently unavailable

75

Murray MT37X132

BELT V 3L 34.8"

$

$

Currently unavailable

--

Murray MTF-041007C

OPERATOR'S MANUAL

$

$

Currently unavailable
