ST 0320 (620351x16NB) - Frontier 20" Snow Thrower (2004) Discharge Chute Parts Diagram

20" Snow Thrower

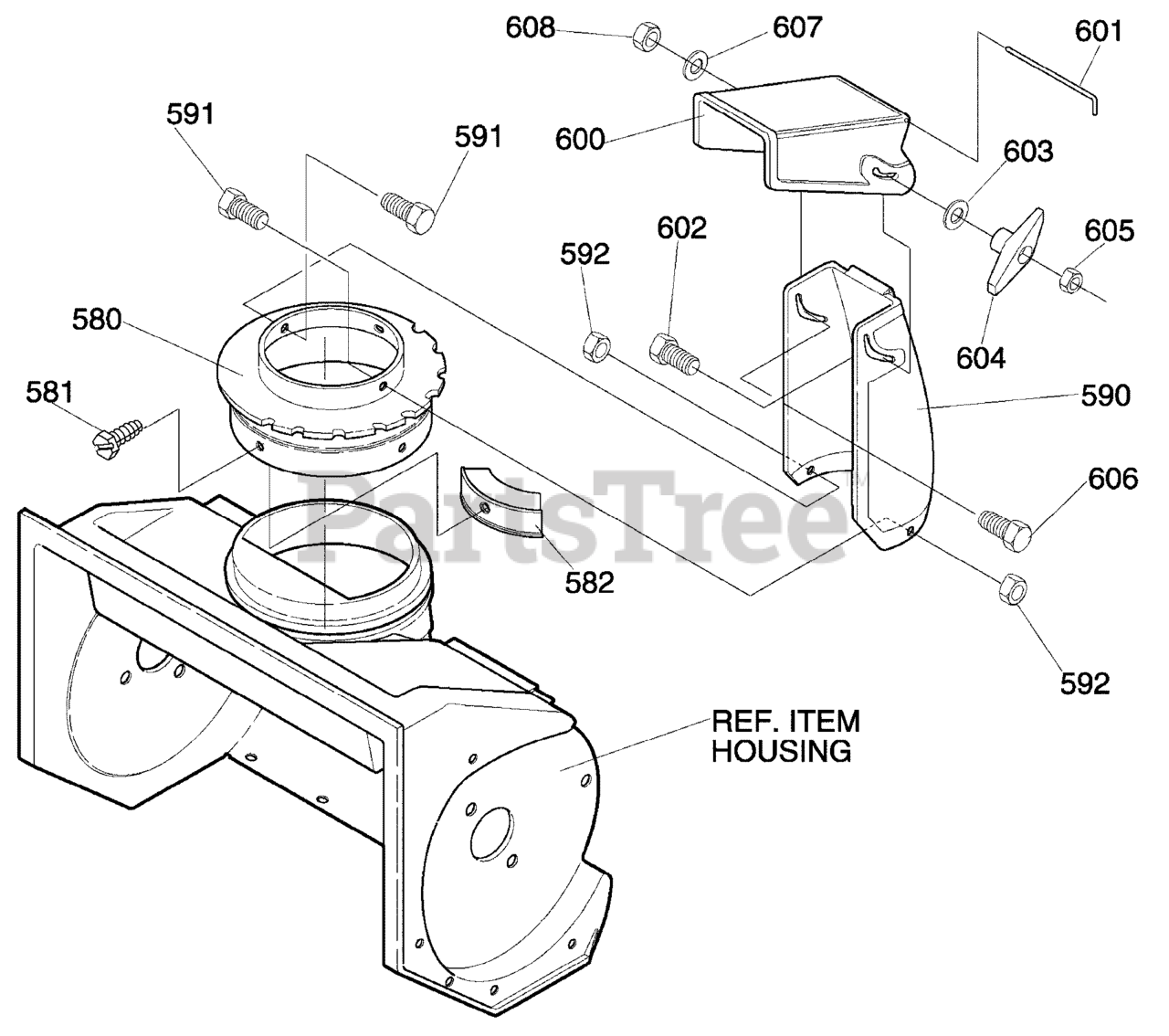

Discharge Chute Parts Diagram

  • Title
580

Murray MT314239

RING, CHUTE

$

$

Currently unavailable

581

Murray MT711752

SCREW, #10X.50

$

$

Currently unavailable

582

Murray MT577021

GUIDE, CHUTE

$

$

Currently unavailable

590

Murray MT334234

CHUTE, LOWER

$

$

Currently unavailable

591

Murray MT313686

SCREW 1/4-20X.50

$

$

Currently unavailable

592

Murray MT15X143

NUT, 1/4-2 YZ

$

$

Currently unavailable

600

Murray MT325847

CHUTE, UPPER

$

$

Currently unavailable

601

Murray MT308931

WIRE, HINGE

$

$

Currently unavailable

602

Murray MT302843

BOLT, CARRIAGE 5/16-18X1.25

$

$

Currently unavailable

603

Murray MT71071

WASHER, FLAT .349X.69X.066

$

$

Currently unavailable

604

Murray MT57171

KNOB, T

$

$

Currently unavailable

605

Murray MT71037

NUT, HEX 5/16-18

$

$

Currently unavailable

606

Murray MT578088

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

607

Murray MT71071

WASHER, FLAT .349X.69X.066

$

$

Currently unavailable

608

Murray MT71391

NUT, HEX 5/16-18

$

$

Currently unavailable
