ST 0320 (620351x16NB) - Frontier 20" Snow Thrower (2004) Chute Rod Assembly Parts Diagram

20" Snow Thrower

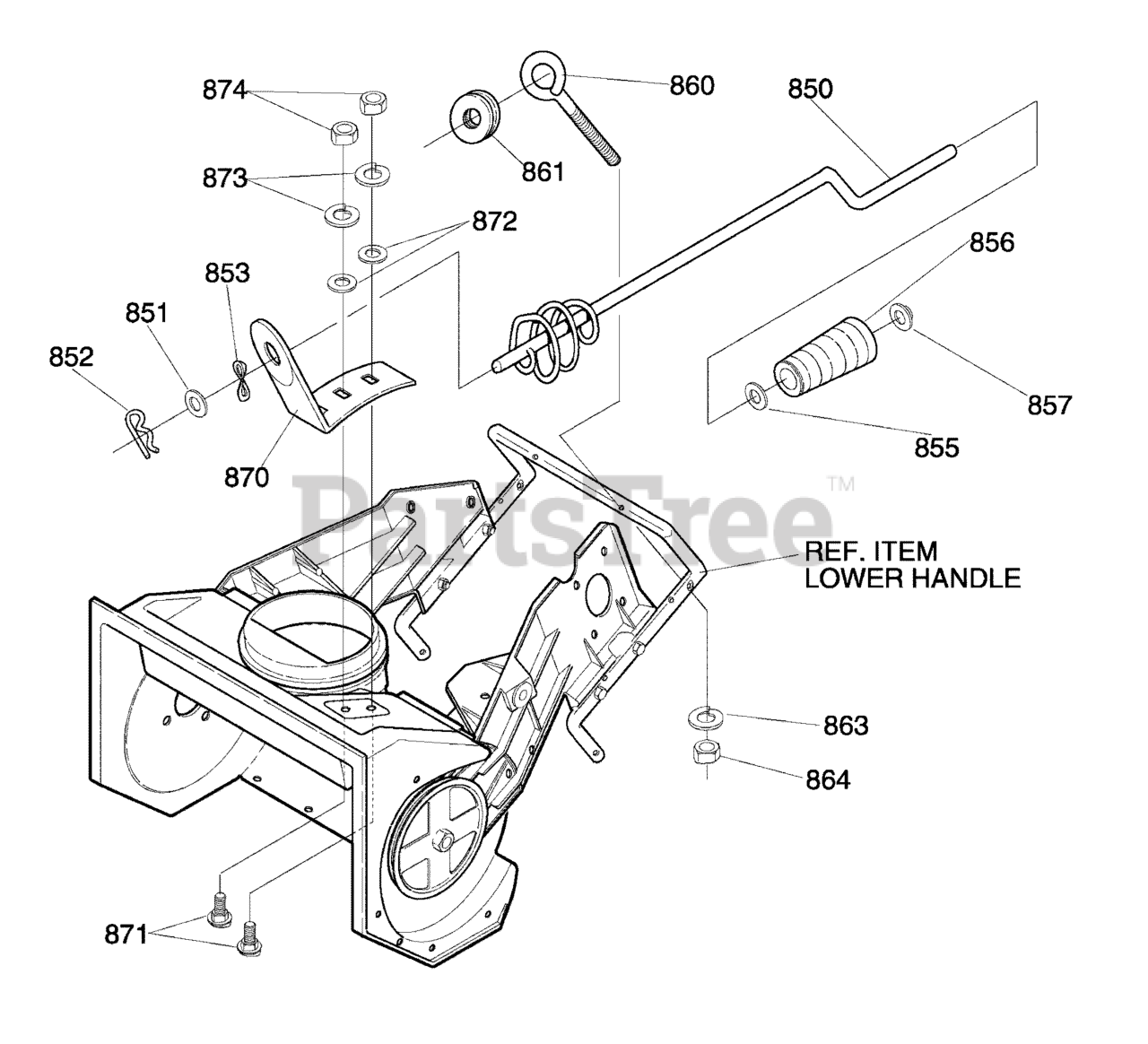

Chute Rod Assembly Parts Diagram

  • Title
850

Murray MT314996

ROD, ASSY UPPER CHUTE CONTROL

$

$

Currently unavailable

851

Murray MT71072

WASHER, FLAT .406X.81X.066

$

$

Currently unavailable

852

Murray MT71082

PIN, COTTER

$

$

Currently unavailable

853

Murray MT313431

WASHER, CURVED SPRING

$

$

Currently unavailable

855

Murray MT71072

WASHER, FLAT .406X.81X.066

$

$

Currently unavailable

856

Murray MT57082

KNOB, SLEEVE

$

$

Currently unavailable

857

Murray MT331532

NUT, PUSH

$

$

Currently unavailable

860

Murray MT313712

BOLT, EYE 3/8-16X2.00

$

$

Currently unavailable

861

Murray MT148

GROMMET, EYE BOLT

$

$

Currently unavailable

863

$

$

Currently unavailable

864

Murray MT71045

NUT, HEX JAM 3/8-16

$

$

Currently unavailable

870

Murray MT333946E701

BRACKET, CHUTE ROTATE

$

$

Currently unavailable

871

Murray MT340720

BOLT, CARRIAGE 5/16-18X.75

$

$

Currently unavailable

872

Murray MT71071

WASHER, FLAT .349X.69X.066

$

$

Currently unavailable

873

Murray MT71060

WASHER .328X.60X.09

$

$

Currently unavailable

874

Murray MT71037

NUT, HEX 5/16-18

$

$

Currently unavailable
