ST 0320 (620351x16NB) - Frontier 20" Snow Thrower (2004) Auger Housing Parts Diagram

20" Snow Thrower

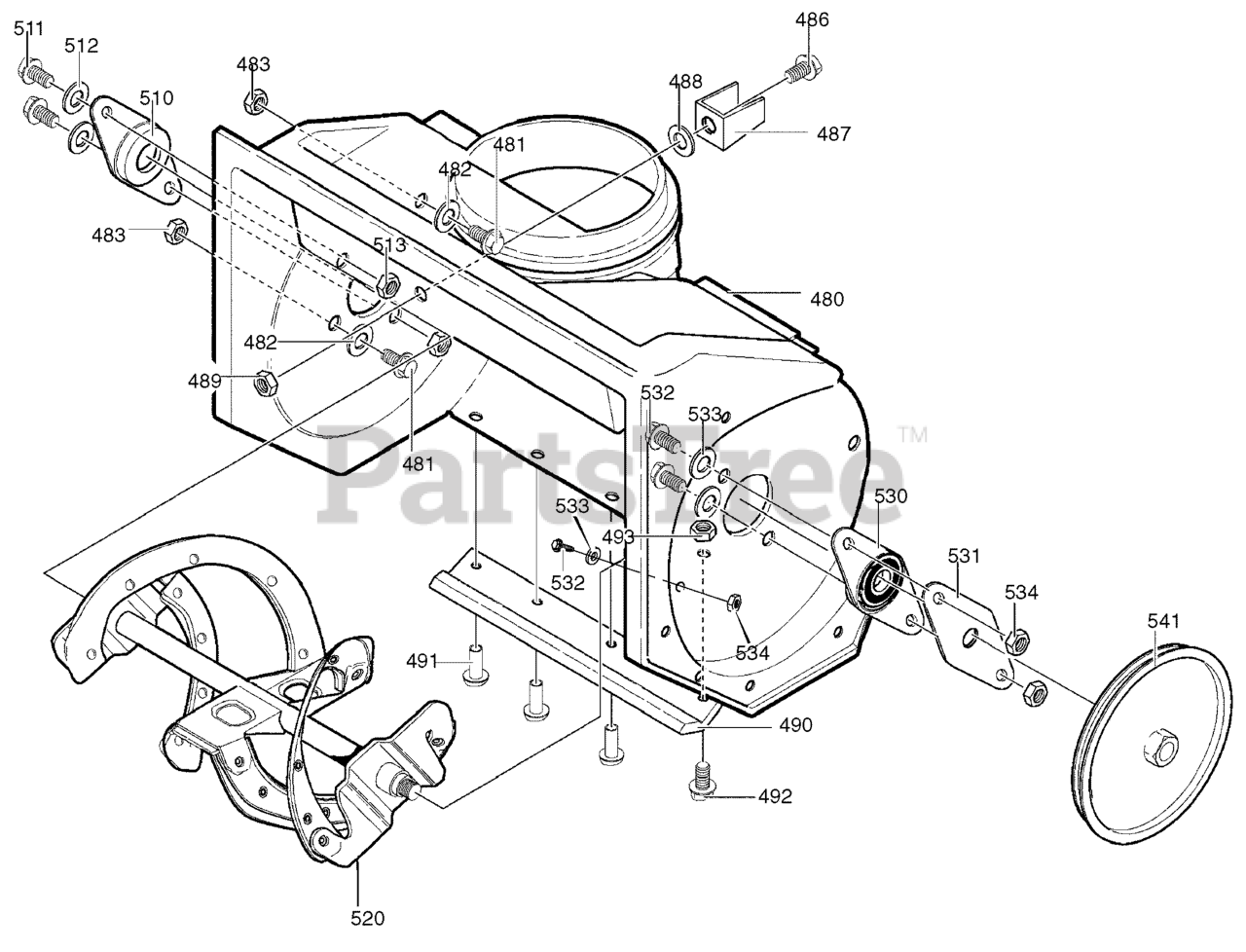

Auger Housing Parts Diagram

  • Title
480

Murray MT330312

HOUSING, ASSY

$

$

Currently unavailable

481

Murray MT302628

SCREW, 1/4-20X.75

$

$

Currently unavailable

482

Murray MT71067

WASHER, FLAT .281X.63X.065

$

$

Currently unavailable

483

Murray MT15X143

NUT, HEX 1/4-20 YZ

$

$

Currently unavailable

486

Murray MT579052

SCREW, 1/4-20X.63

$

$

Currently unavailable

487

Murray MT331126

BRACKET, STOP

$

$

Currently unavailable

488

Murray MT331211

WASHER, FLAT .333X.87X.119

$

$

Currently unavailable

489

Murray MT780029

NUT, 1/4-20 HEX NYLOCK

$

$

Currently unavailable

490

Murray MT334031

BLADE, SCRAPER

$

$

Currently unavailable

491

Murray MT577707

RIVET, OVSET

$

$

Currently unavailable

492

Murray MT302628

SCREW, 1/4-20X.75

$

$

Currently unavailable

493

Murray MT15X143

NUT, 1/4-20 YZ

$

$

Currently unavailable

510

Murray MT577023

BEARING, FLANGE

$

$

Currently unavailable

511

Murray MT710263

SCREW, 1/4-20X1.00

$

$

Currently unavailable

512

Murray MT71067

WASHER, FLAT .281X.63X.065

$

$

Currently unavailable

513

Murray MT15X143

NUT, 1/4-20

$

$

Currently unavailable

520

Murray MT1501926

AUGER, ASSY

$

$

Currently unavailable

520-2

Murray 302565

BLADE, AUGER
(Superseded to 302565MA)

$28.99

$

In Stock, only 2 left!

0

520-6

Murray 49838

RIVET
(Superseded to 49838MA)

$4.49

$

In Stock, Qty 20+

0

520-8

Murray 335992

BLADE, CENTER
(Superseded to 335992MA)

$8.99

$

In Stock, Qty 8

0

520-10

Murray 302552

AUGER & BLADE SUPPORT

$

$

Currently unavailable

530

Murray MT583459

BEARING & PLATE ASSY

$

$

Currently unavailable

531

Murray MT334287

PLATE, RETAINER

$

$

Currently unavailable

532

Murray MT579052

SCREW, 1/4-20X.63

$

$

Currently unavailable

533

Murray MT71067

WASHER, FLAT .281X.63X.065

$

$

Currently unavailable

534

Murray MT73826

NUT, 1/4-20

$

$

Currently unavailable

541

$

$

Currently unavailable
