SSZ4818CV - Scag Super Z 48" Zero-Turn Mower, 18hp Kohler (SN: 40000 - 49999) HYDRAULIC COMPONENTS Parts Diagram

Super Z 48" Zero-Turn Mower, 18hp Kohler

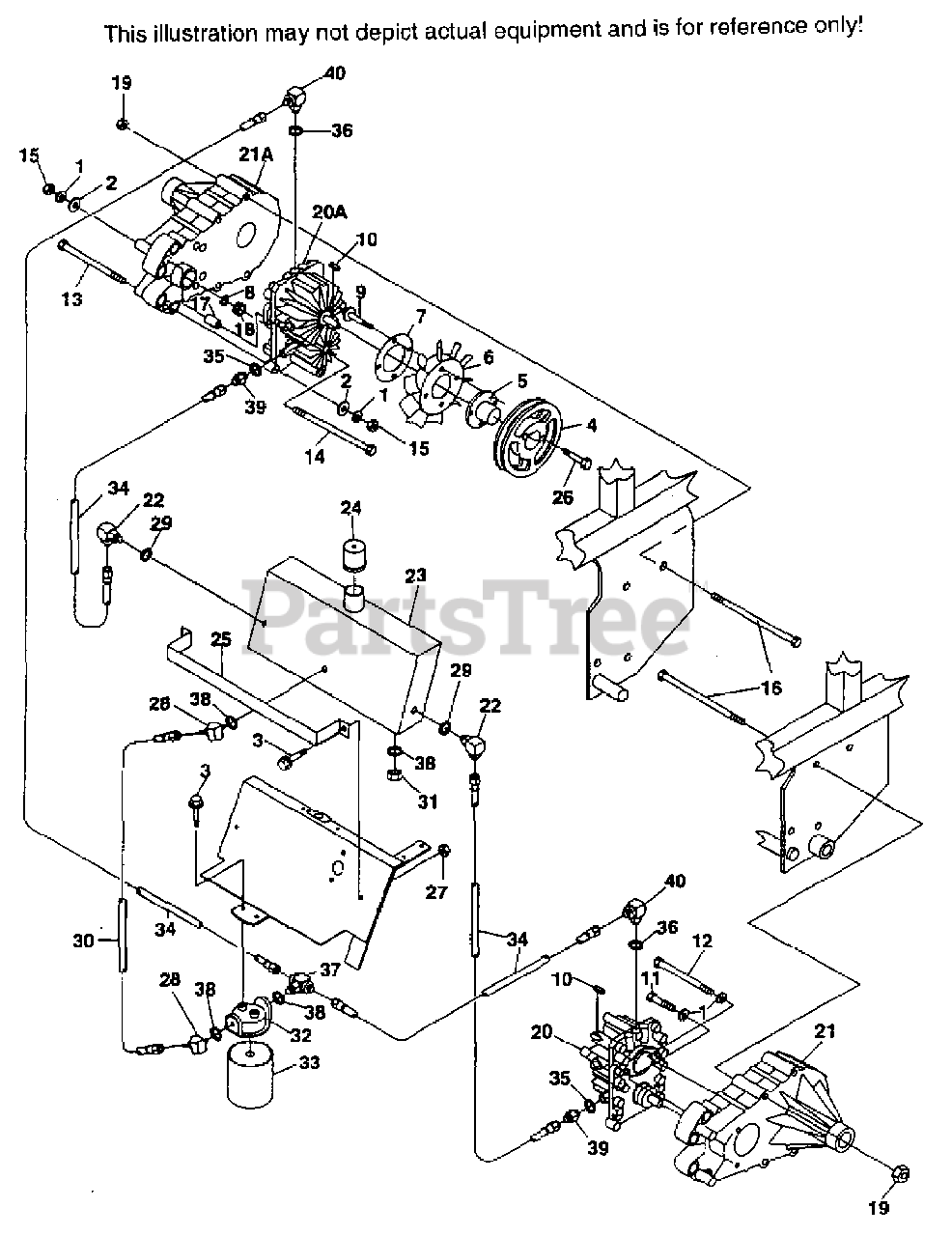

HYDRAULIC COMPONENTS Parts Diagram

  • Title

1

LOCKWASHER, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

2

FLATWASHER, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

3

Scag 04017-05

CAP SCREW, 1/4-20 X 3/4" SERRATED

$0.99

$

In Stock, Qty 20+

0

4

Scag 48790

PUMP PULLEY
(Superseded to 482648)

$38.99

$

In Stock, Qty 12

0

5

Scag 48791

TAPERED HUB, 15MM BORE

$53.99

$

Usually ships in 2-12 days

0

6

Scag 48789

FAN
(Superseded to 482133)

$34.99

$

Usually ships in 2-12 days

0

7

Scag 421209

BACK-UP WASHER

$22.99

$

Usually ships in 2-12 days

0

8

Scag 04050-13

SNAP RING

$0.99

$

In Stock, only 3 left!

0

9

Scag 04017-04

CAP SCREW, 1/4-20 X 1/2" SERRATED

$0.99

$

In Stock, Qty 20+

0

10

Scag 04063-14

KEY, 5 X 5 X 25MM

$0.99

$

In Stock, Qty 5

0

11

HEX HEAD BOLT 5/16-18 X 1-3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

12

Scag 04001-96

HEX HEAD BOLT 5/16-18 X 4-1/2"

$2.49

$

Usually ships in 2-12 days

0

13

Scag 04001-95

HEX HEAD BOLT 5/16-18 X 5"

$2.49

$

In Stock, Qty 6

0

14

Scag 04001-94

HEX HEAD BOLT 5/16-18 X 7-1/2"

$3.49

$

In Stock, only 2 left!

0

15

NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

16

HEX HEAD BOLT, 3/8-16 X 4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

17

Scag 48878

SPACER

$5.99

$

Usually ships in 2-12 days

0

18

Scag 48875

GEAR

$82.99

$

Usually ships in 2-12 days

0

19

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

20

Scag 48784

PUMP, LH(INCLUDES SPACERS)

$2792.99

$

Usually ships in 2-12 days

0

20A

Scag 48785

PUMP, RH(INCLUDES SPACERS)

$2239.99

$

Usually ships in 2-12 days

0

21

Scag 48782

AXLE, LH,(INCLUDES BRAKE LEVER)

$

$

Not available

21A

Scag 48783

AXLE, RH,(INCLUDES BRAKE LEVER)

$

$

Not available

22

Scag 48350-09

90 DEGREE ELBOW, 9/16-18 JIC TO 9/16-18

$25.99

$

In Stock, only 1 left!

0

23

Scag 48860

OIL TANK RESERVOIR

$

$

Not available

24

Scag 48894

CAP, OIL RESERVOIR

$21.99

$

Usually ships in 2-12 days

0

25

Scag 421208

OIL RESERVOIR STRAP

$31.99

$

Usually ships in 2-12 days

0

26

HEX HEAD BOLT, 1/4-20 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

27

NUT, 1/4-20 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

28

Scag 48485-01

45 DEGREE ELBOW, 3/4-16 JIC TO 3/4-16

$23.99

$

Usually ships in 2-12 days

0

29

Scag 48603-06

"O" RING, 5/64 X 15/32 ID

$6.99

$

In Stock, only 2 left!

0

30

Scag 48872

HOSE ASSEMBLY, FILTER INLET
(Superseded to 482088)

$47.99

$

In Stock, only 1 left!

0

31

Scag 48604-02

PLUG, 3/4-16 "O" RING

$9.49

$

Usually ships in 2-12 days

0

32

Scag 48462-02

HEAD, OIL FILTER

$41.99

$

Usually ships in 2-12 days

0

33

Scag 48462-01

OIL FILTER, SPECIAL

$26.99

$

In Stock, Qty 20+

0

34

Scag 48871

HOSE ASSEMBLY

$39.99

$

Usually ships in 2-12 days

0

35

Scag 48603-04

"O" RING, 3/32 X 3/4 ID

$8.99

$

In Stock, only 2 left!

0

36

Scag 48603-03

"O" RING, 1/16 X 3/8 ID

$3.49

$

Usually ships in 2-12 days

0

37

Scag 48810-01

1/2", T-FITTING, 3/4-16 JIC TO 3/4-16

$34.99

$

Usually ships in 2-12 days

0

38

Scag 48603-02

"O" RING, 3/32 X 5/8 ID

$3.49

$

In Stock, only 3 left!

0

39

Scag 48572-02

TUBE UNION, 3/4-16 JIC TO 7/8-14 "O" RING

$12.99

$

Usually ships in 2-12 days

0

40

Scag 48350-10

90 DEGREE ELBOW, 9/16-18 JIC TO 7/16-20

$26.99

$

Usually ships in 2-12 days

0
