SSZ4816BV - Scag Super Z 48" Zero-Turn Mower, 16hp Vanguard (SN: 40000 - 49999) CUTTER DECK 42" Parts Diagram

Super Z 48" Zero-Turn Mower, 16hp Vanguard

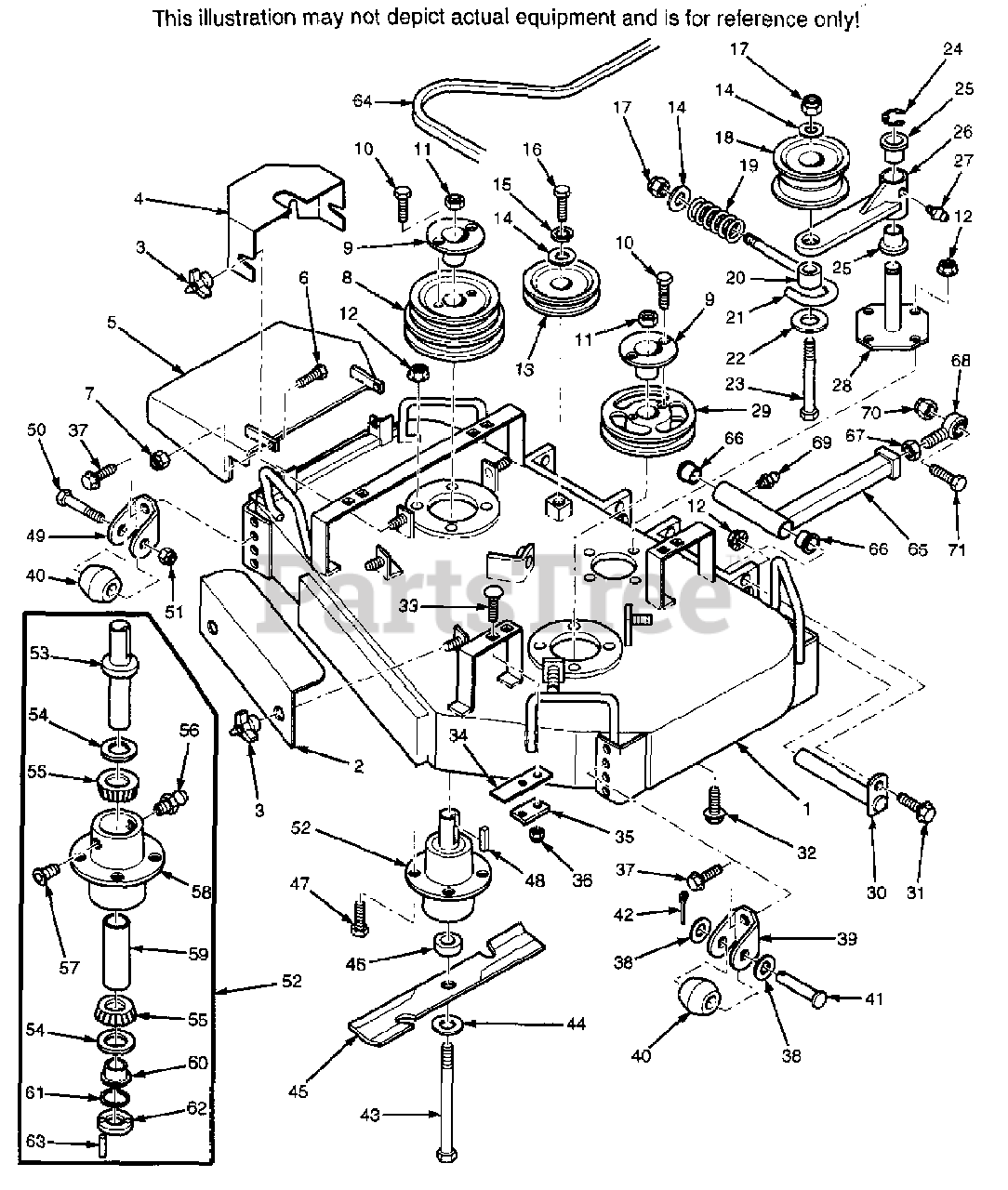

CUTTER DECK 42" Parts Diagram

  • Title

1

Scag 45570

CUTTER DECK

$

$

Not available

2

Scag 421058

BELT COVER, FRONT

$47.99

$

Usually ships in 2-12 days

0

3

Scag 04029-03

WING NUT 3/8-16

$2.49

$

In Stock, Qty 20+

0

4

Scag 421452

BELT COVER

$

$

Not available

5

Scag 45331

DISCHARGE CHUTE
(Superseded to 461293)

$84.99

$

Usually ships in 2-12 days

0

6

BOLT, HEX HEAD 5/16-18 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

7

NUT, HEX ELASTIC STOP 5/16 - 18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

8

Scag 48940

PULLEY, DOUBLE GROOVE

$188.99

$

Usually ships in 2-12 days

0

9

Scag 48141

TAPERED HUB, 1" BORE

$30.99

$

In Stock, only 1 left!

0

10

BOLT, HEX HEAD 1/4-20 X .75"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

11

NUT, HEX 5/8-11

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

12

Scag 04019-03

NUT, SERR. FLANGE 5/16-18

$0.99

$

In Stock, Qty 20+

0

13

Scag 48269

PULLEY, IDLER
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

14

Scag 04041-07

FLAT WASHER, 3/8-.391 X .938 X .105"

$0.99

$

In Stock, Qty 20+

0

15

Scag 04030-04

LOCKWASHER, 3/8"

$0.99

$

In Stock, Qty 8

0

16

BOLT, HEX HEAD 3/8-16 X 2.25"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

17

NUT, HEX ELASTIC STOP 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

18

Scag 48550

PULLEY, IDLER
(Superseded to 483210)

$56.99

$

In Stock, Qty 6

0

19

Scag 48807

SPRING, CUTTER DECK

$32.99

$

Usually ships in 2-12 days

0

20

Scag 43282

SPACER

$7.99

$

In Stock, only 1 left!

0

21

Scag 44101

J-ROD

$

$

Not available

22

Scag 04041-12

FLAT WASHER, 3/8-.375 X 1.500 X .060

$0.99

$

In Stock, Qty 9

0

23

BOLT, HEX HEAD 3/8-16 X 4.50"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

24

Scag 04050-05

RETAINING RING, 1 1/8 EXT. BASIC

$0.99

$

In Stock, Qty 20+

0

25

Scag 48100-02

BUSHING, SUPER OILUBE-1 1/8 ID.

$3.99

$

In Stock, only 2 left!

0

26

Scag 45521

IDLER ARM(INCLUDES ITEMS 25 AND 27)
(Superseded to 46750)

$167.99

$

Usually ships in 2-12 days

0

27

Scag 48114-04

GREASE FITTING, SELF TAP 1/4-28

$1.49

$

In Stock, Qty 20+

0

28

Scag 45329

IDLER PIVOT SUPPORT

$40.99

$

Usually ships in 2-12 days

0

29

Scag 48753

PULLEY, LH SPINDLE
(Superseded to 482745)

$31.99

$

In Stock, Qty 9

0

30

Scag 45332

PUSH ROD SHAFT
(Superseded to 451240)

$53.99

$

In Stock, Qty 20+

0

31

Scag 04017-17

SERR. FLANGE HH CPSCR, 5/16-18 X 1"

$0.99

$

Usually ships in 2-12 days

0

32

Scag 04017-16

SERR FLANGE HH CPSCR, 5/16-18 X .75"

$0.99

$

In Stock, Qty 10

0

33

BOLT, CARRIAGE 1/4-20 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

34

Scag 48817

RUBBER PAD, DECK BUMPER

$7.99

$

Usually ships in 2-12 days

0

35

Scag 421232

BACKUP PLATE, DECK PAD

$14.99

$

Usually ships in 2-12 days

0

36

Scag 04021-08

NUT, ELASTIC STOP 1/4-20

$0.99

$

In Stock, Qty 10

0

37

Scag 04017-27

SERR. FLANGE HH CPSCR, 3/8-16 X 1"

$1.49

$

In Stock, Qty 20+

0

38

Scag 04040-09

FLAT WASHER, 5/8-.656 X 1.312 X .095"

$0.99

$

In Stock, Qty 12

0

39

Scag 421478

BRACKET, ANTI-SCALP WHEEL - LH FRONT

$

$

Not available

40

Scag 48584

WHEEL, ANTI-SCALP

$13.99

$

Usually ships in 2-12 days

0

41

Scag 04064-06

PIN, CLEVIS 5/8 X 4.0"

$

$

Currently unavailable

42

Scag 04061-04

PIN, COTTER 5/32 X 1.50"

$

$

Currently unavailable

43

Scag 04001-41

BOLT, HEX HEAD 5/8-11 X 9.50"

$15.99

$

In Stock, Qty 20+

0

44

Scag 04040-10

FLAT WASHER, 5/8-.688 X 1.750 X .134"

$0.99

$

In Stock, Qty 11

0

45

Scag 48111

CUTTER BLADE, 21" STANDARD
(Superseded to 481708)

$27.99

$

In Stock, Qty 20+

0

45

Scag 48304

CUTTER BLADE, 21" HI-LIFT
(Superseded to 481712)

$53.99

$

Usually ships in 2-12 days

0

46

Scag 43279

SPACER, SPINDLE BOTTOM
(Superseded to 43591)

$11.99

$

Usually ships in 2-12 days

0

47

BOLT, HEX HEAD 5/16-18 X 1.25"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

48

Scag 04063-08

KEY, 1/4 X 1/4 X 2"

$1.49

$

In Stock, Qty 20+

0

49

Scag 42882

BRACKET, ANTI-SCALP WHEEL
(Superseded to 461086)

$67.99

$

Usually ships in 2-12 days

0

50

Scag 04001-79

BOLT, HEX HEAD 5/8-11 X 4.50"

$4.99

$

In Stock, Qty 10

0

51

Scag 04021-13

NUT, ELASTIC STOP 5/8-11

$1.49

$

In Stock, Qty 20+

0

52

Scag 46400

SPINDLE ASSEMBLY, TAPERED BEARING

$

$

Not available

53

Scag 45391

SPINDLE SHAFT, TAPERED BEARING
(Superseded to 43275)

$68.99

$

Usually ships in 2-12 days

0

54

Scag 48681

SEAL
(Superseded to 481024)

$4.99

$

In Stock, Qty 20+

0

55

Scag 48668

TAPERED BEARING W/RACE

$24.99

$

In Stock, Qty 20+

0

56

Scag 48114-02

GREASE FITTING, STR. 5/16 SERR.

$1.99

$

In Stock, only 3 left!

0

57

Scag 48677

RELIEF FITTING, CUTTER SPINDLE

$9.49

$

Usually ships in 2-12 days

0

58

Scag 41008

SPINDLE HOUSING, TAPERED BEARING
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

59

Scag 43218

SLEEVE, CUTTER SPINDLE

$8.99

$

Usually ships in 2-12 days

0

60

Scag 43217

SPINDLE BUSHING

$15.99

$

Usually ships in 2-12 days

0

61

Scag 04050-04

RETAINING RING, 1" EXT. INVERTED

$1.99

$

In Stock, Qty 5

0

62

Scag 43201

SPACER, CUTTER BLADE

$20.99

$

Usually ships in 2-12 days

0

63

Scag 04060-05

ROLL PIN, 1/8 X 1/2"

$0.99

$

Usually ships in 2-12 days

0

64

Scag 481003

BELT, CUTTER DECK DRIVE

$121.99

$

Usually ships in 2-12 days

0

65

Scag 46626

PUSH ROD ASSEMBLY(INCLUDES 66 THRU 69)

$

$

Not available

66

Scag 48100-06

BUSHING

$1.49

$

In Stock, only 1 left!

0

67

Scag 04020-16

NUT, 5/8-18 UNF

$0.99

$

In Stock, Qty 11

0

68

Scag 48763

ROD END

$59.99

$

In Stock, Qty 6

0

69

Scag 48114-04

GREASE FITTING - SELF THRD.

$1.49

$

In Stock, Qty 20+

0

70

HEX NUT, 5/16-11 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

71

HEX HEAD BOLT, 5/8-11 X 3"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available
