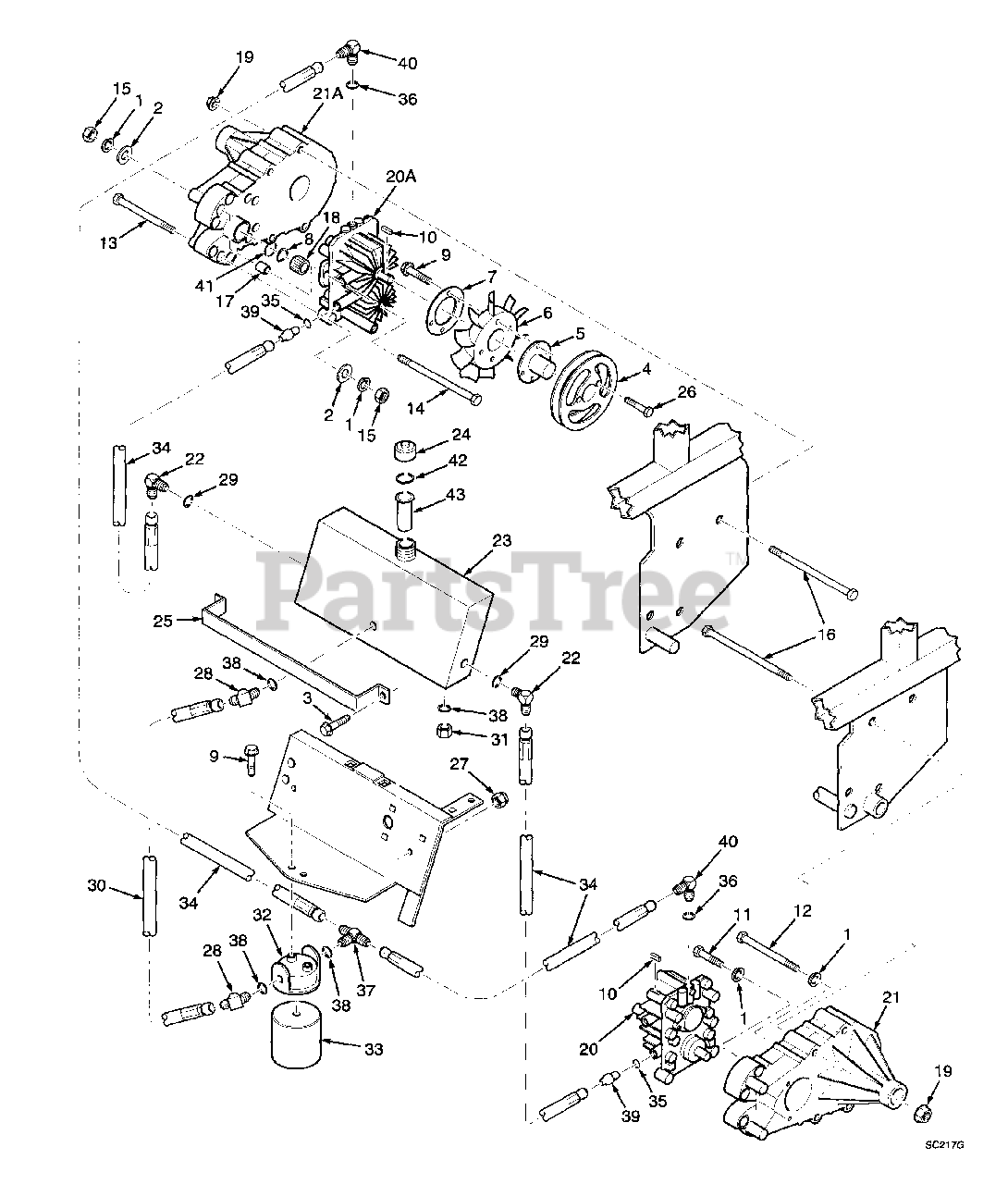

SSZ-22CV - Scag Super Z Zero-Turn Mower, 22hp Kohler (SN: 70000 - 79999) Hydraulic Components Parts Diagram

Super Z Zero-Turn Mower, 22hp Kohler

Hydraulic Components Parts Diagram

  • Title

1

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

2

Scag 04040-04

Flatwasher, 5/16" (.344 x .688 x .065)

$0.99

$

In Stock, Qty 20+

0

3

Scag 04017-05

Bolt, Serrated Flange Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

4

Scag 48790

Pump, Pulley
(Superseded to 483286)

$37.99

$

In Stock, Qty 10

0

5

Scag 48791

Tapered Hub, 15mm Bore

$

$

Not available

6

Scag 48789

Fan
(Superseded to 482133)

$28.99

$

Usually ships in 2-12 days

0

7

Scag 421209

Washer, Back-up

$

$

Not available

8

Scag 04050-13

Snap Ring

$0.99

$

In Stock, only 3 left!

0

9

Scag 04017-04

Bolt, Serrated Flange Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 20+

0

10

Scag 04063-14

Key, 5mm x 5mm x 25mm

$0.99

$

In Stock, Qty 5

0

11

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04001-96

Bolt, Hex Head 5/16-18 x 4-1/2"

$2.49

$

Usually ships in 2-12 days

0

13

Scag 04001-95

Bolt, Hex Head 5/16-18 x 5"

$2.49

$

In Stock, Qty 6

0

14

Scag 04001-94

Bolt, Hex Head 5/16-18 x 7-1/2"

$3.49

$

In Stock, only 2 left!

0

15

Scag 04020-03

Nut, Hex 5/16-18

$0.99

$

In Stock, only 1 left!

0

16

Scag 04001-30

Bolt, Hex Head 3/8-16 x 4"

$1.49

$

In Stock, only 2 left!

0

17

Scag 48878

Spacer

$5.49

$

Usually ships in 2-12 days

0

18

Scag 48875

Gear

$

$

Not available

19

Scag 04019-04

Nut, Serrated Flange Hex Head 3/8-16

$0.99

$

In Stock, Qty 20+

0

20

Scag 48784

Pump, LH

Note: Includes spacers

$

$

Not available

20A

Scag 48785

Pump, RH

Note: Includes spacers

$

$

Not available

21

Scag 481097

Axle, LH

Note: Includes brake lever

$

$

Not available

21A

Scag 481224

Axle, RH

Note: Includes brake lever

$

$

Not available

22

Scag 48350-09

Elbow, 90ø 9/16-18 JIC to 9/16-18 "O" Ring

$25.99

$

In Stock, only 1 left!

0

23

Scag 48860

Oil Tank Reservoir

$

$

Not available

24

Scag 48894

Cap, Oil Reservoir

$

$

Not available

25

Scag 421208

Strap, Oil Reservoir

$

$

Not available

26

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 5

0

27

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

28

Scag 48485-01

Elbow, 45 Degree 3/4-16 JIC to 3/4-16 "O" Ring

$23.99

$

Usually ships in 2-12 days

0

29

Scag 48603-06

"O" Ring, 5/64 x 15/32 ID

$6.99

$

In Stock, only 2 left!

0

30

Scag 48872

Hose Assembly, Filter Inlet
(Superseded to 482088)

$46.99

$

In Stock, only 1 left!

0

31

Scag 48604-02

Plug, 3/4-16 "O" Ring

$8.99

$

Usually ships in 2-12 days

0

32

Scag 48462-02

Head, Oil Filter

$40.99

$

Usually ships in 2-12 days

0

33

Scag 48462-01

Oil Filter, Special

$25.99

$

In Stock, Qty 20+

0

34

Scag 48871

Hose Assembly

$38.99

$

Usually ships in 2-12 days

0

35

Scag 48603-04

"O" Ring, 3/32 x 3/4 ID

$8.99

$

In Stock, only 2 left!

0

36

Scag 48603-03

"O" Ring, 1/16 x 3/8 ID

$3.49

$

Usually ships in 2-12 days

0

37

Scag 48810-01

1/2" T-fitting, 3/4-16 JIC to 3/4-16 "O" Ring

$33.99

$

Usually ships in 2-12 days

0

38

Scag 48603-02

"O" Ring, 3/32 x 5/8 ID

$3.49

$

In Stock, only 3 left!

0

39

Scag 48572-02

Tube Union 3/4-16 JIC to 7/8-14 "O" Ring

$12.99

$

Usually ships in 2-12 days

0

40

Scag 48350-10

Elbow, 90 Degree 9/16-18 JIC to 7/16-20 "O" Ring

$25.99

$

Usually ships in 2-12 days

0

41

Scag HG50267

"O" Ring

$2.49

$

Usually ships in 2-12 days

0

42

Scag 481090

Gasket, Hydraulic Tank Cap

$1.49

$

In Stock, only 2 left!

0

43

Scag 481507

Filler Neck Insert

$12.99

$

Usually ships in 2-12 days

0
