SSZ-22CV - Scag Super Z Zero-Turn Mower, 22hp Kohler (SN: 60001 - 69999) Traction Drive Components 52" Parts Diagram

Super Z Zero-Turn Mower, 22hp Kohler

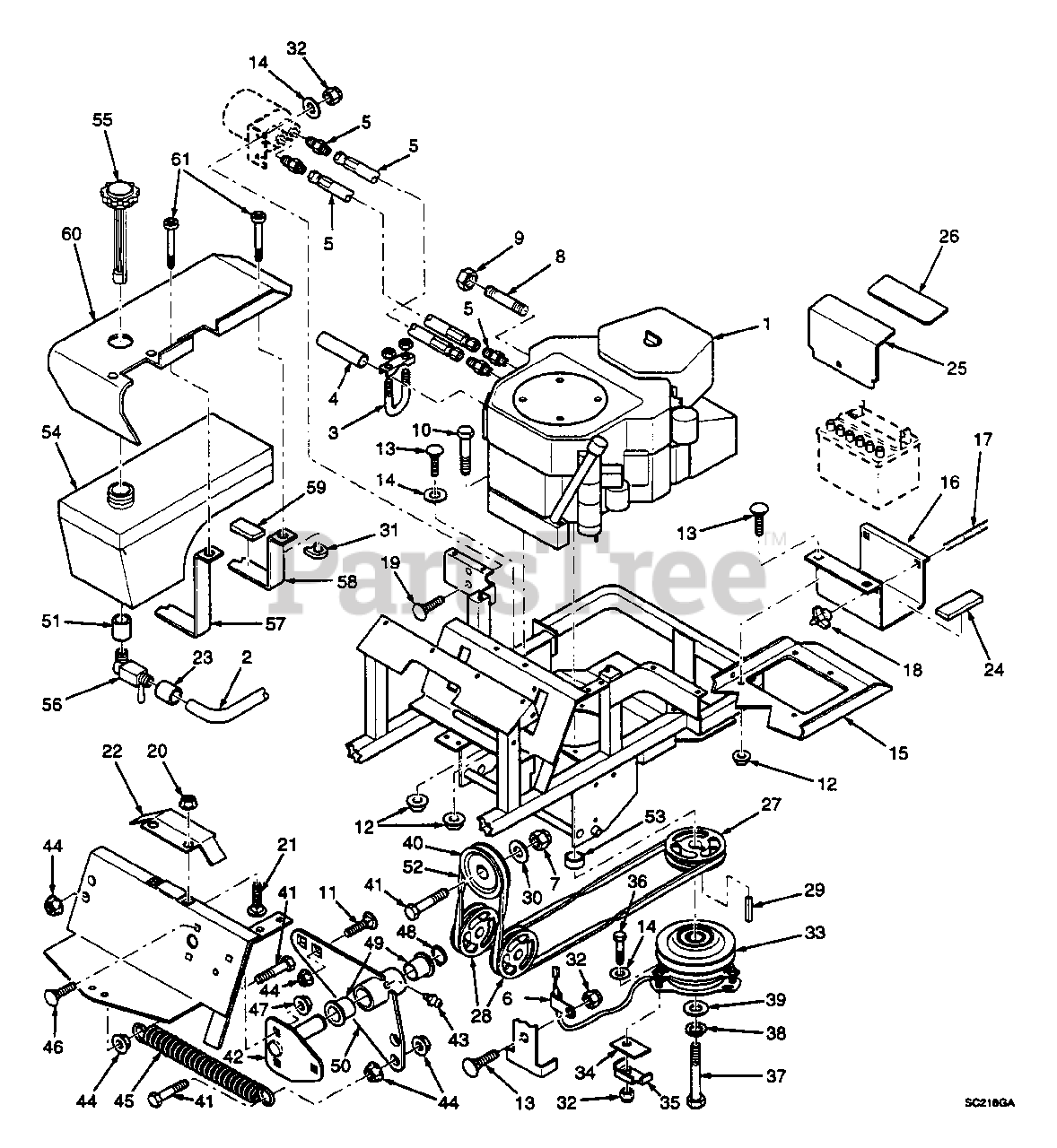

Traction Drive Components 52" Parts Diagram

  • Title

1

Scag 481117

Engine 20 hp Kohler CV For SSZ-20CV

$

$

Not available

Scag 481118

Engine 22 hp Kohler CV For SSZ-22CV

$

$

Not available

2

Scag 48058-03

Fuel Hose
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

3

Scag 48633

Muffler Clamp

$6.49

$

In Stock, only 1 left!

0

4

Scag 48964

Tube, Exhaust

$

$

Not available

5

Kohler Fittings, Purchase From Kohler

$

$

Not available

6

Scag 48030-09

Clamp, 50 ID

$1.49

$

In Stock, Qty 5

0

7

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

8

Scag 48402-02

Extention, 3"

$6.49

$

Usually ships in 2-12 days

0

9

Scag 48257

Pipe Cap

$2.49

$

In Stock, only 1 left!

0

10

Scag 04017-19

Bolt, 5/16-18 x 1-1/2" Serr. Flng. Hex Head

$1.49

$

Usually ships in 2-12 days

0

11

Scag 04003-05

Bolt, 70-16 x 1.50" Carriage

$0.99

$

In Stock, Qty 18

0

12

Scag 04019-03

Nut, Serrated Range Hex Head 5/16-18

$0.99

$

In Stock, Qty 20+

0

13

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04040-15

Flatwasher, 5/16" (.313 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

15

Scag 45479

Fender, LH

$

$

Not available

16

Scag 421197

Battery Box

$43.99

$

In Stock, only 1 left!

0

17

Scag 04003-01

Bolt, Carriage 1/4-20 x 6"
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

18

Scag 04029-01

Wing Nut, 1/4-20

$2.49

$

In Stock, Qty 19

0

19

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

20

Scag 04019-02

Nut, Serrated Flange Hex 1/4-20

$0.99

$

In Stock, Qty 20+

0

21

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

22

Scag 421624

Belt Guard

$

$

Not available

23

Scag 48059-01

Fuel Hose Clamp

$0.99

$

In Stock, Qty 7

0

24

Scag 48661

Rubber Pad

$4.99

$

Usually ships in 2-12 days

0

25

Scag 42392

Battery Cover

$45.99

$

Usually ships in 2-12 days

0

26

Scag 48099

Pad, Battery Cover

$5.99

$

Usually ships in 2-12 days

0

27

Scag 48792

Pulley

$116.99

$

Usually ships in 2-12 days

0

26

Scag 48790

Pulley, Pump
(Superseded to 483286)

$37.99

$

In Stock, Qty 10

0

29

Scag 04063-06

Key, 1/4 x 1/4 x 1-1/2

Note: Not used on this model

$1.49

$

In Stock, only 2 left!

0

30

Scag 04041-07

Flatwasher, 3/8 (.391 x.938 x.105)

$0.99

$

In Stock, Qty 20+

0

31

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 18

0

32

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

33

Scag 48786

Electric Clutch
(Superseded to 461074)

$507.99

$

Usually ships in 2-12 days

0

34

Scag 48814

Rubber Pad, Clutch Stop

$

$

Not available

35

Scag 421564

Backing Plate

$86.99

$

Usually ships in 2-12 days

0

36

Scag 04001-10

Bolt, Hex Head 5/16-18 x 1-1/4

$0.99

$

In Stock, Qty 14

0

37

Scag 04001-101

Bolt, Hex Head 7/16-20 x 2.50

$1.99

$

In Stock, only 3 left!

0

38

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 5

0

39

Scag 04041-18

Flatwasher, 7/16" Special

$

$

Not available

40

Scag 48181

Idler, Pulley

$26.99

$

In Stock, Qty 11

0

41

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1.75

$0.99

$

In Stock, Qty 20+

0

42

Scag 45650

Pivot Weldment, Idler Arm

$

$

Not available

43

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

44

Scag 04019-04

Nut, Serrated Flange Hex 3/8-16

$0.99

$

In Stock, Qty 20+

0

45

Scag 48961

Spring, Pump Drive Idler

$

$

Not available

46

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4

$0.99

$

In Stock, Qty 20+

0

47

Scag 04019-03

Nut, Serrated Flange Hex 5/16-18

$0.99

$

In Stock, Qty 20+

0

48

Scag 04050-05

Ring, Retaining 1.125 Diameter External "E"

$0.99

$

In Stock, Qty 20+

0

49

Scag 48100-02

Bushing, 1.125 Sintered

$3.49

$

In Stock, only 2 left!

0

50

Scag 46755

Idler Arm Weldment, Pump Drive

$

$

Not available

51

Scag 48309

Bushing, Fuel Tank Valve
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

52

Scag 48760

Belt, Pump Drive

$41.99

$

In Stock, only 1 left!

0

53

Scag 43248

Spacer, Crankshaft

$12.99

$

Usually ships in 2-12 days

0

54

Scag 48651

Fuel Tank

Note: Includes shut-off valve

$

$

Not available

55

Scag 48658

Fuel Tank Cap
(Superseded to 483787)

$60.99

$

Usually ships in 2-12 days

0

56

Scag 48308

Fuel Shut-off Valve
(Superseded to 483747)

$29.99

$

In Stock, only 4 left!

0

57

Scag 42944

Fuel Tank Strap, Long

$25.99

$

Usually ships in 2-12 days

0

58

Scag 42945

Fuel Tank Strap, Short

$16.99

$

Usually ships in 2-12 days

0

59

Scag 48657

Rubber Pad

$5.99

$

Usually ships in 2-12 days

0

60

Scag 46505

Fender Assembly, RH

Note: With decal

$

$

Not available

61

Scag 04010-10

Screw, Machine 1/4-20 x 2" Phillips Head

$0.99

$

In Stock, Qty 12

0

62

Scag 04017-19

Bolt, 5/16-18 x 1-1/2 Serr. Flng. Hex Head

$1.49

$

Usually ships in 2-12 days

0

63

Scag 04003-05

Bolt, Carriage 7/8-16 x 1.50"

$0.99

$

In Stock, Qty 18

0

64

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

65

Scag 48030-09

Clamp, .50 ID

$1.49

$

In Stock, Qty 5

0

66

Kohler Fittings, Purchase From Kohler

$

$

Not available
