SSZ-22CV - Scag Super Z Zero-Turn Mower, 22hp Kohler (SN: 50000 - 59999) TRACTION DRIVE COMPONENTS Parts Diagram

Super Z Zero-Turn Mower, 22hp Kohler

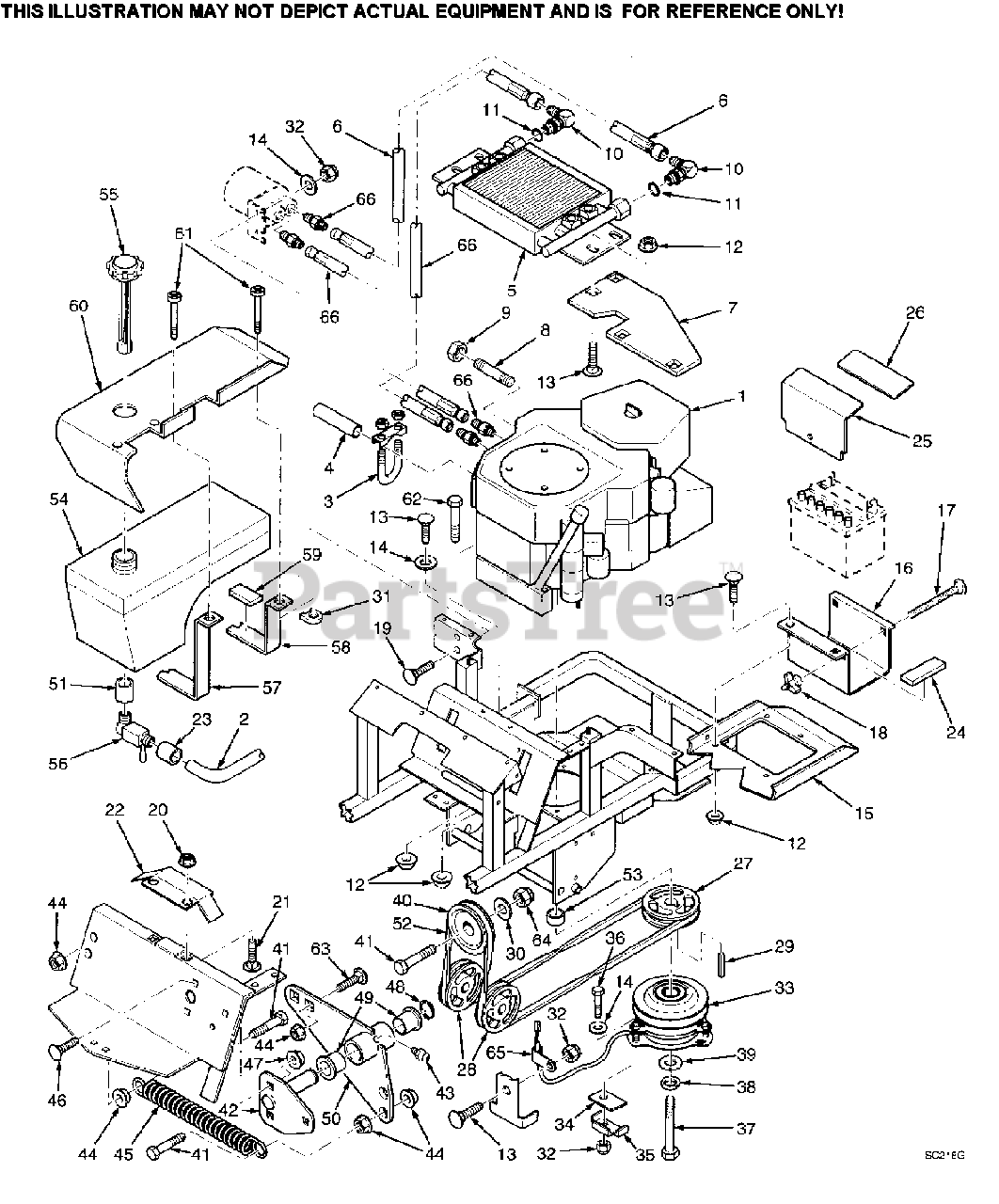

TRACTION DRIVE COMPONENTS Parts Diagram

  • Title

2

Scag 48058-03

FUEL HOSE, 23" LONG
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

3

Scag 48633

MUFFLER CLAMP

$6.49

$

In Stock, only 1 left!

0

4

Scag 48964

TUBE, EXHAUST

$

$

Not available

5

Scag 48645

OIL COOLER

$

$

Not available

6

Scag 48962

HOSE, OIL COOLER

$

$

Not available

7

Scag 421597

MOUNTING BRACKET, OIL COOLER

$7.99

$

Usually ships in 2-12 days

0

8

Scag 48402-02

EXTENSION, 3"

$6.49

$

Usually ships in 2-12 days

0

9

Scag 48257

PIPE CAP

$2.49

$

In Stock, only 1 left!

0

10

Scag 48350-11

ELBOW, 90 DEGREE 1/2-20 SAE TO 3/4-16

$

$

Not available

11

Scag 48603-02

"O" RING

$3.49

$

In Stock, only 3 left!

0

12

Scag 04019-03

NUT, SERRATED FLANGE HEX HEAD 5/16-18

$0.99

$

In Stock, Qty 20+

0

13

Scag 04003-12

BOLT, CARRIAGE 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04040-15

FLATWASHER, 5/16"(.313 X .875 X .083)

$0.99

$

In Stock, Qty 20+

0

15

Scag 45479

FENDER, LH

$

$

Not available

16

Scag 421197

BATTERY BOX

$43.99

$

In Stock, only 1 left!

0

17

Scag 04003-01

BOLT, CARRIAGE 1/4-20 X 6"
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

18

Scag 04029-01

WING NUT, 1/4-20

$2.49

$

In Stock, Qty 19

0

19

BOLT, CARRIAGE 5/16-18 X 1"

$

$

Not available

20

Scag 04019-02

NUT, SERRATED FLANGE HEX 1/4-20

$0.99

$

In Stock, Qty 20+

0

21

Scag 04003-02

BOLT, CARRIAGE 1/4-20 X 3/4"

$0.99

$

In Stock, Qty 20+

0

22

Scag 421624

BELT GUARD

$

$

Not available

23

Scag 48059-01

FUEL HOSE CLAMP

$0.99

$

In Stock, Qty 7

0

24

Scag 48661

RUBBER PAD

$4.99

$

Usually ships in 2-12 days

0

25

Scag 42392

BATTERY COVER

$45.99

$

Usually ships in 2-12 days

0

26

Scag 48099

PAD, BATTERY COVER

$5.99

$

Usually ships in 2-12 days

0

27

Scag 48792

PULLEY

$116.99

$

Usually ships in 2-12 days

0

28

Scag 48790

PULLEY, PUMP
(Superseded to 483286)

$37.99

$

In Stock, Qty 10

0

30

Scag 04041-07

FLATWASHER, 3/8"(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

31

Scag 04110-01

U-NUT, 1/4-20

$1.49

$

In Stock, Qty 18

0

32

Scag 04021-10

NUT, ELASTIC STOP 5/16-18

$0.99

$

In Stock, Qty 20+

0

33

Scag 48786

ELECTRIC CLUTCH
(Superseded to 461074)

$507.99

$

Usually ships in 2-12 days

0

34

Scag 48814

RUBBER PAD, CLUTCH STOP

$

$

Not available

35

Scag 421564

BACKING PLATE

$86.99

$

Usually ships in 2-12 days

0

36

Scag 04001-10

BOLT, HEX HEAD 5/16-18 X 1-1/4"

$0.99

$

In Stock, Qty 14

0

37

Scag 04001-101

BOLT, HEX HEAD 7/16-20 X 2.50

$1.99

$

In Stock, only 3 left!

0

38

Scag 04030-05

LOCKWASHER, 7/16"

$0.99

$

In Stock, Qty 5

0

39

Scag 04041-18

FLATWASHER, 7/16" SPECIAL

$

$

Not available

40

Scag 48181

IDLER, PULLEY

$26.99

$

In Stock, Qty 11

0

41

Scag 04001-21

BOLT, HEX HEAD 3/8-16 X 1.75"

$0.99

$

In Stock, Qty 20+

0

42

Scag 45650

PIVOT WELDMENT, IDLER ARM

$

$

Not available

43

Scag 48114-04

GREASE FITTING

$0.99

$

In Stock, Qty 20+

0

44

Scag 04019-04

NUT, SERRATED FLANGE HEX 3/8-16

$0.99

$

In Stock, Qty 20+

0

45

Scag 48961

SPRING, PUMP DRIVE IDLER

$

$

Not available

46

Scag 04003-12

BOLT, CARRIAGE 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

47

Scag 04019-03

NUT, SERRATED FLANGE HEX 5/16-18

$0.99

$

In Stock, Qty 20+

0

48

Scag 04050-05

RING, RETAINING 1.125 DIAMETER EXTERNAL "E"

$0.99

$

In Stock, Qty 20+

0

49

Scag 48100-02

BUSHING, 1.125 SINTERED

$3.49

$

In Stock, only 2 left!

0

50

Scag 46755

IDLER ARM WELDMENT, PUMP DRIVE

$

$

Not available

51

Scag 48309

BUSHING, FUEL TANK VALVE
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

52

Scag 48760

BELT, PUMP DRIVE

$41.99

$

In Stock, only 1 left!

0

53

Scag 43248

SPACER, CRANKSHAFT

$12.99

$

Usually ships in 2-12 days

0

54

Scag 48651

FUEL TANK(INCLUDES SHUT-OFF VALVE)

$

$

Not available

55

Scag 48658

FUEL TANK CAP
(Superseded to 483787)

$60.99

$

Usually ships in 2-12 days

0

56

Scag 48308

FUEL SHUT-OFF VALVE
(Superseded to 483747)

$29.99

$

In Stock, only 4 left!

0

57

Scag 42944

FUEL TANK STRAP, LONG

$25.99

$

Usually ships in 2-12 days

0

58

Scag 42945

FUEL TANK STRAP, SHORT

$16.99

$

Usually ships in 2-12 days

0

59

Scag 48657

RUBBER PAD

$5.99

$

Usually ships in 2-12 days

0

60

Scag 46505

FENDER ASSEMBLY, RH(WITH DECAL)

$

$

Not available

61

Scag 04010-10

SCREW, MACHINE 1/4-20 X 2" PHILLIPS HEAD

$0.99

$

In Stock, Qty 12

0

62

Scag 04017-19

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X

$1.49

$

Usually ships in 2-12 days

0

63

Scag 04003-05

BOLT, CARRIAGE 7/8-16 X 1.50"

$0.99

$

In Stock, Qty 18

0

64

Scag 04021-09

NUT, ELASTIC STOP 3/8-16

$0.99

$

In Stock, Qty 20+

0

65

Scag 48030-09

CLAMP, .50 ID

$1.49

$

In Stock, Qty 5

0

66

KOHLER FITTINGS, PURCHASE FROM KOHLER

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available
