SSZ-22CV - Scag Super Z Zero-Turn Mower, 22hp Kohler (SN: 4230001 - 4239999) 61" Cutter Deck Parts Diagram

Super Z Zero-Turn Mower, 22hp Kohler

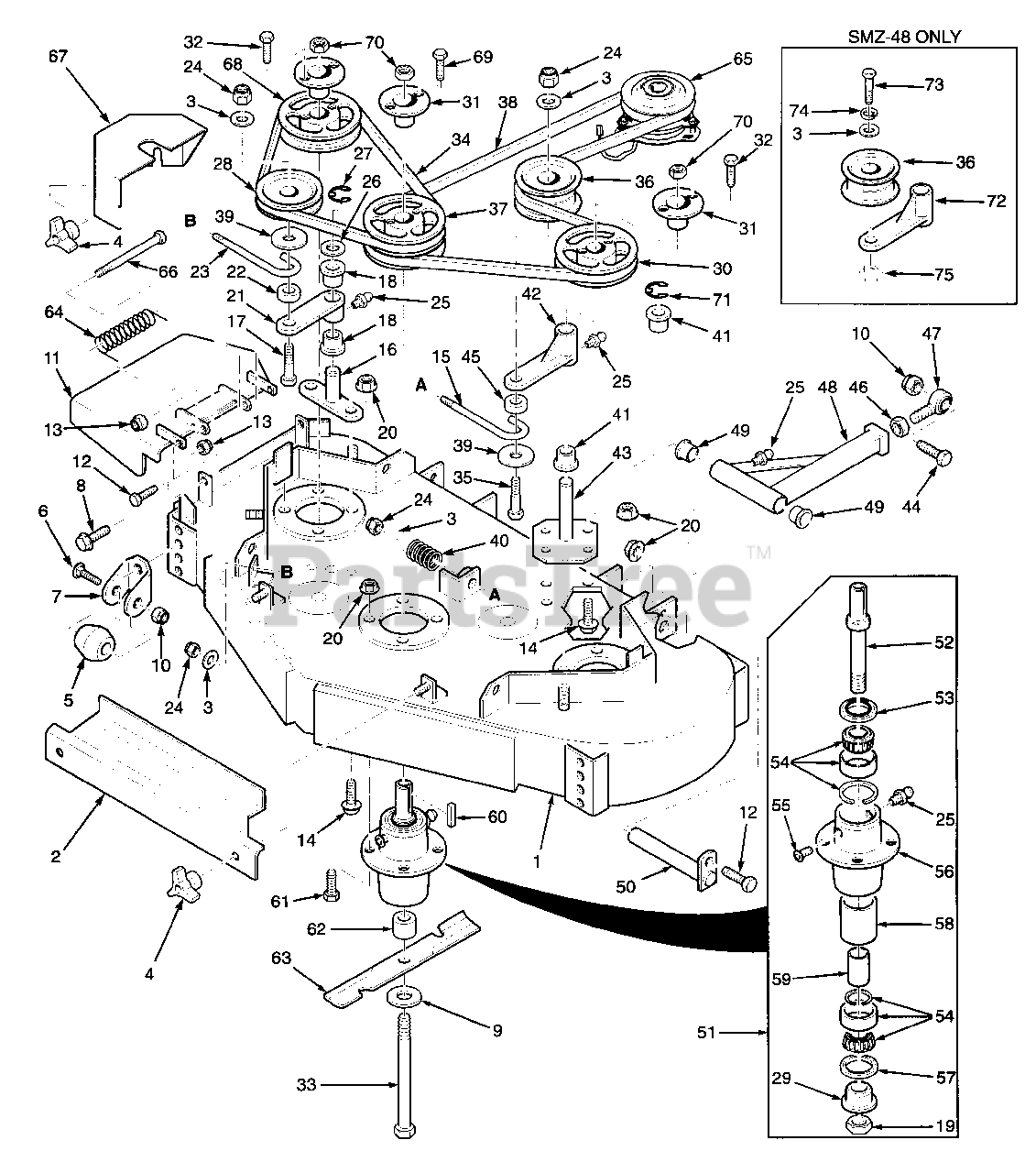

61" Cutter Deck Parts Diagram

  • Title

1

Scag 461140

Cutter Deck

Note: (Includes decals)

$

$

Not available

2

Scag 421299

Belt Cover, Front

$94.99

$

In Stock, only 1 left!

0

3

Scag 04041-07

Flatwasher, 3/8" Spcl. (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

4

Scag 04029-03

Wing Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

5

Scag 481632

Anti-Scalp Wheel

$21.99

$

In Stock, Qty 20+

0

6

Scag 04003-26

Bolt, carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

7

Anti-Scalp Wheel Bracket

Note: (Not used on this model)

$

$

Not available

8

Scag 04017-27

Bolt, Hex Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

9

Scag 04040-10

Flatwasher, 5/8" (.688 x 1.75 x .134)

$0.99

$

In Stock, Qty 11

0

10

Scag 04021-05

Nut, Lock 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

11

Scag 461057

Discharge Chute
(Superseded to 461294)

$68.99

$

In Stock, only 2 left!

0

12

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

13

Scag 04021-10

Nut, Hex Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

14

Scag 04017-16

Bolt, Hex Serrated Flange 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

15

Scag 44101

"J" Rod

$

$

Not available

16

Scag 45037

Idler Pivot Base

$30.99

$

Usually ships in 2-12 days

0

17

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 48100-05

Bushing

$0.99

$

In Stock, only 3 left!

0

19

Scag 481035

Nut, Special 1-1/16-18

$7.99

$

In Stock, only 3 left!

0

20

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

21

Scag 46081

Idler Arm

Note: (Includes bushings & grease fittings)

$46.99

$

Usually ships in 2-12 days

0

22

Scag 43077

Spacer

$4.99

$

In Stock, only 1 left!

0

23

Scag 44078

"J" Rod

$6.99

$

In Stock, only 2 left!

0

24

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

25

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

26

Scag 04041-08

Flatwasher, 3/4"

$0.99

$

In Stock, Qty 20+

0

Scag 04041-08S

Flatwasher, 3/4" Special

$0.99

$

In Stock, Qty 20+

0

27

Scag 04050-02

Ring, Retaining 3/4" External "E"

$0.99

$

In Stock, Qty 7

0

28

Scag 48181

Pulley, Idler

$26.99

$

In Stock, Qty 11

0

29

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

30

Scag 48753

Pulley, LH Spindle
(Superseded to 482745)

$30.99

$

In Stock, Qty 9

0

31

Scag 48926

Tapered Hub, 1-1/8 Bore

$30.99

$

In Stock, Qty 20+

0

32

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

33

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$12.99

$

In Stock, Qty 20+

0

34

Scag 48265

Belt, RH Blade Drive

$40.99

$

In Stock, only 1 left!

0

35

Scag 04001-23

Bolt, Hex Head 3/8-16 x 4-1/2"

$2.49

$

In Stock, Qty 7

0

36

Scag 48550

Pulley, Idler Cutter Engagement
(Superseded to 483210)

$55.99

$

In Stock, only 2 left!

0

37

Scag 48940

Pulley, Double Groove

$184.99

$

Usually ships in 2-12 days

0

38

Scag 48996

Belt, Blade Drive

$123.99

$

Usually ships in 2-12 days

0

39

Scag 04041-12

Flatwasher, 3/8" (.375 x 1.5 x .06)

$0.99

$

In Stock, Qty 9

0

40

Scag 48807

Spring, Idler Tension

$32.99

$

Usually ships in 2-12 days

0

41

Scag 48100-02

Bushing

$3.49

$

In Stock, only 2 left!

0

42

Scag 46750

Idler Arm

Note: (Includes bushings & grease fittings)

$

$

Not available

43

Scag 45329

Idler Pivot Base

$39.99

$

Usually ships in 2-12 days

0

44

Scag 04001-97

Bolt, Hex Head 5/8-11 x 3"

$4.49

$

Usually ships in 2-12 days

0

45

Scag 43282

Spacer

$7.99

$

In Stock, only 1 left!

0

46

Scag 04020-16

Nut, Hex 5/8-18 UNF

$0.99

$

In Stock, Qty 11

0

47

Scag 48763

Rod End

$57.99

$

In Stock, Qty 6

0

48

Scag 461036

Push Arm
(Superseded to 461516)

Note: (Includes 25, 46, 47, and 49)

$211.99

$

In Stock, only 4 left!

0

49

Scag 48100-06

Bushing

$1.49

$

In Stock, only 1 left!

0

50

Scag 45332

Push Arm Shaft
(Superseded to 451240)

$52.99

$

In Stock, Qty 20+

0

51

Scag 46631

Spindle Assembly
(Superseded to 461663)

$257.99

$

In Stock, Qty 20+

0

52

Scag 43298

Spindle Shaft
(Superseded to 43589)

$58.99

$

In Stock, only 1 left!

0

53

Scag 481024

Seal, Top

$4.99

$

In Stock, Qty 20+

0

54

Scag 481022

Bearing Assembly

Note: (1 required per spindle)

$59.99

$

In Stock, Qty 15

0

55

Scag 48667

Relief Fitting, Tapered Spindle

$

$

Not available

56

Scag 43294

Spindle Housing
(Superseded to 43644)

$58.99

$

In Stock, only 2 left!

0

57

Scag 481025

Seal, Bottom

$4.99

$

In Stock, Qty 20+

0

58

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

59

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

60

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

61

Scag 04001-10

Bolt, Hex Head 5/16-18 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

62

Scag 43279

Spacer, Tapered Spindle
(Superseded to 43591)

$11.99

$

Usually ships in 2-12 days

0

63

Scag 48111

Cutter Blade, 21" Standard
(Superseded to 481708)

$26.99

$

In Stock, Qty 20+

0

Scag 48304

Cutter Blade, 21" High Lift
(Superseded to 481712)

$51.99

$

Usually ships in 2-12 days

0

64

Scag 481050

Spring, Discharge Chute
(Superseded to 482245)

$10.99

$

In Stock, Qty 5

0

65

Scag 461073

Electric Clutch
(Superseded to 461397)

$306.99

$

In Stock, only 1 left!

0

66

Scag 04001-108

Bolt, Hex Head 5/16-18 x 4.25"

$2.49

$

In Stock, Qty 9

0

67

Scag 421292

Belt Cover, LH

$64.99

$

In Stock, only 1 left!

0

Scag 421293

Belt Cover, RH

$64.99

$

Usually ships in 2-12 days

0

68

Scag 48924

Pulley, RH Spindle
(Superseded to 482744)

$30.99

$

Usually ships in 2-12 days

0

69

Scag 04001-109

Bolt, Hex Head 1/4-20 x 1.375 Full Thread

$2.49

$

In Stock, only 2 left!

0

70

Hex 5/8-11 UNC

$

$

Not available

71

Scag 04050-05

Ring, Retaining 1-1/8" External "E"

$0.99

$

In Stock, Qty 20+

0

72

Idler Arm

Note: (Not used on this model)(Includes bushings & grease fittings)

$

$

Not available

73

Bolt, Hex Head 3/8-16 X 3 3/4"

Note: (Not used on this model)

$

$

Not available

74

Lockwasher 3/8

Note: (Not used on this model)

$

$

Not available

75

Nut, 3/8-16 Special W/Washer

Note: (Not used on this model)

$

$

Not available
