SSZ-22CV - Scag Super Z Zero-Turn Mower, 22hp Kohler (SN: 40000 - 49999) CUTTER DECK CONTROLS Parts Diagram

Super Z Zero-Turn Mower, 22hp Kohler

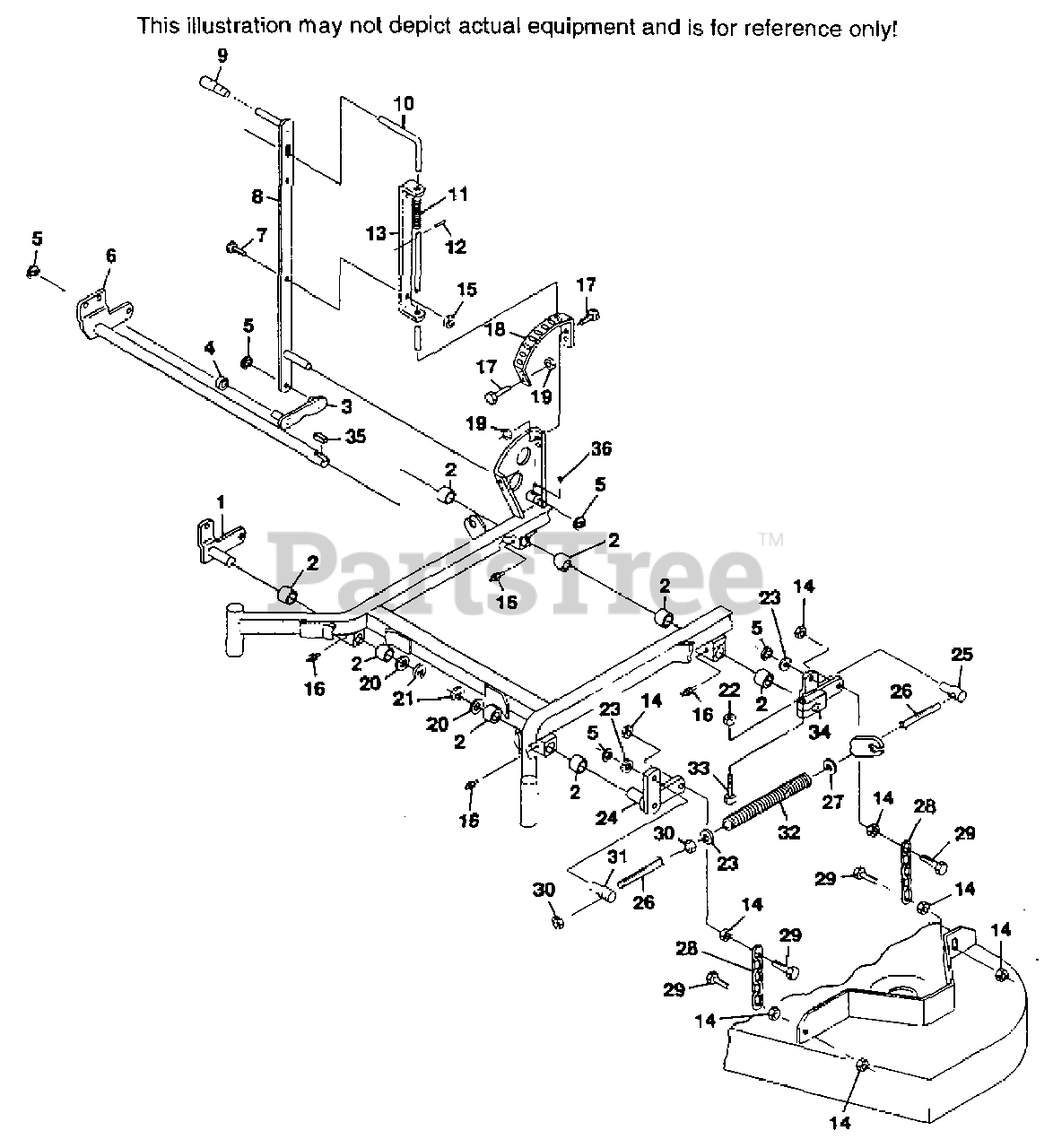

CUTTER DECK CONTROLS Parts Diagram

  • Title

1

Scag 45524

BELLCRANK, LIFT - RIGHT FRONT

$

$

Not available

2

Scag 48100-05

BUSHING

$0.99

$

In Stock, only 3 left!

0

3

Scag 45527

LIFT LINK

$50.99

$

Usually ships in 2-12 days

0

4

Scag 43180

BUSHING

$

$

Not available

5

Scag 04050-01

RETAINING RING, 5/8" EXTERNAL "E"

$0.99

$

In Stock, Qty 20+

0

6

Scag 45523

LIFT ARM WELDMENT

$

$

Not available

7

Scag 04017-17

CAPSCREW, 5/16-18 X 1" SERRATED FLANGE HEX

$0.99

$

Usually ships in 2-12 days

0

8

Scag 46384

HEIGHT ADJUSTMENT LEVER(INCLUDES GRIP)

$

$

Not available

9

Scag 48093

GRIP, LIFT LEVER

$1.99

$

In Stock, only 1 left!

0

10

Scag 44065

ROD, CUTTER DECK LOCK

$

$

Not available

11

Scag 48053

SPRING, DECK LIFT INDEX

$5.99

$

Usually ships in 2-12 days

0

12

Scag 04060-01

ROLL PIN, 5/32 X 3/4"

$0.99

$

Usually ships in 2-12 days

0

13

Scag 42887

LOCK ROD GUIDE

$31.99

$

Usually ships in 2-12 days

0

14

Scag 04019-04

NUT 3/8-16 SERRATED FLANGE

$0.99

$

In Stock, Qty 20+

0

15

Scag 04019-03

NUT, 5/16-18 SERRATED FLANGE

$0.99

$

In Stock, Qty 20+

0

16

Scag 48114-04

GREASE FITTING

$0.99

$

In Stock, Qty 20+

0

17

Scag 04017-05

CAPSCREW, 1/4-20 X 3/4" SERRATED FLANGE HEX

$0.99

$

In Stock, Qty 20+

0

18

Scag 42828

STRIP, HEIGHT ADJUSTMENT

$132.99

$

Usually ships in 2-12 days

0

19

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE

$0.99

$

In Stock, Qty 20+

0

20

Scag 04041-08S

FLAT WASHER, 3/4" SPECIAL

$0.99

$

In Stock, Qty 20+

0

21

Scag 04050-02

RETAINING RING, 3/4" EXTERNAL "E"

$0.99

$

In Stock, Qty 7

0

22

ELASTIC STOP NUT 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

23

Scag 04040-09

FLAT WASHER, 5/8" SPECIAL

$0.99

$

In Stock, Qty 12

0

24

Scag 45313

BELLCRANK, LIFT - LEFT FRONT

$

$

Not available

25

Scag 43271

SWIVEL JOINT - LH

$

$

Not available

26

Scag 04004-15

ADJUSTMENT STUD

$

$

Not available

27

Scag 04040-10

FLAT WASHER, 5/8" ID

$0.99

$

In Stock, Qty 11

0

28

Scag 48540

CHAIN
(Superseded to 482628)

$11.99

$

In Stock, only 3 left!

0

29

HEX HEAD BOLT, 3/8-16 X 1-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

30

HEX NUT, 5/8-11

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

31

Scag 43270

SWIVEL JOINT - RH

$

$

Not available

32

Scag 48953

SPRING, DECK LIFT

$

$

Not available

33

HEX HEAD BOLT, 3/8-16 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

34

Scag 45427

BELLCRANK, LIFT - LEFT REAR

$

$

Not available

35

Scag 04063-17

KEY, 3/16 X 3/16 X 1"

$0.99

$

Usually ships in 2-12 days

0

36

Scag 48114-05

GREASE FITTING

$1.49

$

In Stock, Qty 9

0
