SSZ-22CV - Scag Super Z Zero-Turn Mower, 22hp Kohler (SN: 3470001 - 3479999) Axle Assembly Parts Diagram

Super Z Zero-Turn Mower, 22hp Kohler

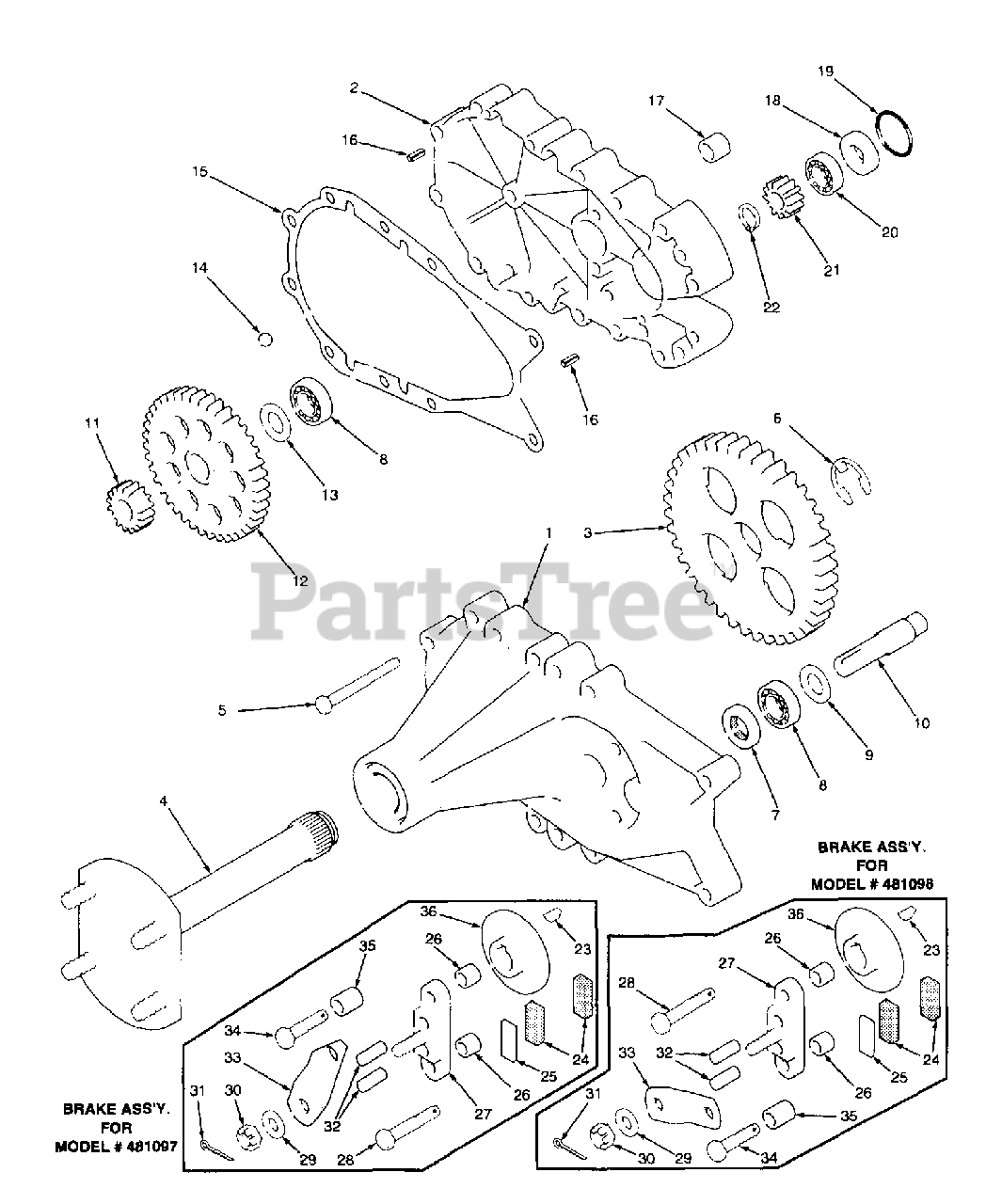

Axle Assembly Parts Diagram

  • Title

1

Scag HG62768

Axle Housing Assembly

$

$

Not available

2

Scag HG44533

Hydro Mount Housing

$

$

Not available

3

Scag HG44358

Splined 72 Tooth Final Drive Gear

$

$

Not available

4

Scag HG62681

Axle Shaft Assembly

$405.99

$

Usually ships in 2-12 days

0

5

Scag HG44366

Bolt, 1/4-20 x 2-1/2" Hex Head

$

$

Not available

6

Scag HG44359

E-Ring .875

$6.49

$

Usually ships in 2-12 days

0

7

Scag HG50263

Oil Seal, 1.25 x .625

$6.49

$

Usually ships in 2-12 days

0

8

Scag HG44147

Ball Bearing, .62 ID x 1.38 x .44

$27.99

$

Usually ships in 2-12 days

0

9

Scag HG44371

Washer, HT .62 ID x 1.0 OD x .05 Thick

$2.49

$

Usually ships in 2-12 days

0

10

Scag HG44351

Brake Shaft (Splined)

$178.99

$

In Stock, only 1 left!

0

11

Scag HG50419

Splined Reduction Gear, 17 Tooth

$94.99

$

Usually ships in 2-12 days

0

12

Scag HG50420

Splined 60 Tooth Gear

$145.99

$

Usually ships in 2-12 days

0

13

Scag HG44371

Washer, HT .62 ID x 1.0 OD x .05 Thick

$2.49

$

Usually ships in 2-12 days

0

14

Scag HG9001214-3700

Ball, 3/8" Diameter

$

$

Not available

15

Scag HG50223

Gasket, Housing

$23.99

$

Usually ships in 2-12 days

0

16

Scag HG44269

Pin, Spring 3/16" x 1/2" x 12" Long

$

$

Not available

17

Scag HG23747

Mounting, Spacer

$

$

Not available

18

Scag HG44232

Bearing, Spacer

$34.99

$

Usually ships in 2-12 days

0

19

Scag HG50267

O-Ring

$2.99

$

Usually ships in 2-12 days

0

20

Scag HG44232

Ball Bearing, 15mm x 35mm x 11mm

$34.99

$

Usually ships in 2-12 days

0

21

Scag HG44353

Input Gear, 11 Tooth
(Superseded to 48875)

$82.99

$

Usually ships in 2-12 days

0

22

Scag HG44354

Retaining Ring

$2.49

$

Usually ships in 2-12 days

0

23

Scag HG44143

Key, Hi Pro 3/16 x 5/8

$7.49

$

Usually ships in 2-12 days

0

24

Scag HG44132

Puck, Brake

$5.99

$

In Stock, only 3 left!

0

25

Scag HG44134

Plate, Puck

$2.99

$

Usually ships in 2-12 days

0

26

Scag HG23770

Brake Spacer

$4.99

$

Usually ships in 2-12 days

0

27

Scag HG62589

Brake Yoke Assembly

$

$

Not available

28

Scag HG44276

Bolt, 1/4-20 x 1-1/2" w/Patch

$

$

Not available

29

Scag HG44130

Washer, 7/16 x 7/8 OD x .06 HT

$

$

Not available

30

Scag HG44142

Nut, Castle 5/16-24 PL

$

$

Not available

31

Scag HG44101

Pin, Cotter

$

$

Not available

32

Scag HG44127

Pin, Brake Actuating

$2.99

$

Usually ships in 2-12 days

0

33

Scag HG44094

Arm, Brake Actuator (LH Assy.)

$11.99

$

Usually ships in 2-12 days

0

33

Scag HG44613

Arm, Brake Actuator (RH Assy.)

$14.99

$

Usually ships in 2-12 days

0

34

Scag HG44612

Bolt, 1/4-20 x 2-1/2"

$

$

Not available

35

Scag HG23711

Spacer, Torsion Spring

$

$

Not available

36

Scag HG44090

Disc, Brake

$17.99

$

Usually ships in 2-12 days

0
