SSZ-20CV - Scag Super Z Zero-Turn Mower, 20hp Kohler (SN: 50000 - 59999) INSTRUMENT PANEL AND ELECTRICAL COMPONENTS Parts Diagram

Super Z Zero-Turn Mower, 20hp Kohler

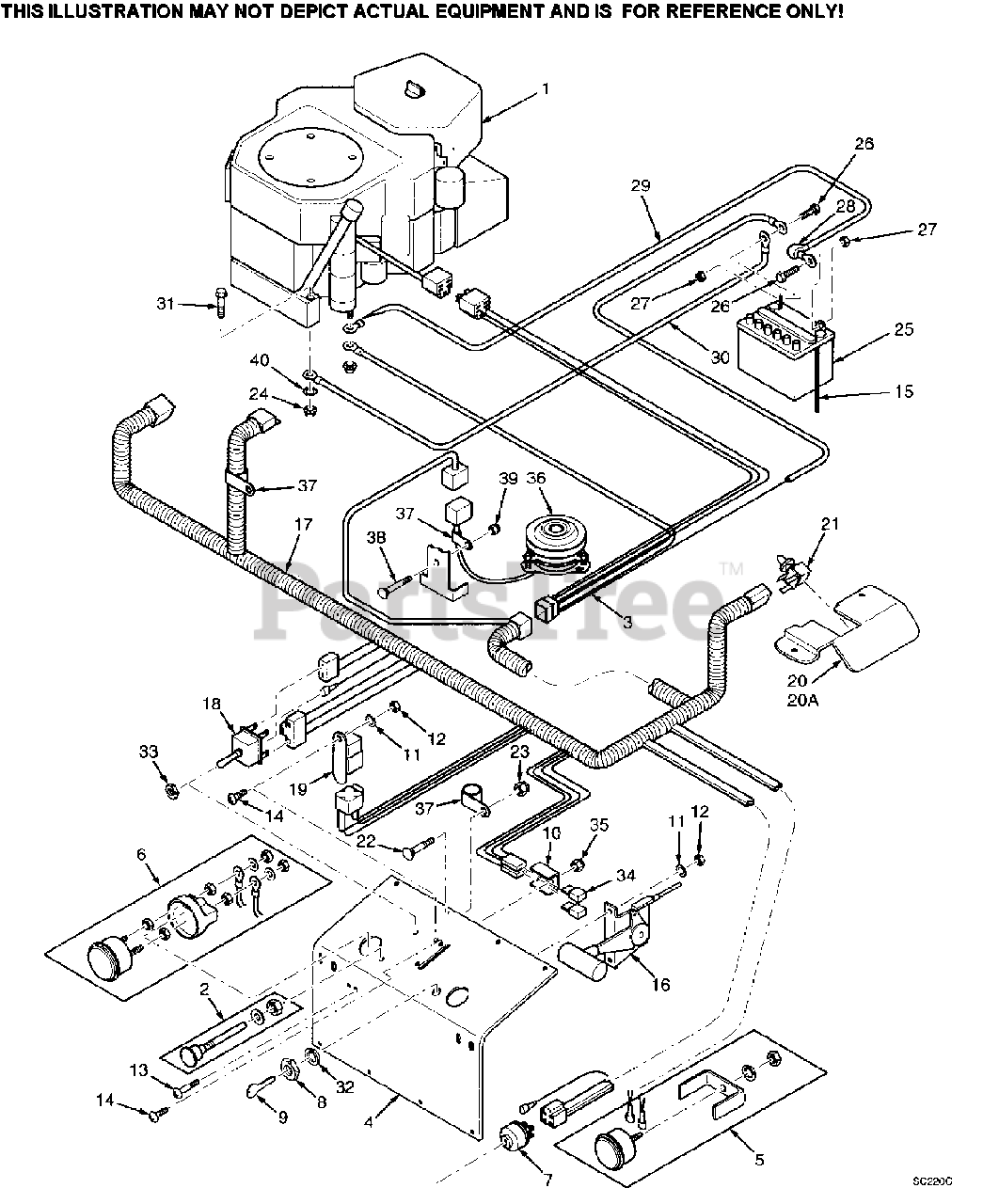

INSTRUMENT PANEL AND ELECTRICAL COMPONENTS Parts Diagram

  • Title

2

Scag 48780

CHOKE CONTROL

$

$

Not available

3

Scag 481070

ADAPTER

$44.99

$

Usually ships in 2-12 days

0

4

Scag 421251

KICK PLATE

$

$

Not available

5

Scag 48023

HOUR METER

$157.99

$

Usually ships in 2-12 days

0

6

Scag 48022

AMMETER
(Superseded to 487596)

$64.99

$

Usually ships in 2-12 days

0

7

Scag 48798

KEY SWITCH(INCLUDES MOUNTING HARDWARE)

$27.99

$

In Stock, Qty 20+

0

8

Scag 48017-04

NUT, HEX 5/8-32

$1.49

$

In Stock, Qty 5

0

9

Scag 48017-02

KEY & RING ASSEMBLY

$3.99

$

In Stock, Qty 9

0

10

Scag 42413

BRACKET, FUSE HOLDER

$40.99

$

Usually ships in 2-12 days

0

11

Scag 04031-01

LOCKWASHER, #10 EXTERNAL TOOTH

$0.99

$

In Stock, Qty 20+

0

12

Scag 04020-07

NUT, HEX #10-32

$0.99

$

In Stock, only 3 left!

0

13

Scag 04010-11

SCREW, PHILLIPS WASHER HEAD #10-32 X 1-1/2"

$0.99

$

Usually ships in 2-12 days

0

14

Scag 04010-01

SCREW, PHILLIPS WASHER HEAD #10-32 X 1/2"

$0.99

$

In Stock, Qty 20+

0

15

Scag 48015-01

OVERFLOW TUBE

$

$

Not available

16

Scag 48879

THROTTLE CONTROL

$60.99

$

Usually ships in 2-12 days

0

17

Scag 481060

WIRE HARNESS
(Superseded to 481269)

$263.99

$

Usually ships in 2-12 days

0

18

Scag 48787

SWITCH, MOWER ENGAGEMENT ELECTRIC CLUTCH

$37.99

$

In Stock, only 1 left!

0

19

Scag 48788

RELAY

$28.99

$

In Stock, only 2 left!

0

20

Scag 421253

NEUTRAL LOCK BRACKET, RH

$58.99

$

In Stock, only 1 left!

0

20A

Scag 421252

NEUTRAL LOCK BRACKET, LH

$

$

Not available

21

Scag 48522

SWITCH NEUTRAL LOCK
(Superseded to 481474)

$103.99

$

In Stock, only 1 left!

0

22

Scag 04003-12

BOLT, CARRIAGE 5/16-18 X .75"

$0.99

$

In Stock, Qty 20+

0

23

Scag 04021-10

NUT, ELASTIC STOP 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 04019-03

NUT, SERRATED FLANGE HEX 5/16-18

$0.99

$

In Stock, Qty 20+

0

25

Scag 48015

BATTERY

$

$

Not available

26

Scag 04001-44

BOLT, HEX HEAD 1/4-20 X 1/2"

$0.99

$

In Stock, Qty 6

0

27

Scag 04020-02

NUT, HEX 1/4-20

$0.99

$

In Stock, Qty 10

0

28

Scag 48126

RUBBER BOOT

$8.49

$

Usually ships in 2-12 days

0

29

Scag 48029-13

BATTERY CABLE, 25" RED

$13.99

$

In Stock, only 1 left!

0

30

Scag 48029-11

BATTERY CABLE, 27" BLACK

$14.99

$

In Stock, only 1 left!

0

31

Scag 04017-19

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X

$1.49

$

Usually ships in 2-12 days

0

32

Scag 48017-03

LOCKWASHER, 5/8" INTERNAL

$0.99

$

In Stock, Qty 6

0

33

Scag 48787-01

NUT, HEX 1/2-27

$2.99

$

Usually ships in 2-12 days

0

34

Scag 48298

FUSE, BLADE TYPE 20 AMP

$3.99

$

Usually ships in 2-12 days

0

35

Scag 04021-01

NUT, ELASTIC STOP #10-32

$0.99

$

In Stock, Qty 10

0

36

Scag 48786

ELECTRIC CLUTCH
(Superseded to 461074)

$507.99

$

Usually ships in 2-12 days

0

37

Scag 48030-09

CLAMP

$1.49

$

In Stock, Qty 5

0

38

Scag 04003-12

BOLT, CARRIAGE 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

39

Scag 04021-10

NUT, ELASTIC STOP 5/16-18

$0.99

$

In Stock, Qty 20+

0

40

Scag 04031-09

LOCKWASHER, 5/16" INTERNAL TOOTH

$0.99

$

In Stock, Qty 8

0
