SSZ-18CV - Scag Super Z Zero-Turn Mower, 18hp Kohler (SN: 70000 - 79999) 48" Cutter Deck Controls Parts Diagram

Super Z Zero-Turn Mower, 18hp Kohler

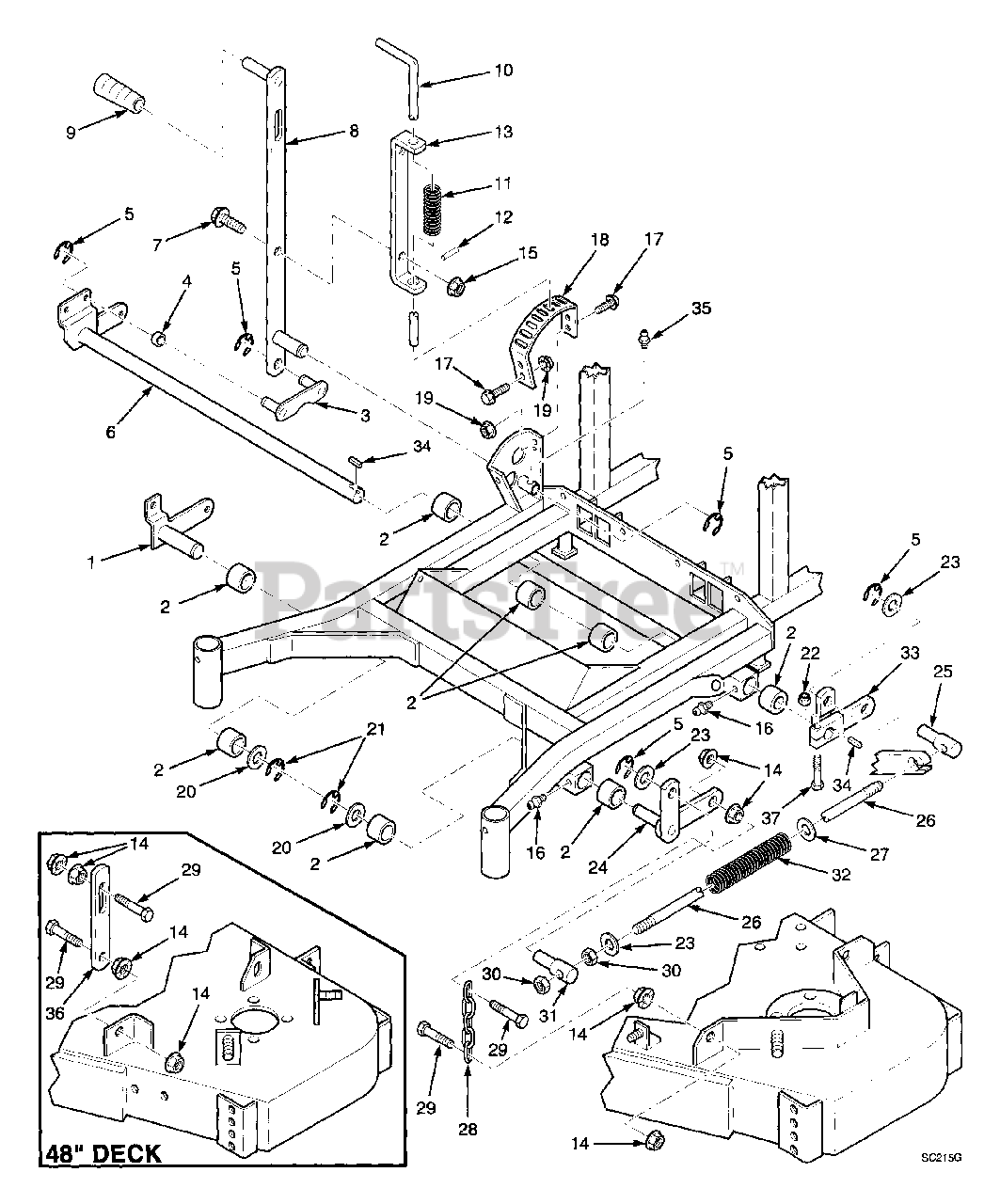

48" Cutter Deck Controls Parts Diagram

  • Title

1

Scag 45524

Bellcrank, Lift - Right Front

$

$

Not available

2

Scag 48100-05

Bushing

$0.99

$

In Stock, only 3 left!

0

3

Scag 45527

Lift Link

$50.99

$

Usually ships in 2-12 days

0

4

Scag 43180

Bushing

Note: Not used on this model.

$

$

Not available

5

Scag 04050-01

Retaining Ring, 5/8" External "E"

Note: Not used on this model.

$0.99

$

In Stock, Qty 20+

0

6

Scag 45610

Lift Arm Weldment

$

$

Not available

7

Scag 04017-17

Bolt, Serrated Flange Hex Head 5/16-18 x 1"

$0.99

$

Usually ships in 2-12 days

0

8

Scag 46384

Height Adjustment Lever

Note: Includes grip

$

$

Not available

9

Scag 48093

Grip, Lever Lift

$1.99

$

In Stock, only 1 left!

0

10

Scag 44065

Rod, Cutter Deck Lock

$

$

Not available

11

Scag 48053

Spring, Deck Lift Index

$5.99

$

Usually ships in 2-12 days

0

12

Scag 04060-01

Roll Pin, 5/32 x 3/4"

Note: Not used on this model.

$0.99

$

Usually ships in 2-12 days

0

13

Scag 42887

Lock, Rod Guide

$31.99

$

Usually ships in 2-12 days

0

14

Scag 04019-04

Nut, Serrated Flange Hex 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 04019-03

Nut, Serrated Flange Hex 5/16-18

Note: Not used on this model.

$0.99

$

In Stock, Qty 20+

0

16

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

17

Scag 04017-05

Bolt, Serrated Flange Hex Head 1/4-20 x 3/4"

Note: Not used on this model.

$0.99

$

In Stock, Qty 20+

0

18

Scag 42828

Strip, Height Adjustment

$132.99

$

Usually ships in 2-12 days

0

19

Scag 04019-02

Nut, Serrated Flange Hex 1/4-20

Note: Not used on this model.

$0.99

$

In Stock, Qty 20+

0

20

Scag 04041-08S

Flatwasher, 3/4" (.766 x 1.250 x.075)

Note: Not used on this model.

$0.99

$

In Stock, Qty 20+

0

21

Scag 04050-02

Ring, Retaining 3/4" External "E"

Note: Not used on this model.

$0.99

$

In Stock, Qty 7

0

22

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 04040-09

Flatwasher, 5/8" (.656 x 1.312 x .075)

$0.99

$

In Stock, Qty 12

0

24

Scag 45313

Bellcrank, Lift - Left Front

$

$

Not available

25

Scag 43271

Swivel Joint - LH THD

$

$

Not available

26

Scag 04004-18

Adjustment Stud

$

$

Not available

27

Scag 04040-10

Flatwasher, 5/8" (.688 x 1.75 x .134)

$0.99

$

In Stock, Qty 11

0

28

Scag 48540

Chain
(Superseded to 482628)

Note: Not used on this model.

$11.99

$

In Stock, only 3 left!

0

29

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

30

Scag 04020-09

Nut, Hex 5/8-11

$0.99

$

In Stock, Qty 20+

0

31

Scag 43270

Swivel Joint - RH

$

$

Not available

32

Scag 481045

Spring, Deck Lift

$

$

Not available

33

Scag 45427

Bellcrank

$

$

Not available

34

Scag 04063-15

Key, 3/16 x 3/16 x .75"

$18.99

$

In Stock, only 2 left!

0

35

Scag 48114-05

Grease Fitting

Note: Not used on this model.

$1.49

$

In Stock, Qty 9

0

36

Scag 421585

Link, Deck Support

$14.99

$

In Stock, only 4 left!

0

37

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 8

0
