SSZ-18CV - Scag Super Z Zero-Turn Mower, 18hp Kohler (SN: 50000 - 59999) HYDRAULIC COMPONENTS Parts Diagram

Super Z Zero-Turn Mower, 18hp Kohler

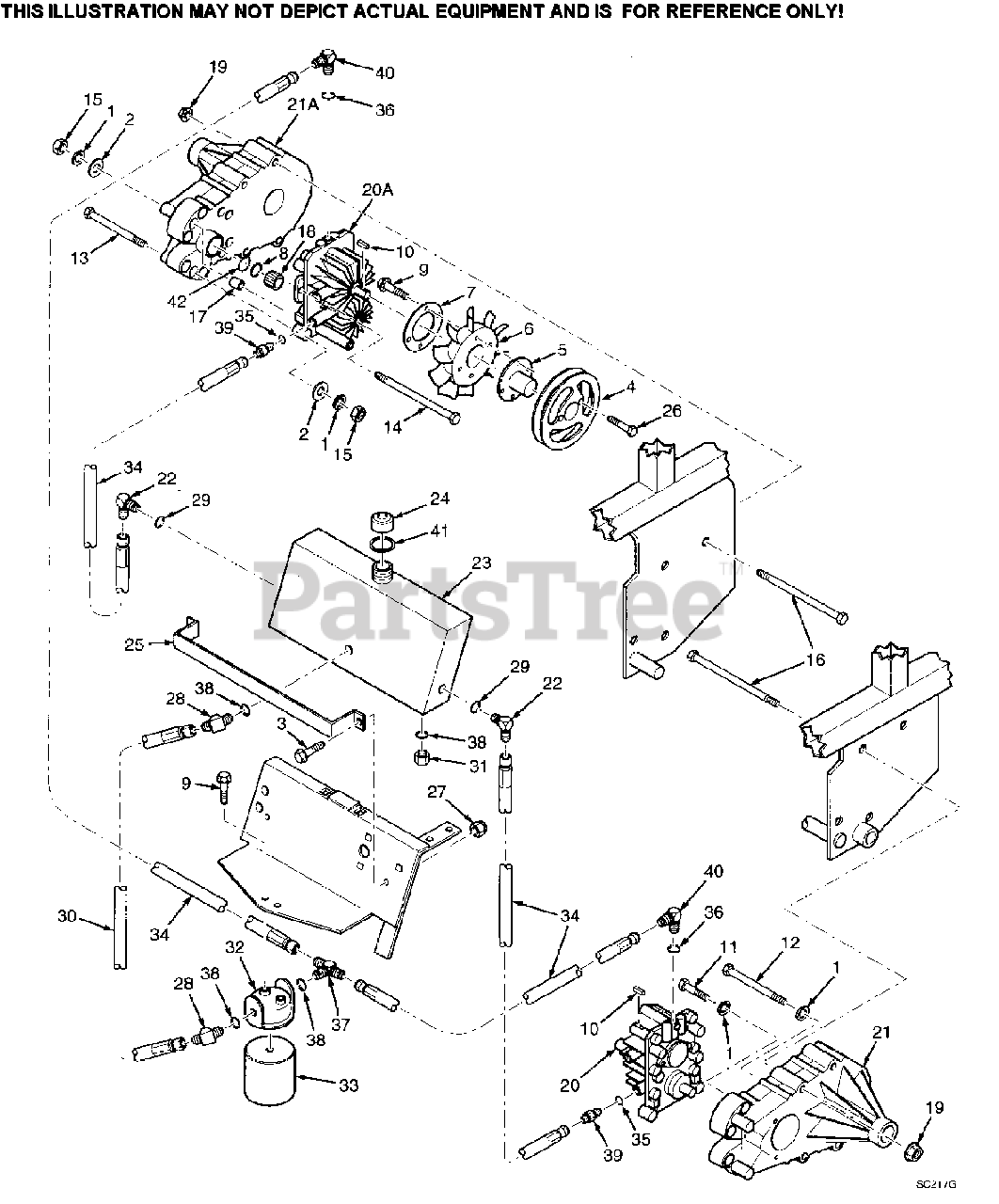

HYDRAULIC COMPONENTS Parts Diagram

  • Title

1

Scag 04030-03

LOCKWASHER, 5/16"

$0.99

$

In Stock, Qty 20+

0

2

Scag 04040-04

FLATWASHER, 5/16"(.344 X .688 X .065)

$0.99

$

In Stock, Qty 20+

0

3

Scag 04017-05

BOLT, SERRATED FLANGE HEX HEAD 1/4-20 X 3/4"

$0.99

$

In Stock, Qty 20+

0

4

Scag 48790

PUMP, PULLEY
(Superseded to 482648)

$38.99

$

In Stock, Qty 12

0

5

Scag 48791

TAPERED HUB, 15 MM BORE

$53.99

$

Usually ships in 2-12 days

0

6

Scag 48789

FAN
(Superseded to 482133)

$34.99

$

Usually ships in 2-12 days

0

7

Scag 421209

WASHER, BACK-UP

$22.99

$

Usually ships in 2-12 days

0

8

Scag 04050-13

SNAP RING

$0.99

$

In Stock, only 3 left!

0

9

Scag 04017-04

BOLT, SERRATED FLANGE HEX HEAD 1/4-20 X 1/2"

$0.99

$

In Stock, Qty 20+

0

10

Scag 04063-14

KEY, 5 MM X 5 MM X 25 MM

$0.99

$

In Stock, Qty 5

0

11

Scag 04001-12

BOLT, HEX HEAD 5/16-18 X 1-3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04001-96

BOLT, HEX HEAD 5/16-18 X 4-1/2"

$2.49

$

Usually ships in 2-12 days

0

13

Scag 04001-95

BOLT, HEX HEAD 5/16-18 X 5"

$2.49

$

In Stock, Qty 6

0

14

Scag 04001-94

BOLT, HEX HEAD 5/16-18 X 7-1/2"

$3.49

$

In Stock, only 2 left!

0

15

Scag 04020-03

NUT, HEX 5/16-18

$0.99

$

In Stock, only 1 left!

0

16

Scag 04001-30

BOLT, HEX HEAD 3/8-16 X 4"

$1.49

$

In Stock, only 2 left!

0

17

Scag 48878

SPACER

$5.99

$

Usually ships in 2-12 days

0

18

Scag 48875

GEAR

$82.99

$

Usually ships in 2-12 days

0

19

Scag 04019-04

NUT, SERRATED FLANGE HEX HEAD 3/8-16

$0.99

$

In Stock, Qty 20+

0

20

Scag 48784

PUMP, LH(INCLUDES SPACERS)

$2792.99

$

Usually ships in 2-12 days

0

20A

Scag 48785

PUMP, RH(INCLUDES SPACERS)

$2239.99

$

Usually ships in 2-12 days

0

21

Scag 481097

AXLE, LH(INCLUDES BRAKE LEVER)

$

$

Not available

21A

Scag 481098

AXLE, RH(INCLUDES BRAKE LEVER)

$

$

Not available

22

Scag 48350-09

ELBOW, 90 DEGREE 9/16-18 JIC TO 9/16-18

$25.99

$

In Stock, only 1 left!

0

23

Scag 48860

OIL TANK RESERVOIR

$

$

Not available

24

Scag 48894

CAP, OIL RESERVOIR

$21.99

$

Usually ships in 2-12 days

0

25

Scag 421208

STRAP, OIL RESERVOIR

$31.99

$

Usually ships in 2-12 days

0

26

Scag 04001-59

BOLT, HEX HEAD 1/4-20 X 1-1/4"

$0.99

$

In Stock, Qty 6

0

27

Scag 04021-08

NUT, ELASTIC STOP 1/4-20

$0.99

$

In Stock, Qty 10

0

28

Scag 48485-01

ELBOW, 45 DEGREE 3/4-16 JIC TO 3/4-16

$23.99

$

Usually ships in 2-12 days

0

29

Scag 48603-06

"O" RING, 5/64 X 15/32 ID

$6.99

$

In Stock, only 2 left!

0

30

Scag 48872

HOSE ASSEMBLY, FILTER INLET
(Superseded to 482088)

$47.99

$

In Stock, only 1 left!

0

31

Scag 48604-02

PLUG, 3/4-16 "O" RING

$9.49

$

Usually ships in 2-12 days

0

32

Scag 48462-02

HEAD, OIL FILTER

$41.99

$

Usually ships in 2-12 days

0

33

Scag 48462-01

OIL FILTER, SPECIAL

$26.99

$

In Stock, Qty 20+

0

34

Scag 48871

HOSE ASSEMBLY

$39.99

$

Usually ships in 2-12 days

0

35

Scag 48603-04

"O" RING, 3/32 X 3/4 ID

$8.99

$

In Stock, only 2 left!

0

36

Scag 48603-03

"O" RING, 1/16 X 3/8 ID

$3.49

$

Usually ships in 2-12 days

0

37

Scag 48810-01

1/2" T-FITTING, 3/4-16 JIC TO 3/4-16

$34.99

$

Usually ships in 2-12 days

0

38

Scag 48603-02

"O" RING, 3/32 X 5/8 ID

$3.49

$

In Stock, only 3 left!

0

39

Scag 48572-02

TUBE UNION 3/4-16 JIC TO 7/8-14 "O" RING

$12.99

$

Usually ships in 2-12 days

0

40

Scag 48350-10

ELBOW, 90 DEGREE 9/16-18 JIC TO 7/16-20

$26.99

$

Usually ships in 2-12 days

0

41

Scag 481090

GASKET, HYDRAULIC TANK CAP

$1.49

$

In Stock, only 2 left!

0

42

Scag 48603-07

"O" RING
(Superseded to HG50267)

$2.99

$

Usually ships in 2-12 days

0
