SSZ-18CV-48 - Scag Super Z 48" Zero-Turn Mower, 18hp Kohler (SN: 4200001 - 4209999) 48" Sheet Metal Components Parts Diagram

Super Z 48" Zero-Turn Mower, 18hp Kohler

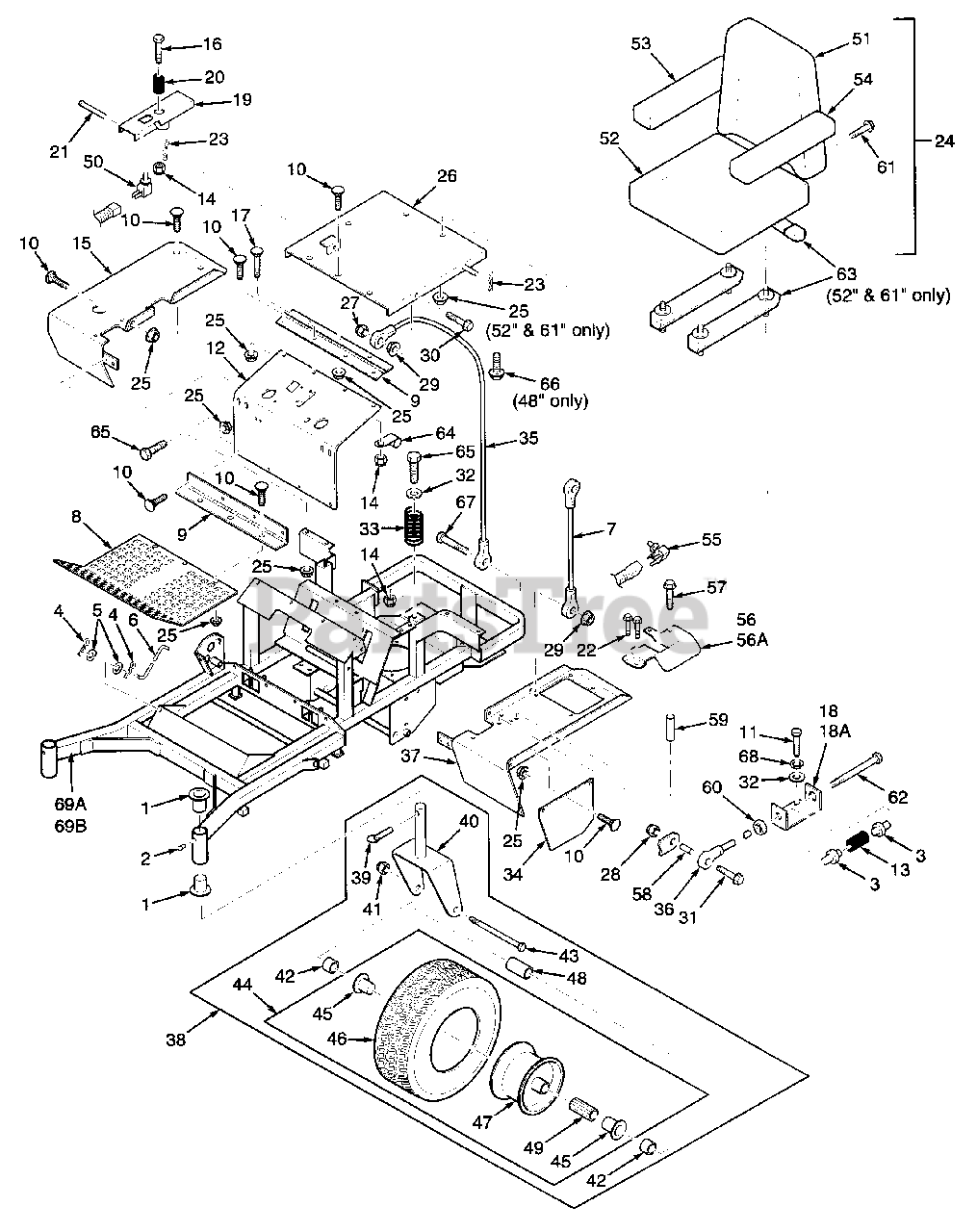

48" Sheet Metal Components Parts Diagram

  • Title

1

Scag 48100-08

Bushing

$5.49

$

In Stock, Qty 6

0

2

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

3

Scag 43257

Bushing, Spring Keeper

$16.99

$

Usually ships in 2-12 days

0

4

Scag 04062-02

Hair Pin, .08 Diameter x 1-3/16"

$0.99

$

In Stock, Qty 20+

0

5

Scag 04041-07

Flatwasher, 3/8" (.391 x .738 x .105)

$0.99

$

In Stock, Qty 20+

0

6

Scag 44062

Rod, Foot Plate Latch

$7.99

$

Usually ships in 2-12 days

0

7

Scag 481086

Cable, Seat Stop

$10.99

$

In Stock, only 1 left!

0

8

Scag 421589

Foot Plate

$

$

Not available

9

Scag 481049

Hinge

$49.99

$

In Stock, only 1 left!

0

10

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

11

Scag 04001-08

Bolt, Serrated Flange Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 422528

Kick Plate

$

$

Currently unavailable

13

Scag 48746

Neutral Return Spring

$180.99

$

Usually ships in 2-12 days

0

14

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 461085

Fender Assembly, RH (with decal)

$

$

Not available

16

Scag 04001-73

Bolt, Hex Head 5/16-18 x 3-3/4"

$1.49

$

In Stock, Qty 9

0

17

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

18

Scag 421411

Retainer, Neutral Spring, LH

$

$

Not available

18A

Scag 421412

Retainer, Neutral Spring, RH

$

$

Not available

19

Scag 45405

Seat Switch Bracket

$33.99

$

Usually ships in 2-12 days

0

20

Scag 48463

Spring

$5.49

$

Usually ships in 2-12 days

0

21

Scag 04064-04

Clevis Pin

$27.99

$

Usually ships in 2-12 days

0

22

Scag 04017-15

Bolt, Serrated Flange Hex Head 5/16-18 x 1/2"

$0.99

$

In Stock, Qty 8

0

23

Scag 04062-02

Hair Pin, Cotter

$0.99

$

In Stock, Qty 20+

0

24

Scag 481532

Seat Assembly
(Superseded to 482027)

$651.99

$

Usually ships in 2-12 days

0

25

Scag 04019-03

Nut, Serrated Flange Hex 5/16-18

$0.99

$

In Stock, Qty 20+

0

26

Scag 46754

Seat Base

$

$

Not available

27

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

28

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

29

Scag 04019-02

Nut, Serrated Flange Hex 1/4-20

$0.99

$

In Stock, Qty 20+

0

30

Scag 04017-06

Bolt, Serrated Flange Hex Head 1/4-20 x 1"

$0.99

$

Usually ships in 2-12 days

0

31

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

32

Scag 04001-15

Flatwasher, 5/16" (.313 x .875 x .083)

$

$

Currently unavailable

33

Scag 481704

Seat Spring

$21.99

$

Usually ships in 2-12 days

0

34

Scag 421198

Fender Panel, LH

$

$

Not available

35

Scag 48566

Cable, Seat Stop

$17.99

$

In Stock, only 1 left!

0

36

Scag 48464

Ball Joint, Neutral

$23.99

$

In Stock, only 1 left!

0

37

Scag 45971

Fender, LH

$

$

Currently unavailable

38

Scag 46392

Caster Wheel Yoke Assembly

$430.99

$

Usually ships in 2-12 days

0

39

Scag 04066-01

Quick Pin

$8.99

$

In Stock, Qty 7

0

40

Scag 45325

Caster Wheel Yoke

$232.99

$

Usually ships in 2-12 days

0

41

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

42

Scag 43041

Spacer

$5.49

$

Usually ships in 2-12 days

0

43

Scag 04001-80

Bolt, Hex Head 1/2-13 x 6-1/2"

$5.99

$

In Stock, Qty 20+

0

44

Scag 48537

Wheel Assembly, Complete

$254.99

$

In Stock, only 2 left!

0

45

Scag 48006-07

Retainer
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

46

Scag 48537-02

Tire Only
(Superseded to 481830)

$64.99

$

In Stock, only 1 left!

0

47

Scag 48537-03

Rim Only
(Superseded to 481829)

$120.99

$

Usually ships in 2-12 days

0

48

Scag 43022

Sleeve

$6.99

$

In Stock, Qty 20+

0

49

Scag 48006-06

Roller Bearing
(Superseded to 481769)

$28.99

$

In Stock, only 2 left!

0

50

Scag 48717

Seat Switch

$10.99

$

In Stock, only 1 left!

0

51

Scag 481532-01

Seat, Back Cushion
(Superseded to 484716)

$191.99

$

Usually ships in 2-12 days

0

52

Scag 481532-02

Seat, Bottom Cushion
(Superseded to 482111)

$270.99

$

Usually ships in 2-12 days

0

53

Scag 481532-03

Arm Pad, RH
(Superseded to 482108)

$49.99

$

In Stock, only 1 left!

0

54

Scag 481532-04

Arm Pad, LH
(Superseded to 482107)

$49.99

$

In Stock, only 1 left!

0

55

Scag 481474

Neutral Interlock Switch

$106.99

$

In Stock, only 1 left!

0

56

Scag 422535

Neutral Lock Bracket, RH

$45.99

$

Usually ships in 2-12 days

0

56A

Scag 422536

Neutral Lock Bracket, LH

$37.99

$

In Stock, only 1 left!

0

57

Scag 04017-24

Bolt, Serrated Flange Hex Head 5/16-18 x 2-3/4"

$2.49

$

Usually ships in 2-12 days

0

58

Scag 43240

Spacer, Neutral Spring

$

$

Not available

59

Scag 43258

Spacer, Neutral Lock Bracket

$

$

Not available

60

Scag 04020-14

Nut, Hex 3/8-24 UNF

$0.99

$

In Stock, only 3 left!

0

61

Scag 48704-06

Bolt, Hex Head w/Washer, 1/4-20 x 3/4"
(Superseded to 04010-22)

$3.49

$

Usually ships in 2-12 days

0

62

Scag 04001-99

Bolt, Hex Head 3/8-24 x 6-1/2", UNF

$3.49

$

Usually ships in 2-12 days

0

63

Scag 46570

Seat Adjustment, Track Set

$212.99

$

Usually ships in 2-12 days

0

64

Scag 48030-09

Cable Clamp, .50 ID

$1.49

$

In Stock, Qty 6

0

65

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

66

Bolt, Serrated Flange Hex Head 5/16-18 x 1"

Note: (Not used on this model)

$

$

Not available

67

Bolt, Hex Head 1/4-20 x 1.25"

Note: (Common hardware which should be purchased locally)

$

$

Not available

68

Lockwasher, 5/16"

Note: (Common hardware which should be purchased locally)

$

$

Not available

69A

Scag 461083

Main Frame Assy.

$

$

Not available

69B

Main Frame Assy.

Note: (Not used on this model)

$

$

Not available
