SSZ-18CV-48 - Scag Super Z 48" Zero-Turn Mower, 18hp Kohler (SN: 4200001 - 4209999) 48" Instrument Panel And Electrical Components Parts Diagram

Super Z 48" Zero-Turn Mower, 18hp Kohler

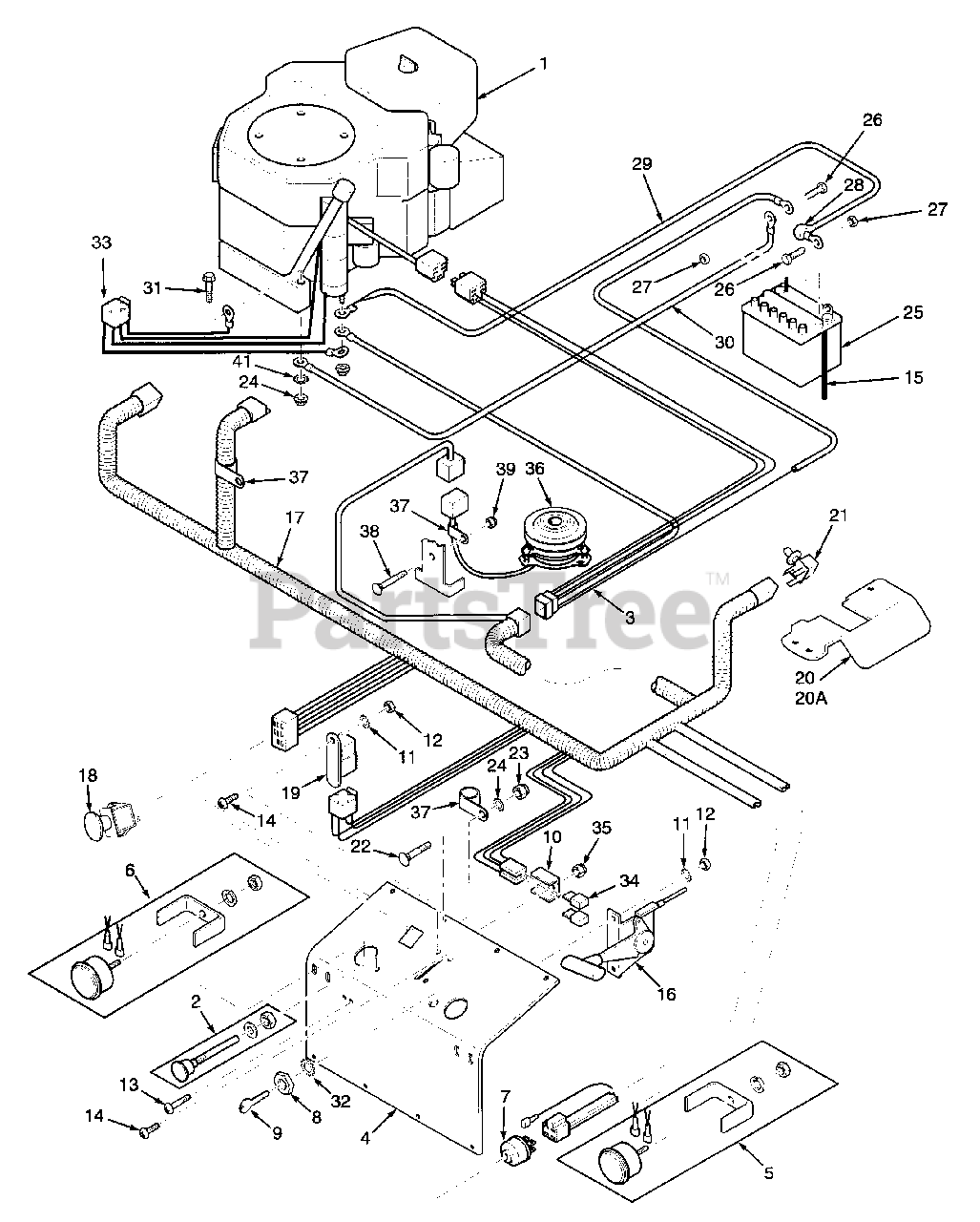

48" Instrument Panel And Electrical Components Parts Diagram

  • Title

1

Scag 481116

Engine 18 hp Kohler CV

$

$

Not available

2

Scag 481278

Choke Control

$

$

Not available

3

Scag 481070

Adapter

$44.99

$

Usually ships in 2-12 days

0

4

Scag 422528

Kick Plate

$

$

Currently unavailable

5

Scag 48023

Hour Meter

$157.99

$

Usually ships in 2-12 days

0

6

Scag 481755

Ammeter
(Superseded to 487596)

$64.99

$

Usually ships in 2-12 days

0

7

Scag 48798

Key Switch

Note: (Includes mounting hardware)

$27.99

$

In Stock, Qty 20+

0

8

Scag 48017-04

Nut, Hex 5/8-32

$1.49

$

In Stock, Qty 5

0

9

Scag 48017-02

Key & Ring Assembly

$3.99

$

In Stock, Qty 9

0

10

Scag 42413

Bracket, Fuse Holder

$40.99

$

Usually ships in 2-12 days

0

11

Scag 04031-01

Lockwasher, #10 External Tooth

$0.99

$

In Stock, Qty 20+

0

12

Scag 04020-07

Nut, Hex #10-32

$0.99

$

In Stock, only 3 left!

0

13

Scag 04010-11

Screw, Phillips Washer Head #10-32 x 1-1/2"

$0.99

$

Usually ships in 2-12 days

0

14

Scag 04010-01

Screw, Phillips Washer Head #10-32 x 1/2"

$0.99

$

In Stock, Qty 20+

0

15

Scag 48015-01

Overflow Tube

$

$

Not available

16

Scag 48879

Throttle Control

$60.99

$

Usually ships in 2-12 days

0

17

Scag 481682

Wire Harness

$298.99

$

Usually ships in 2-12 days

0

18

Scag 481687

Switch, Mower Engagement Electric Clutch
(Superseded to 483957)

$37.99

$

In Stock, Qty 20+

0

19

Scag 48788

Relay

$28.99

$

In Stock, only 2 left!

0

20

Scag 421253

Neutral Lock Bracket, RH

$58.99

$

In Stock, only 1 left!

0

20A

Scag 421252

Neutral Lock Bracket, LH

$

$

Not available

21

Scag 48522

Switch Neutral Lock
(Superseded to 481474)

$103.99

$

In Stock, only 1 left!

0

22

Scag 04003-12

Bolt, Carriage 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

23

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 04019-03

Washer, Star 5/16-18

$0.99

$

In Stock, Qty 20+

0

25

Scag 48015

Battery

$

$

Not available

26

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

27

Scag 04020-02

Nut, Hex 1/4-20

$0.99

$

In Stock, Qty 10

0

28

Scag 48126

Rubber Boot

$8.49

$

Usually ships in 2-12 days

0

29

Scag 48029-13

Battery Cable, 25" Red

$13.99

$

In Stock, only 1 left!

0

30

Scag 48029-11

Battery Cable, 27" Black

$14.99

$

In Stock, only 1 left!

0

31

Scag 04017-19

Bolt, Serrated Flange Hex Head 5/16-18 x 1.50"

$1.49

$

Usually ships in 2-12 days

0

32

Scag 48017-03

Washer, Star 5/8"

$0.99

$

In Stock, Qty 6

0

33

Scag 481275

Wire Harness w/Relay

$33.99

$

In Stock, only 1 left!

0

34

Scag 48298

Fuse, Blade Type 20 amp

$3.99

$

Usually ships in 2-12 days

0

35

Scag 04021-01

Nut, Elastic Stop #10-32

$0.99

$

In Stock, Qty 10

0

36

Scag 461073

Electric Clutch
(Superseded to 461397)

$306.99

$

In Stock, only 1 left!

0

37

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 5

0

38

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

39

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

?40

Scag 04031-09

Lockwasher, 5/16" Internal Tooth

$0.99

$

In Stock, Qty 8

0

41

UNKNOWN

$

$

Not available
