SSZ-18CV-48 - Scag Super Z 48" Zero-Turn Mower, 18hp Kohler (SN: 3440001 - 3449999) 48" Brake And Steering Controls Parts Diagram

Super Z 48" Zero-Turn Mower, 18hp Kohler

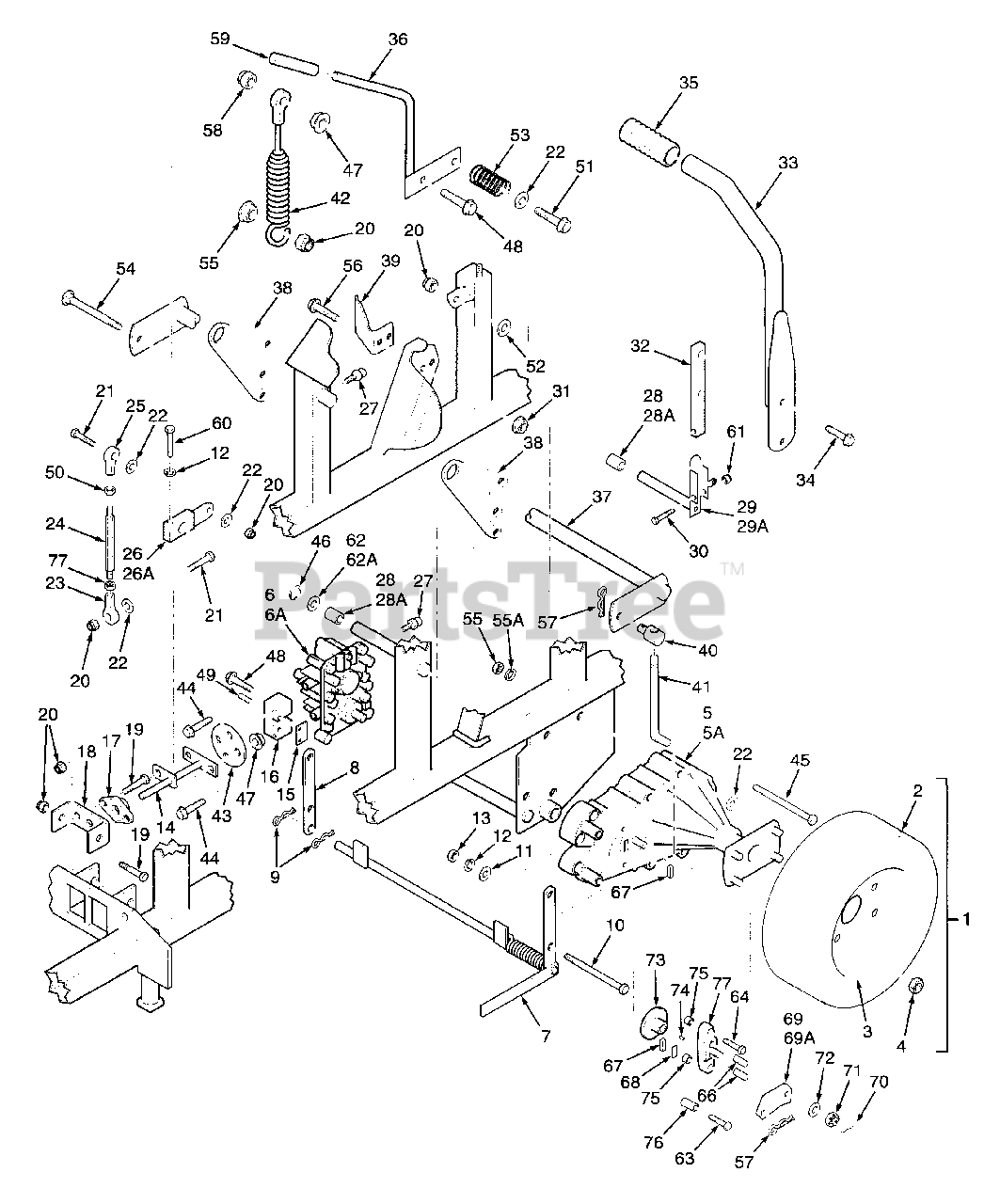

48" Brake And Steering Controls Parts Diagram

  • Title

1

Scag 481503

Drive Wheel Assembly

$365.99

$

Usually ships in 2-12 days

0

1

Scag 481607

Drive Wheel Assembly (SSZ-LT-48)

$

$

Not available

2

Scag 481619

Tire Only

$309.99

$

Usually ships in 2-12 days

0

3

Scag 48321-04

Rim Only
(Superseded to 481725)

$262.99

$

Usually ships in 2-12 days

0

3

Scag 48958-03

Rim Only
(Superseded to 481868)

$189.99

$

Usually ships in 2-12 days

0

4

Scag 04028-01

Lug Nut, 1/2-20

$1.49

$

In Stock, Qty 14

0

5

Scag 481578

Axle, LH

Note: (Includes brake lever)

$

$

Not available

5A

Scag 481577

Axle, RH

Note: (Includes brake lever)

$

$

Not available

6

Scag 48784

Pump, LH

$2792.99

$

Usually ships in 2-12 days

0

6A

Scag 48785

Pump, RH

$2239.99

$

Usually ships in 2-12 days

0

7

Scag 45464

Dump Valve, Lever Weldment

$112.99

$

Usually ships in 2-12 days

0

8

Scag 421212

Bracket, Mounting

$12.99

$

Usually ships in 2-12 days

0

9

Scag 04062-01

Hair Pin

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-95

Bolt, Hex Head 5/16-18 x 5"

$2.49

$

In Stock, Qty 6

0

11

Flatwasher, 5/16"

$

$

Not available

12

Lockwasher, 5/16"

$

$

Not available

13

Nut, Hex 5/16-18

$

$

Not available

14

Scag 45462

Pump Weldment Shaft

$

$

Not available

15

Scag 421203

Clamp Plate

$18.99

$

Usually ships in 2-12 days

0

16

Scag 48829

Block, Pump Control

$21.99

$

In Stock, only 2 left!

0

17

Scag 48796

Bushing, Self Align

$12.99

$

Usually ships in 2-12 days

0

18

Scag 421204

Bracket, Bearing

$12.99

$

Usually ships in 2-12 days

0

19

Bolt, Hex Head 3/8-16 x 1"

$

$

Not available

20

Nut, Elastic Stop 3/8-16

$

$

Not available

21

Bolt, Hex Head 3/8-16 x 1-1/2"

$

$

Not available

22

Scag 04041-07

Flatwasher, 3/8" Special

$0.99

$

In Stock, Qty 20+

0

23

Scag 48544

Ball Joint, LH Thread

$27.99

$

Usually ships in 2-12 days

0

24

Scag 43246

Link, Turnbuckle

$28.99

$

Usually ships in 2-12 days

0

25

Scag 48464

Bail Joint, RH Thread

$23.99

$

In Stock, only 1 left!

0

26

Scag 45895

Lever, Pump Transfer LH

$92.99

$

Usually ships in 2-12 days

0

26A

Scag 45896

Lever, Pump Transfer RH

$

$

Not available

27

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

28

Scag 48100-06

Bushing, LH

$1.49

$

In Stock, only 1 left!

0

28A

Scag 48100-05

Bushing, RH

$0.99

$

In Stock, only 3 left!

0

29

Scag 45897

Control Lever, LH

$71.99

$

Usually ships in 2-12 days

0

29A

Scag 45898

Control Lever, RH

$71.99

$

Usually ships in 2-12 days

0

30

Bolt, Hex Head 5/16-18 x 1-1/2"

$

$

Not available

31

Scag 04019-03

Nut, Serrated Flange Hex 5/16-18

$0.99

$

In Stock, Qty 20+

0

32

Scag 421145

Bar Control Lever

$40.99

$

Usually ships in 2-12 days

0

33

Scag 461037

Control Handle

$116.99

$

Usually ships in 2-12 days

0

34

Scag 04017-27

Bolt, Serrated Flange Hex Head 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

35

Scag 481599

Grip, Control Handle

$11.99

$

Usually ships in 2-12 days

0

36

Scag 45482

Lever Weldment, Parking Brake

$72.99

$

Usually ships in 2-12 days

0

37

Scag 45551

Cam Weldment, Parking Brake

$

$

Not available

38

Scag 422459

Plate, Parking Brake

$28.99

$

Usually ships in 2-12 days

0

39

Scag 421266

Latch, Brake

$14.99

$

Usually ships in 2-12 days

0

40

Scag 43256

Swivel Joint

$10.99

$

Usually ships in 2-12 days

0

41

Scag 44080

Rod, Brake

$5.49

$

Usually ships in 2-12 days

0

42

Scag 48840

Cable Assembly, Parking Brake
(Superseded to 485431)

$100.99

$

Usually ships in 2-12 days

0

43

Scag 421238

Plate, Coupler
(Superseded to 422273)

$8.49

$

Usually ships in 2-12 days

0

44

Scag 04017-05

Bolt, Serrated Flange Hex Hd 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

45

Scag 04001-132

Bolt, Hex Head 3/8-16 x 4", grade 8

$1.99

$

Usually ships in 2-12 days

0

46

Scag 04050-02

Ring, Retaining 3/4" External "E"

$0.99

$

In Stock, Qty 7

0

47

Scag 04019-02

Nut, Serrated Flange Hex 1/4-20

$0.99

$

In Stock, Qty 20+

0

48

Bolt, Sertd. Flg. Hex Head 1/4-20 x 1-1/4"

$

$

Not available

49

Scag 04060-06

Roll Pin, 3/16 x 3/4"

$0.99

$

In Stock, only 1 left!

0

50

Nut, Hex 3/8-24

$

$

Not available

51

Bolt, Hex Head 3/8-16 x 2"

$

$

Not available

52

Scag 04041-12

Flatwasher, 3/8 (.375 x 1-1/2" x 16 ga.)

$0.99

$

In Stock, Qty 9

0

53

Scag 48050

Spring, Brake Lever

$33.99

$

Usually ships in 2-12 days

0

54

Bolt, Carriage 3/8-16 x 1-1/2"

$

$

Not available

55

Scag 04021-18

Nut, Elastic Stop 3/8-16

$1.99

$

In Stock, Qty 9

0

55A

Scag 04030-09

Lockwasher, 3/8" spring, grade 8

$

$

Currently unavailable

56

Scag 04017-16

Bolt, Serrated Flange Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

57

Scag 04062-02

Hair Pin, 1/16"

$0.99

$

In Stock, Qty 20+

0

58

Nut, Elastic Stop 1/4-20

$

$

Not available

59

Scag 48342

Grip, Parking Brake

$2.49

$

Usually ships in 2-12 days

0

60

Bolt, Hex Head 5/16-18 x 1-1/2"

$

$

Not available

61

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

62

Scag 04041-08

Flatwasher, 3/4"

$0.99

$

In Stock, Qty 20+

0

62A

Scag 04041-08S

Flatwasher, 3/4" Special

$0.99

$

In Stock, Qty 20+

0

63

Scag HG44612

Bolt, 1/4-20 x 2-1/2 GR. 5 w/patch

$

$

Not available

64

Scag HG44276

Bolt, 1/4-20 x 1-1/2 GR. 5 w/patch

$

$

Not available

?65

Scag 04008-02

Bolt, Wheel Mounting

$13.99

$

In Stock, Qty 6

0

66

Scag HG44127

Pins, Actuating

$2.99

$

Usually ships in 2-12 days

0

67

Scag HG44132

Brake Puck

$5.99

$

In Stock, only 3 left!

0

68

Scag HG44134

Backing Plate

$2.99

$

Usually ships in 2-12 days

0

69

Scag HG44093

Actuating Lever, RH
(Superseded to HG44094)

$11.99

$

Usually ships in 2-12 days

0

69A

Scag HG44613

Actuating Lever, LH

$14.99

$

Usually ships in 2-12 days

0

70

Pin, Cotter

$

$

Not available

71

Scag HG44142

Nut, Castle

$

$

Not available

72

Scag HG44130

Washer, 7/16 x 7/8 OD x .06 HT

$

$

Not available

73

Scag HG44090

Disc, Brake

$17.99

$

Usually ships in 2-12 days

0

74

Scag HG44143

Key, Hi Pro 3/16 x 5/8

$7.49

$

Usually ships in 2-12 days

0

75

Scag HG23770

Brake Spacer

$4.99

$

Usually ships in 2-12 days

0

76

Scag HG23711

Spacer, Torsion Spring

$

$

Not available

77

Scag HG62589

Brake Yoke Assembly

$

$

Not available

?78

Scag 04008-02

Wheel Stud

$13.99

$

In Stock, Qty 6

0
