SSZ-16BV - Scag Super Z Zero-Turn Mower, 16hp Vanguard (SN: 30000 - 39999) TRACTION DRIVE COMPONENTS Parts Diagram

Super Z Zero-Turn Mower, 16hp Vanguard

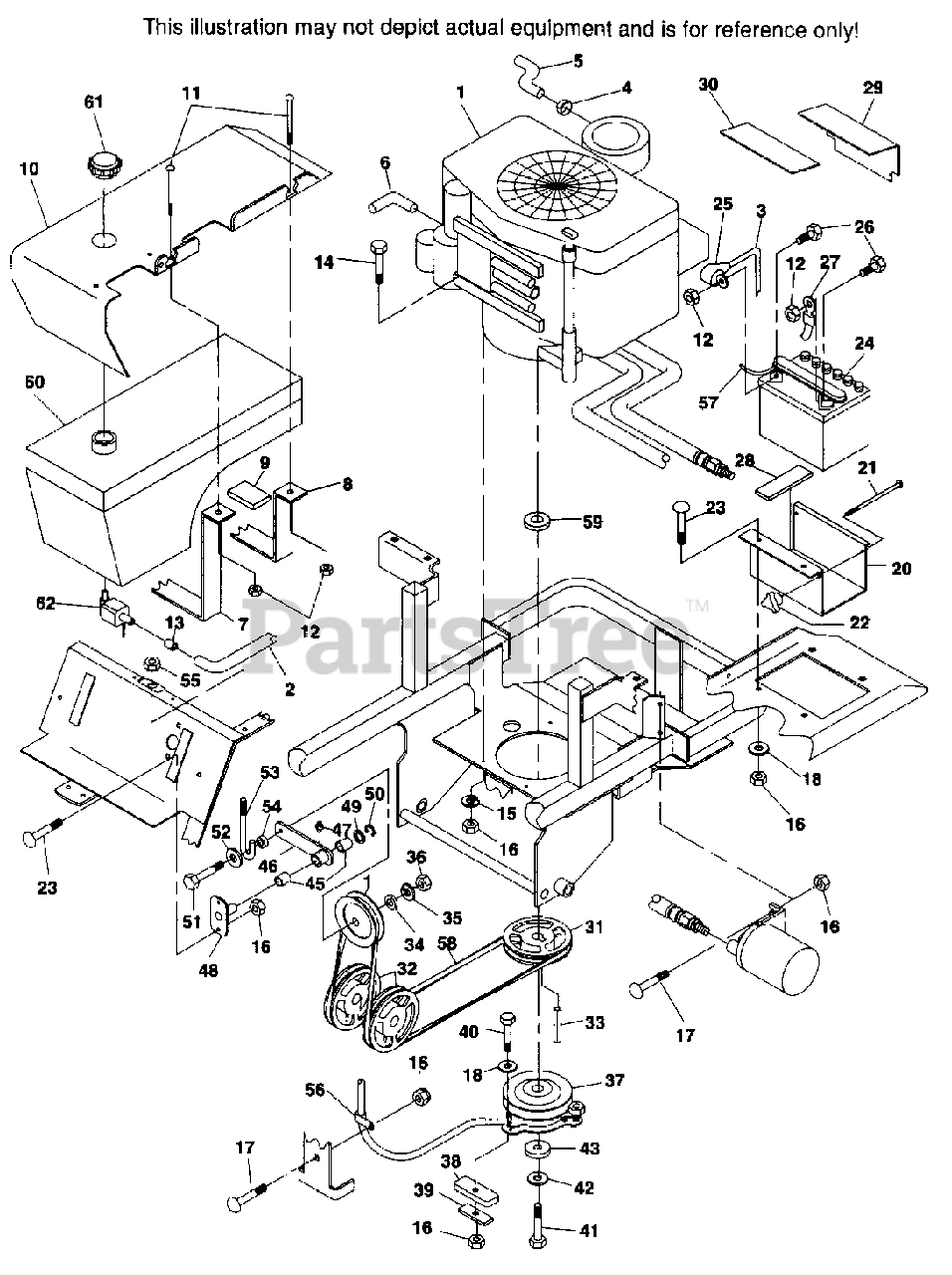

TRACTION DRIVE COMPONENTS Parts Diagram

  • Title

1

Scag 48766

ENGINE

$

$

Not available

2

Scag 48058-14

FUEL HOSE, 36" LONG
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

3

Scag 48029-06

BATTERY CABLE, 18" RED

$12.99

$

Usually ships in 2-12 days

0

6

Scag 48600-01

STREET ELBOW - 3/8 NPT

$12.99

$

Usually ships in 2-12 days

0

7

Scag 42944

FUEL TANK STRAP, LONG

$26.99

$

Usually ships in 2-12 days

0

8

Scag 42945

FUEL TANK STRAP, SHORT

$16.99

$

Usually ships in 2-12 days

0

9

Scag 48657

RUBBER PAD

$5.99

$

Usually ships in 2-12 days

0

10

Scag 46505

FENDER ASSEMBLY, RH(WITH DECAL)

$

$

Not available

11

MACHINE SCREW, 1/4-20 X 2"

$

$

Not available

12

NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

13

Scag 48059-01

FUEL HOSE CLAMP

$0.99

$

In Stock, Qty 7

0

14

HEX HEAD BOLT, 5/16-18 X 1-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

15

LOCKWASHER, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

16

ELASTIC STOP NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

17

CARRIAGE BOLT, 5/16-18 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

18

FLATWASHER, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

19

Scag 45458

FENDER, LH

$

$

Not available

20

Scag 421197

BATTERY BOX

$44.99

$

In Stock, only 1 left!

0

21

CARRIAGE BOLT, 1/4-20 X 6"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

22

Scag 04029-01

WING NUT, 1/4-20

$2.49

$

In Stock, Qty 19

0

23

CARRIAGE BOLT, 5/16-18 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

24

Scag 48015

BATTERY

$

$

Not available

25

Scag 48126

RUBBER BOOT

$8.99

$

Usually ships in 2-12 days

0

26

HEX HEAD BOLT, 1/4-20 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

27

Scag 48029-11

BATTERY CABLE, 27" BLACK

$14.99

$

In Stock, only 1 left!

0

28

Scag 48661

RUBBER PAD

$4.99

$

Usually ships in 2-12 days

0

29

Scag 42392

BATTERY COVER

$47.99

$

Usually ships in 2-12 days

0

30

Scag 48099

BATTERY COVER PAD

$5.99

$

Usually ships in 2-12 days

0

31

Scag 48792

PULLEY

$119.99

$

Usually ships in 2-12 days

0

32

Scag 48790

PUMP PULLEY
(Superseded to 482648)

$38.99

$

In Stock, Qty 12

0

33

Scag 04063-01

KEY, 1/4 X 1/4 X 1-1/4"

$1.49

$

In Stock, only 4 left!

0

34

Scag 04041-07

FLATWASHER, 3/8"

$0.99

$

In Stock, Qty 20+

0

35

LOCKWASHER, 3/8"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

36

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

37

Scag 48786

ELECTRIC CLUTCH
(Superseded to 461074)

$519.99

$

Usually ships in 2-12 days

0

38

Scag 48814

RUBBER PAD, CLUTCH STOP

$2.49

$

Usually ships in 2-12 days

0

39

Scag 421215

BACKING PLATE
(Superseded to 421564)

$88.99

$

Usually ships in 2-12 days

0

40

HEX HEAD BOLT, 5/16-18 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

41

Scag 04001-93

HEX HEAD BOLT, 7/16-20 X 3"

$1.49

$

In Stock, only 3 left!

0

42

LOCKWASHER, 7/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

43

Scag 04041-18

FLATWASHER, 7/16" SPECIAL

$3.49

$

Usually ships in 2-12 days

0

44

Scag 48181

IDLER PULLEY

$26.99

$

In Stock, Qty 14

0

45

Scag 48100-05

BUSHING

$0.99

$

In Stock, only 3 left!

0

46

Scag 46081

IDLER ARM(INCLUDES BUSHINGS AND GREASE

$47.99

$

Usually ships in 2-12 days

0

47

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

48

Scag 45037

IDLER PIVOT BASE

$31.99

$

Usually ships in 2-12 days

0

49

Scag 04041-08

FLATWASHER, 3/4" SPECIAL

$0.99

$

In Stock, Qty 20+

0

50

Scag 04050-02

RETAINING RING, 3/4" EXTERNAL "E"

$0.99

$

In Stock, Qty 7

0

51

HEX HEAD BOLT, 3/8-16 X 2-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

52

Scag 04041-12

FLATWASHER 3/8 X 1-1/2 X .06

$0.99

$

In Stock, Qty 9

0

53

Scag 44075

"J" BOLT

$5.99

$

Usually ships in 2-12 days

0

54

Scag 43077

SPACER

$4.99

$

In Stock, only 1 left!

0

55

ELASTIC STOP NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

56

Scag 48030-09

CLAMP

$1.49

$

In Stock, Qty 6

0

57

Scag 48015-01

OVERFLOW TUBE

$

$

Not available

58

Scag 48760

BELT, PUMP DRIVE

$42.99

$

In Stock, only 1 left!

0

59

Scag 43248

SPACER, CRANKSHAFT

$12.99

$

Usually ships in 2-12 days

0

60

Scag 48651

FUEL TANK(INCLUDES SHUT-OFF VALVE)

$213.99

$

Usually ships in 2-12 days

0

61

Scag 48311

FUEL TANK CAP
(Superseded to 483791)

$36.99

$

Usually ships in 2-12 days

0

62

Scag 48568

FUEL SHUT-OFF VALVE

$27.99

$

Usually ships in 2-12 days

0
