SSZ-16BV - Scag Super Z Zero-Turn Mower, 16hp Vanguard (SN: 30000 - 39999) BRAKE AND STEERING CONTROLS Parts Diagram

Super Z Zero-Turn Mower, 16hp Vanguard

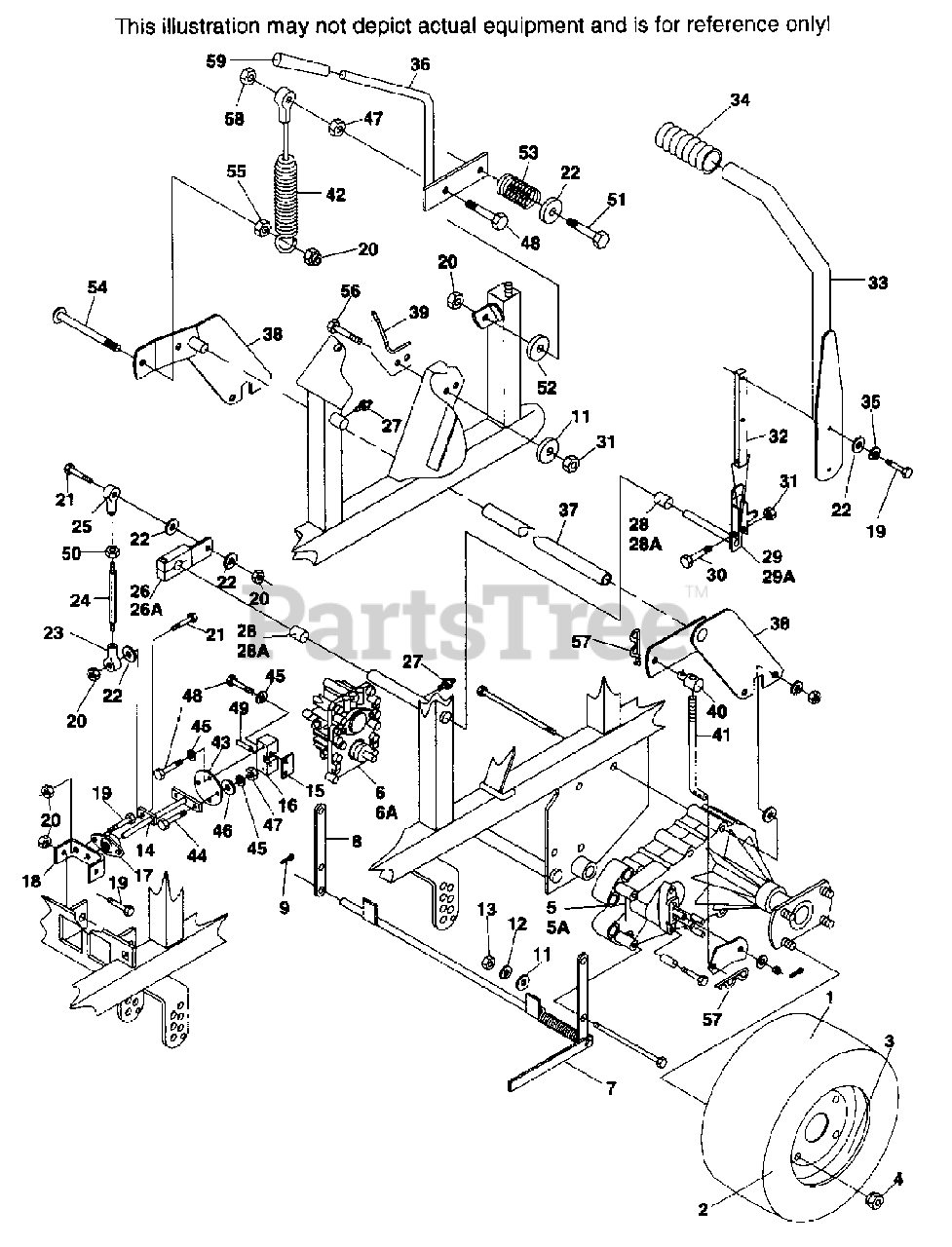

BRAKE AND STEERING CONTROLS Parts Diagram

  • Title

1

Scag 48827

DRIVE WHEEL ASSEMBLY, COMPLETE
(Superseded to 481503)

$357.99

$

Usually ships in 2-12 days

0

2

Scag 48827-02

TIRE ONLY
(Superseded to 481619)

$302.99

$

Usually ships in 2-12 days

0

3

Scag 48827-03

RIM ONLY
(Superseded to 481725)

$

$

Not available

4

Scag 04028-01

LUG NUT, 1/2-20

$1.49

$

In Stock, Qty 14

0

5

Scag 48782

AXLE, LH

$

$

Not available

5A

Scag 48783

AXLE, RH

$

$

Not available

6

Scag 48784

PUMP, LH

$

$

Not available

6A

Scag 48785

PUMP, RH

$

$

Not available

7

Scag 45464

DUMP VALVE, LEVER WELDMENT

$

$

Not available

8

Scag 421212

MOUNTING BRACKET

$12.99

$

Usually ships in 2-12 days

0

9

Scag 04062-01

HAIR PIN

$0.99

$

In Stock, Qty 20+

0

?10

Scag 04001-95

HEX HEAD BOLT, 5/16-18 X 5"

$2.49

$

In Stock, Qty 6

0

11

FLATWASHER, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

12

LOCKWASHER, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

13

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

14

Scag 45462

PUMP WELDMENT SHAFT

$

$

Not available

15

Scag 421203

CLAMP PLATE

$18.99

$

Usually ships in 2-12 days

0

16

Scag 48829

BLOCK, PUMP CONTROL

$21.99

$

In Stock, only 1 left!

0

17

Scag 48796

BEARING

$12.99

$

Usually ships in 2-12 days

0

18

Scag 421204

BEARING BRACKET

$

$

Not available

19

HEX HEAD BOLT, 3/8-16 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

20

ELASTIC STOP NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

21

HEX HEAD BOLT, 3/8-16 X 1-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

22

Scag 04041-07

FLATWASHER, 3/8"

$0.99

$

In Stock, Qty 20+

0

23

Scag 48544

BALL JOINT, LH THREAD

$26.99

$

Usually ships in 2-12 days

0

24

Scag 43246

LINK, TURNBUCKLE

$27.99

$

Usually ships in 2-12 days

0

25

Scag 48464

BALL JOINT, RH THREAD

$23.99

$

In Stock, only 1 left!

0

26

Scag 45460

LEVER, PUMP TRANSFER LH
(Superseded to 45895)

$

$

Not available

26A

Scag 45461

LEVER, PUMP TRANSFER RH
(Superseded to 45896)

$

$

Not available

27

Scag 48114-04

GREASE FITTING

$0.99

$

In Stock, Qty 20+

0

28

Scag 48100-06

BUSHING, LH

$1.49

$

In Stock, only 1 left!

0

28A

Scag 48100-05

BUSHING, RH

$0.99

$

In Stock, only 3 left!

0

29

Scag 45435

CONTROL LEVER, LH
(Superseded to 45897)

$57.99

$

Usually ships in 2-12 days

0

29A

Scag 45436

CONTROL LEVER, RH
(Superseded to 45898)

$

$

Not available

30

HEX HEAD BOLT, 5/16-18 X 1-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

31

ELASTIC STOP NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

32

Scag 421145

BAR CONTROL LEVER

$39.99

$

Usually ships in 2-12 days

0

33

Scag 45437

CONTROL HANDLE

$

$

Not available

34

Scag 48093

GRIP, CONTROL HANDLE

$1.99

$

In Stock, only 1 left!

0

35

LOCKWASHER, 3/8"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

36

Scag 45482

LEVER WELDMENT, PARKING BRAKE

$

$

Not available

37

Scag 45483

CAM WELDMENT, PARKING BRAKE

$

$

Not available

38

Scag 421262

PLATE, PARKING BRAKE
(Superseded to 422459)

$

$

Not available

39

Scag 421266

LATCH, BRAKE

$

$

Not available

40

Scag 43256

SWIVEL JOINT

$9.99

$

Usually ships in 2-12 days

0

41

Scag 44080

ROD, BRAKE

$5.49

$

Usually ships in 2-12 days

0

42

Scag 48840

CABLE ASSEMBLY, PARKING BRAKE
(Superseded to 485431)

$97.99

$

Usually ships in 2-12 days

0

43

Scag 421238

PLATE, COUPLER
(Superseded to 422273)

$8.49

$

Usually ships in 2-12 days

0

44

HEX HEAD BOLT, 1/4-20 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

45

LOCKWASHER, 1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

46

FLATWASHER, 1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

47

HEX NUT, 1/4-28

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

48

HEX HEAD BOLT, 1/4-20 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

49

Scag 04060-06

ROLL PIN, 3/16 X 3/4"

$0.99

$

In Stock, only 1 left!

0

50

HEX NUT, 3/8-24

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

51

HEX HEAD BOLT, 3/8-16 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

52

Scag 04041-12

FLATWASHER, 3/8 X 1-1/2" X 16 GA.

$0.99

$

In Stock, Qty 9

0

53

Scag 48050

SPRING, BRAKE LEVER

$

$

Not available

54

CARRIAGE BOLT, 3/8-16 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

55

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

56

HEX HEAD BOLT, 5/16-18 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

57

Scag 04062-02

HAIR PIN, 1/16" DIAMETER

$0.99

$

In Stock, Qty 20+

0

58

ELASTIC STOP NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

59

Scag 48342

GRIP, PARKING BRAKE

$2.49

$

Usually ships in 2-12 days

0
