Featherlite String Trimmer, Type 2

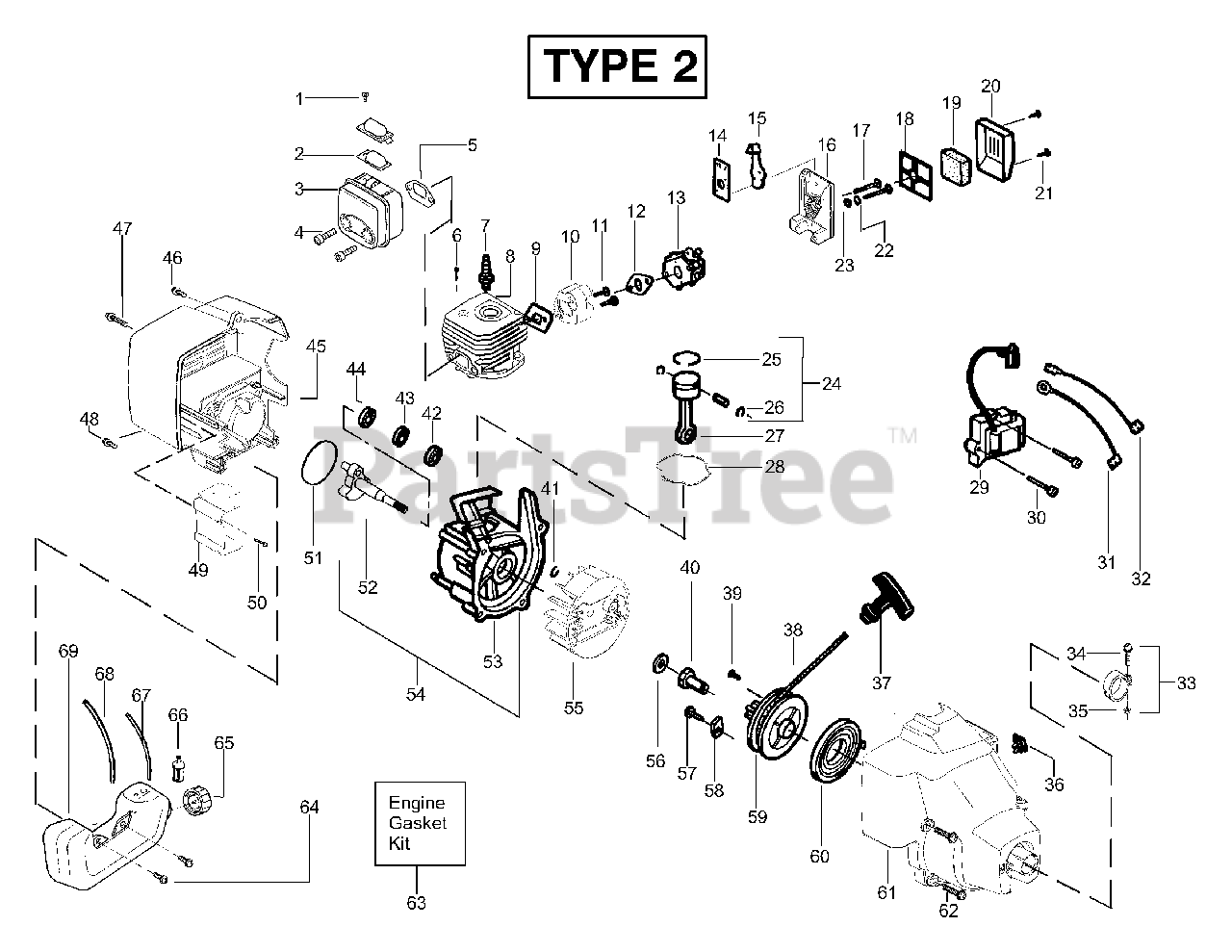

Engine Assembly Type 2 Parts Diagram

  • Title

1

Poulan 530015241

Screw-Screen

$3.99

$

Usually ships in 3-10 days

0

2

Poulan 530071544

Kit-Spark Arrestor

$

$

Not available

3

Poulan 530071672

Kit-Muffler

Note: (Incl. #1,2,4,5)

$

$

Not available

4

Poulan 530016338

Bolt-Muffler

$3.99

$

In Stock, only 2 left!

0

5

Poulan 530071363

Gasket-Muffler (kit)

$

$

Not available

6

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 7

0

7

Poulan 952030249

Spark Plug (RCJ 6Y)

$4.49

$

In Stock, Qty 20+

0

8

Poulan 530071668

Kit-Cylinder

$

$

Not available

9

Poulan 530071363

Gasket-Cyl./Carb.(kit)

$

$

Not available

10

Poulan 530056403

Adapter-Carb.
(Superseded to 545030402)

$12.99

$

Usually ships in 3-10 days

0

11

Poulan 530016309

Screw

$5.99

$

Usually ships in 3-10 days

0

12

Poulan 530071363

Gasket-Carb. (kit)

$

$

Not available

13

Poulan 530071628

Kit-Carburetor Ass'y (C1U-W10B)

$48.99

$

Usually ships in 3-10 days

0

14

Poulan 530038747

Choke Plate Mounting

$3.99

$

In Stock, only 3 left!

0

15

Poulan 530038686

Shutter-Choke

$3.99

$

In Stock, Qty 7

0

16

Poulan 530052431

Air Box

$

$

Not available

17

Poulan 530016353

Screw

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 530036569

Plate-Filter Support

$

$

Not available

19

Poulan 530036575

Foam-Air Filter

$5.99

$

In Stock, only 2 left!

0

20

Poulan 530054414

Cover-Air Filter

$6.49

$

In Stock, only 1 left!

0

21

Poulan 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

22

Poulan 530015852

Spacer-Choke

$3.49

$

In Stock, only 1 left!

0

23

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

24

Poulan 530071357

Kit-Piston
(Superseded to 530071833)

Note: (Incl. 25, 26 & Pin)

$37.99

$

In Stock, only 1 left!

0

25

Poulan 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

26

Poulan 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

27

Poulan 530069945

Assy-Connecting Rod
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

28

Poulan 530071363

Seal-Cylinder (kit)

$

$

Not available

29

Poulan 530055160

Ignition Module

$46.99

$

Usually ships in 3-10 days

0

30

Poulan 530016357

Screw

$6.49

$

In Stock, only 4 left!

0

31

Poulan 530014662

Assy-Ground Wire

$7.49

$

Usually ships in 3-10 days

0

32

Poulan 530014663

Assy-Leadwire

$9.99

$

Usually ships in 3-10 days

0

33

Poulan 530056365

Assy-Nose Cone Clamp

Note: (Incls. 34 & 35)

$4.99

$

Usually ships in 3-10 days

0

34

Poulan 530016381

Screw-Nose Cone

$3.49

$

Usually ships in 3-10 days

0

35

Poulan 530016382

Nut-Nose Cone

$6.99

$

Usually ships in 3-10 days

0

36

Poulan 530071356

Kit-Switch

$8.99

$

In Stock, only 1 left!

0

37

Poulan 530027569

Handle-Starter

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 530069232

Kit-Rope

$7.49

$

In Stock, Qty 17

0

39

Poulan 530016080

Screw

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 530038604

Coupling-Drive

$5.99

$

Usually ships in 3-10 days

0

41

Poulan 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

42

Poulan 530055728

Outer Bearing

$9.99

$

Usually ships in 3-10 days

0

43

Poulan 530071615

Kit-C'case Seal

$7.49

$

Usually ships in 3-10 days

0

44

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

45

Poulan 530056710

Shroud-Rear

$17.99

$

Usually ships in 3-10 days

0

46

Poulan 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

47

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

48

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

49

Poulan 530055351

Shield-Heat

$3.99

$

Usually ships in 3-10 days

0

50

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

51

Poulan 530071363

O-Ring-C'case (kit)

$

$

Not available

52

Poulan 530054753

Assy-Crankshaft

$36.99

$

Usually ships in 3-10 days

0

53

Poulan 530012510

Assy-Crankcase

Note: (Incl. 42-44)

$

$

Not available

54

Poulan 530071669

Assy-C'case & C'shaft

Note: (Incl. 41,52,53)

$37.99

$

Usually ships in 3-10 days

0

55

Poulan 530069886

Assy-Flywheel
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

56

Poulan 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

57

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

58

Poulan 530027523

Retainer-Can

$7.49

$

In Stock, only 2 left!

0

59

Poulan 530069400

Kit-Starter Pulley
(Superseded to 530071786)

Note: (Incl. 39)

$11.99

$

In Stock, Qty 7

0

60

Poulan 530042085

Spring-Starter
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

61

Poulan 530056706

Assy.-Fan Hsg

$21.99

$

Usually ships in 3-10 days

0

62

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

63

Poulan 530071363

Kit-Engine Gasket

Note: (Incl. 5,9,12,28,51)

$

$

Not available

64

Poulan 530016379

Retainer

$4.99

$

Usually ships in 3-10 days

0

65

Poulan 530014347

Assy-Fuel Cap

$9.49

$

In Stock, Qty 15

0

66

Poulan 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 16

0

67

Poulan 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

68

Poulan 530069216

Kit-Fuel Line (Large)

$11.99

$

In Stock, Qty 20+

0

69

Poulan 530049296

Assy-Fuel Tank
(Superseded to 545103802)

Note: (Incl. filter, lines & fuel cap)

$18.99

$

Usually ships in 3-10 days

0
