SST 25 HO - Weed Eater Featherlite String Trimmer, Type 2 Engine Assembly Type 2 Parts Diagram

Featherlite String Trimmer, Type 2

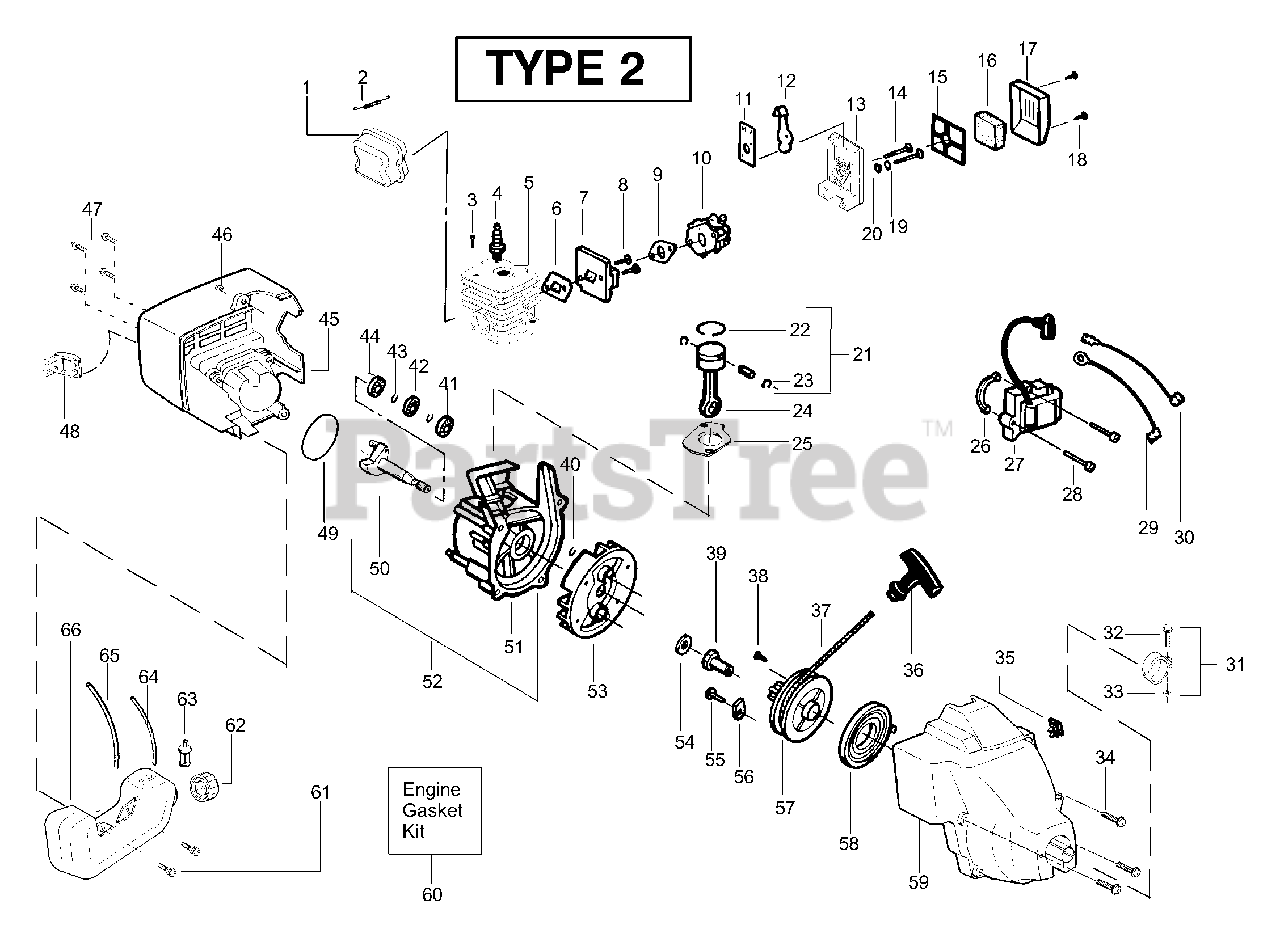

Engine Assembly Type 2 Parts Diagram

  • Title

1

Poulan 530071396

Kit - Muffler

Note: (Incl. 2)

$

$

Not available

2

Poulan 530042088

Spring-Muffler

$3.99

$

In Stock, only 1 left!

0

3

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 7

0

4

Poulan 952030164

Spark Plug (RCJ-6Y)
(Superseded to 952030249)

$4.99

$

In Stock, Qty 20+

0

5

Poulan 530071359

Kit - Cylinder
(Superseded to 582144301)

$

$

Not available

6

Poulan 530071363

Gasket-Cyl/Carb.(kit)

$

$

Not available

7

Poulan 530055459

Adaptor-Carb.

$

$

Not available

8

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

9

Poulan 530071363

Gasket-Carb.(kit)

$

$

Not available

10

Poulan 530069754

Kit - Carburetor Ass'y

Note: (Incl. Limiter Cap)

$68.99

$

Usually ships in 3-10 days

0

11

Poulan 530038747

Plate-Choke Mounting

$3.99

$

In Stock, only 3 left!

0

12

Poulan 530038686

Shutter-Choke

$3.99

$

In Stock, Qty 7

0

13

Poulan 530052431

Box-Air

$

$

Not available

14

Poulan 530016353

Screw

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 530036569

Plate - Filter Support

$

$

Not available

16

Poulan 530036575

Foam-Air Filter

$5.99

$

In Stock, only 2 left!

0

17

Poulan 530036568

Cover-Air Filter

$

$

Not available

18

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

19

Poulan 530015852

Spacer-Choke

$3.49

$

In Stock, only 1 left!

0

20

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

21

Poulan 530071357

Kit - Piston
(Superseded to 530071833)

Note: (Incl. 22, 23 & Pin)

$37.99

$

Usually ships in 3-10 days

0

22

Poulan 530055120

Ring-Piston
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

23

Poulan 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

24

Poulan 530069945

Assy-Connecting Rod
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

25

Poulan 530071363

Gasket-Cylinder (kit)

$

$

Not available

26

Poulan 530036145

Spacer-Module

$3.99

$

In Stock, only 3 left!

0

27

Poulan 530055160

Module-Ignition

$46.99

$

Usually ships in 3-10 days

0

28

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 530014662

Assy-Ground Wire

$7.49

$

Usually ships in 3-10 days

0

30

Poulan 530014663

Assy-Leadwire

$9.99

$

Usually ships in 3-10 days

0

31

Poulan 530056365

Assy-Nose Cone Clamp

Note: (Incls. 32 & 33)

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 530016381

Screw-Nose Cone

$3.49

$

Usually ships in 3-10 days

0

33

Poulan 530016382

Nut-Nose Cone

$6.99

$

Usually ships in 3-10 days

0

34

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

35

Poulan 530071356

Kit-Momentary Switch

$8.99

$

In Stock, only 1 left!

0

36

Poulan 530027569

Handle-Starter

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 530069232

Kit - Rope

$7.49

$

In Stock, Qty 20+

0

38

Poulan 530016080

Screw

$6.49

$

In Stock, only 1 left!

0

39

Poulan 530038604

Coupling-Drive

$5.99

$

Usually ships in 3-10 days

0

40

Poulan 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

41

Poulan 530032124

Bearing-Outer

$7.49

$

Usually ships in 3-10 days

0

42

Poulan 530019179

Seal-C'case

$

$

Not available

43

Poulan 530015945

Retainer Ring-C'case

$3.99

$

Usually ships in 3-10 days

0

44

Poulan 530032125

Bearing-Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

45

Poulan 530069685

Kit-Fan Hsg./Shroud

$

$

Not available

46

Poulan 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

47

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

48

Poulan 530054536

Guard-Muffler

$

$

Not available

49

Poulan 530071363

O-Ring-C'case (kit)

$

$

Not available

50

Poulan 530054753

Assy-Crankshaft

$36.99

$

Usually ships in 3-10 days

0

51

Poulan 530012462

Assy-Crankcase

Note: (Incl. 41-44)

$10.99

$

Usually ships in 3-10 days

0

52

Poulan 530071360

Assy-C'case & C'shaft

Note: (Incl. 40,50,51)

$

$

Not available

53

Poulan 530069886

Assy-Flywheel
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

54

Poulan 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

55

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

56

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

57

Poulan 530069400

Kit-Starter Pulley
(Superseded to 530071786)

Note: (Incl. 38)

$11.99

$

In Stock, Qty 7

0

58

Poulan 530042085

Spring-Starter
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

59

Poulan 530069685

Kit-Fan Hsg./Shroud

$

$

Not available

60

Poulan 530071363

Kit-Engine Gasket

Note: (Incl. 6,9,25,49)

$

$

Not available

61

Poulan 530016379

Retainer-Fuel Tank

$4.99

$

Usually ships in 3-10 days

0

62

Poulan 530014347

Assy-Fuel Cap w/ret.

$9.49

$

In Stock, Qty 15

0

63

Poulan 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 20+

0

64

Poulan 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

65

Poulan 530069216

Kit-Fuel Line (Large)

$11.99

$

In Stock, Qty 20+

0

66

Poulan 530049379

Assy-Fuel Tank
(Superseded to 545103802)

Note: (Incl. cap, fuel line, filter)

$18.99

$

Usually ships in 3-10 days

0
