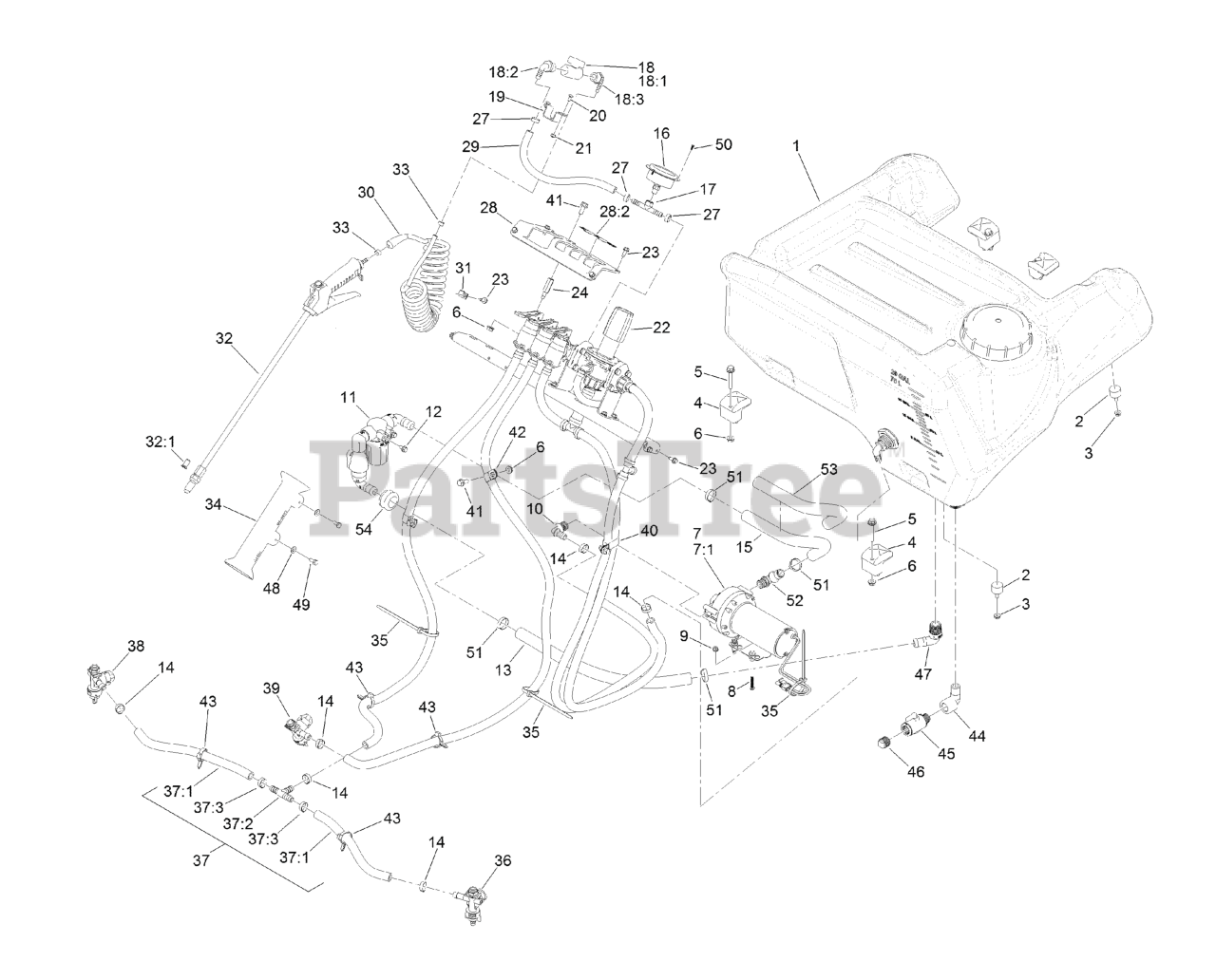

SSS395CKC00000 - Exmark Spreader Sprayer (SN: 404314159 - 406294344) (Rev B) (2019) Spray System Assembly Parts Diagram

Spreader Sprayer

Spray System Assembly Parts Diagram

  • Title
1

Exmark 126-0286

TANK-SPRAYER

$681.99

$

Usually ships in 3-6 days

0

2

$14.99

$

Usually ships in 3-6 days

0

3

$1.49

$

In Stock, only 1 left!

0

4

$14.99

$

Usually ships in 3-6 days

0

5

Exmark 126-2711

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

6

$1.99

$

In Stock, only 1 left!

0

7

Exmark 135-2559

PUMP-DIAPHRAGM, 3.8 GPM
(Superseded to 142-2301)

$482.99

$

In Stock, only 1 left!

0

7:1

Exmark 135-2477

KIT-DIAPHRAM PUMP

$123.99

$

Usually ships in 3-6 days

0

8

Exmark 692501

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

9

$1.99

$

Usually ships in 3-6 days

0

10

Exmark 126-0961

FITTING-ELBOW, BARBED

$10.99

$

In Stock, only 4 left!

0

11

Exmark 126-4358

STRAINER ASM

$144.99

$

In Stock, only 4 left!

0

12

Exmark 126-2713

SCREW-HHF

$5.49

$

In Stock, only 3 left!

0

13

Exmark 126-4422

HOSE-WATER

$18.99

$

Usually ships in 3-6 days

0

14

$2.99

$

In Stock, Qty 11

0

15

Exmark 126-4637

HOSE-WATER

$35.99

$

Usually ships in 3-6 days

0

16

Exmark 126-4110

GAUGE-PRESSURE

$175.99

$

In Stock, Qty 5

0

17

Exmark 126-2348

FITTING-TEE

$17.99

$

Usually ships in 3-6 days

0

18

Wand Control ASM

Note: Not serviced separately

$

$

Not available

18:1

Exmark 126-0242

VALVE-BALL

$55.99

$

In Stock, only 1 left!

0

18:2

Exmark 126-4992

FITTING-ELBOW-90
(Superseded to 135-8341)

$1.99

$

In Stock, Qty 5

0

18:3

Exmark 126-4993

FITTING-ELBOW-90

$5.49

$

In Stock, Qty 19

0

19

Exmark 126-0239-03

BRACKET-VALVE

$18.99

$

In Stock, only 1 left!

0

20

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

21

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Control Valve Manifold ASM

Note: Not serviced separately

$

$

Not available

23

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 6

0

24

Exmark 126-4914

SPACER-MOUNT, MANIFOLD

$29.99

$

Usually ships in 3-6 days

0

27

$1.49

$

Usually ships in 3-6 days

0

28

Exmark 126-4180

COVER-CONTROLS

$116.99

$

Usually ships in 3-6 days

0

28:2

Exmark 126-4161

DECAL-CONTROL, LEVER

$6.99

$

Usually ships in 3-6 days

0

29

Exmark 126-5847

HOSE-WATER, 3/8 PVC RED

$7.99

$

Usually ships in 3-6 days

0

30

Exmark 126-1493

HOSE-COILED

$82.99

$

In Stock, Qty 8

0

31

Exmark 2412-89

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

32

Exmark 126-8000

SPRAY WAND ASM

$133.99

$

In Stock, only 3 left!

0

32:1

Exmark 126-3943

STRAINER-NOZZLE, 50M 5PSI

$21.99

$

In Stock, Qty 20+

0

33

$1.49

$

In Stock, Qty 19

0

34

Exmark 126-3987

HOLDER-WAND

$71.99

$

In Stock, only 1 left!

0

35

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

36

Exmark 126-3667

LEFT NOZZLE SUB ASM

$82.99

$

Usually ships in 3-6 days

0

37

Exmark 126-2252

HOSE ASM

$26.99

$

Usually ships in 3-6 days

0

37:1

Exmark 126-2264

HOSE-WATER

$9.49

$

In Stock, only 1 left!

0

37:2

Exmark 126-0968

FITTING-TEE

$5.49

$

Usually ships in 3-6 days

0

37:3

$2.99

$

In Stock, Qty 11

0

38

Exmark 126-3669

RIGHT NOZZLE SUB ASM

$82.99

$

In Stock, only 1 left!

0

39

Exmark 126-3668

CENTER NOZZLE SUB ASM

$82.99

$

Usually ships in 3-6 days

0

40

$3.49

$

Usually ships in 3-6 days

0

41

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, Qty 8

0

42

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

43

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

44

Exmark 108-3573

ELBOW-90 DEG

$15.99

$

Usually ships in 3-6 days

0

45

Exmark 126-1494

MICROVALVE

$55.99

$

Usually ships in 3-6 days

0

46

$2.99

$

Usually ships in 3-6 days

0

47

Exmark 119-0490

ELBOW-HOSEBARB

$5.49

$

In Stock, only 1 left!

0

48

Exmark 360-0140

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

49

Exmark 126-1290

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

50

Exmark 363-8552

SCREW-TAP

$0.99

$

Usually ships in 3-6 days

0

51

$2.99

$

Usually ships in 3-6 days

0

52

Exmark 126-4420

FITTING-ELBOW

$15.99

$

In Stock, Qty 8

0

53

Exmark 126-5065

SLEEVE-CORRUGATED, SPLIT

$14.99

$

Usually ships in 3-6 days

0

54

Exmark 126-7410

GROMMET

$7.49

$

Usually ships in 3-6 days

0
