SSS395CKC00000 - Exmark Spreader Sprayer (SN: 404314159 - 406294344) (2019) Hopper Assembly Parts Diagram

Spreader Sprayer

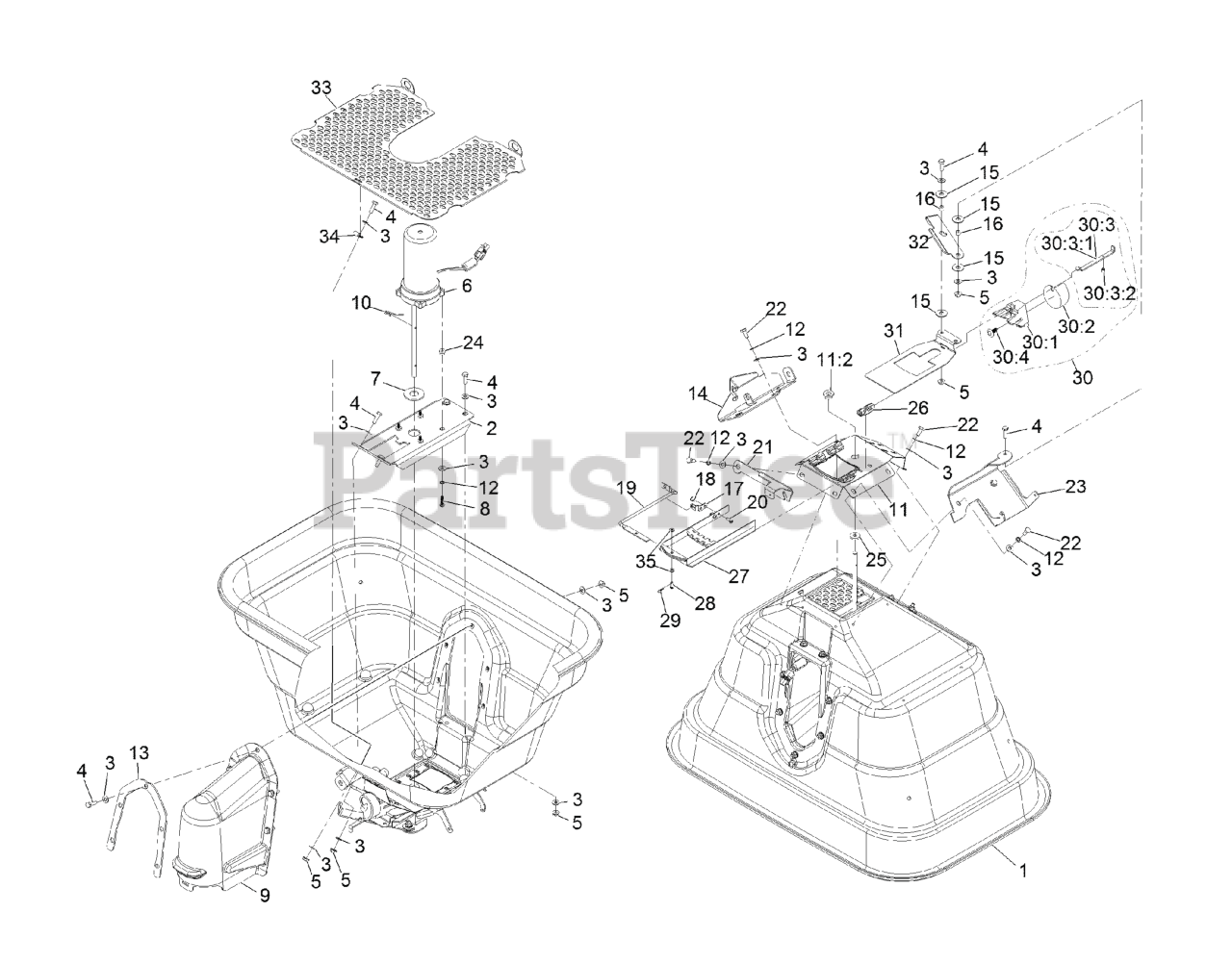

Hopper Assembly Parts Diagram

  • Title

1

Exmark 135-0671

HOPPER-SPREADER, 175 LB (EXMARK)
(Superseded to 142-2734)

$373.99

$

Usually ships in 3-6 days

0

2

Exmark 126-4245

BRACKET-MOUNT, MOTOR

$75.99

$

Usually ships in 3-6 days

0

3

Exmark 360-0140

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

4

Exmark 126-0498

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

5

Exmark 135-2880

NUT-HF

$1.49

$

In Stock, only 1 left!

0

6

Exmark 126-6231

SPREADER MOTOR ASM

$634.99

$

Usually ships in 3-6 days

0

7

Exmark 83-2400

SPACER

$7.49

$

In Stock, only 4 left!

0

8

Exmark 739001

SCREW-SHWH

$1.49

$

In Stock, Qty 9

0

9

Exmark 126-1348

COVER-MOTOR

$124.99

$

Usually ships in 3-6 days

0

10

Exmark 126-1247

AGITATOR
(Superseded to 142-3666)

$3.99

$

In Stock, only 1 left!

0

11

Exmark 126-6284

MULCH PLATE W/ BEARING AS

$144.99

$

Usually ships in 3-6 days

0

11:2

Exmark 126-0984

BEARING-BOTTOM, HOPPER
(Superseded to 142-3500)

$3.49

$

In Stock, Qty 8

0

12

Exmark 363-8641

WASHER-LOCK, INT

$0.99

$

In Stock, Qty 10

0

13

Exmark 126-6334

FLANGE-COVER, MOTOR

$28.99

$

Usually ships in 3-6 days

0

14

Exmark 126-4650

BRACKET-HOPPER, GATE CONT

$61.99

$

Usually ships in 3-6 days

0

15

Exmark 93-1633

WASHER

$2.99

$

In Stock, Qty 14

0

16

Exmark 126-3684

SPACER

$6.99

$

Usually ships in 3-6 days

0

17

Exmark 126-1237

BRACKET-DIFFUSER

$8.49

$

Usually ships in 3-6 days

0

18

Exmark 364-0371

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

19

Exmark 126-1646

ROD-CONTROL, DIFFUSER

$34.99

$

Usually ships in 3-6 days

0

20

Exmark 126-9586

SCREW-PPH

$8.99

$

Usually ships in 3-6 days

0

21

Exmark 126-2082

BRACKET-SPRING, HOPPER DE

$46.99

$

Usually ships in 3-6 days

0

22

Exmark 126-1290

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 126-1916

BRACKET-LEVER, HOPPER GAT

$55.99

$

Usually ships in 3-6 days

0

24

Exmark 135-3989

SPACER-FLANGED

$5.49

$

Usually ships in 3-6 days

0

25

Exmark 126-1252

WASHER-FELT

$1.49

$

Usually ships in 3-6 days

0

26

Exmark 126-0990

GUIDE-RATE, GATE
(Superseded to 142-3316)

$1.99

$

In Stock, Qty 7

0

27

Exmark 126-0991

DIFFUSER

$36.99

$

In Stock, only 2 left!

0

28

Exmark 126-3729

PIN-CLEVIS

$2.99

$

Usually ships in 3-6 days

0

29

Exmark 126-1631

PIN-COTTER, HAIR

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 126-0998

RATE DIAL ASM

$72.99

$

In Stock, only 4 left!

0

30:1

Exmark 126-0985

MOUNT-DIAL
(Superseded to 142-3319)

$3.49

$

In Stock, Qty 6

0

30:2

Exmark 126-0988

DIAL
(Superseded to 142-3359)

$11.99

$

In Stock, Qty 7

0

30:3

Rate Gate Link ASM

Note: Not serviced separately

$

$

Not available

30:3:1

Exmark 126-0987

LINK-GATE, RATE

$35.99

$

In Stock, only 1 left!

0

30:3:2

Exmark 126-4196

SCREW-SHOULDER, SLOTTED

$10.99

$

In Stock, only 2 left!

0

30:4

Exmark 126-0986

CLIP
(Superseded to 88-1080)

$9.49

$

In Stock, only 3 left!

0

31

Exmark 126-1903

GATE-RATE

$63.99

$

Usually ships in 3-6 days

0

32

Exmark 126-4112

LEVER-GATE

$19.99

$

Usually ships in 3-6 days

0

33

Exmark 126-3143

SCREEN-HOPPER, LARGE HOLE

Note: Sold separately

$252.99

$

Usually ships in 3-6 days

0

33

Exmark 126-3240

SCREEN-HOPPER, MEDIUM HOL

$206.99

$

Usually ships in 3-6 days

0

33

Exmark 126-3242

SCREEN-HOPPER, SMALL HOLE

Note: Sold separately

$252.99

$

Usually ships in 3-6 days

0

34

Exmark 126-1624

CLAMP-LOOP

$2.99

$

Usually ships in 3-6 days

0

35

Exmark 126-0759

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0
