SSS270CSB00000 - Exmark Spreader Sprayer (SN: 402082300 - 404314158) (2018) Spreader Assembly Parts Diagram

Spreader Sprayer

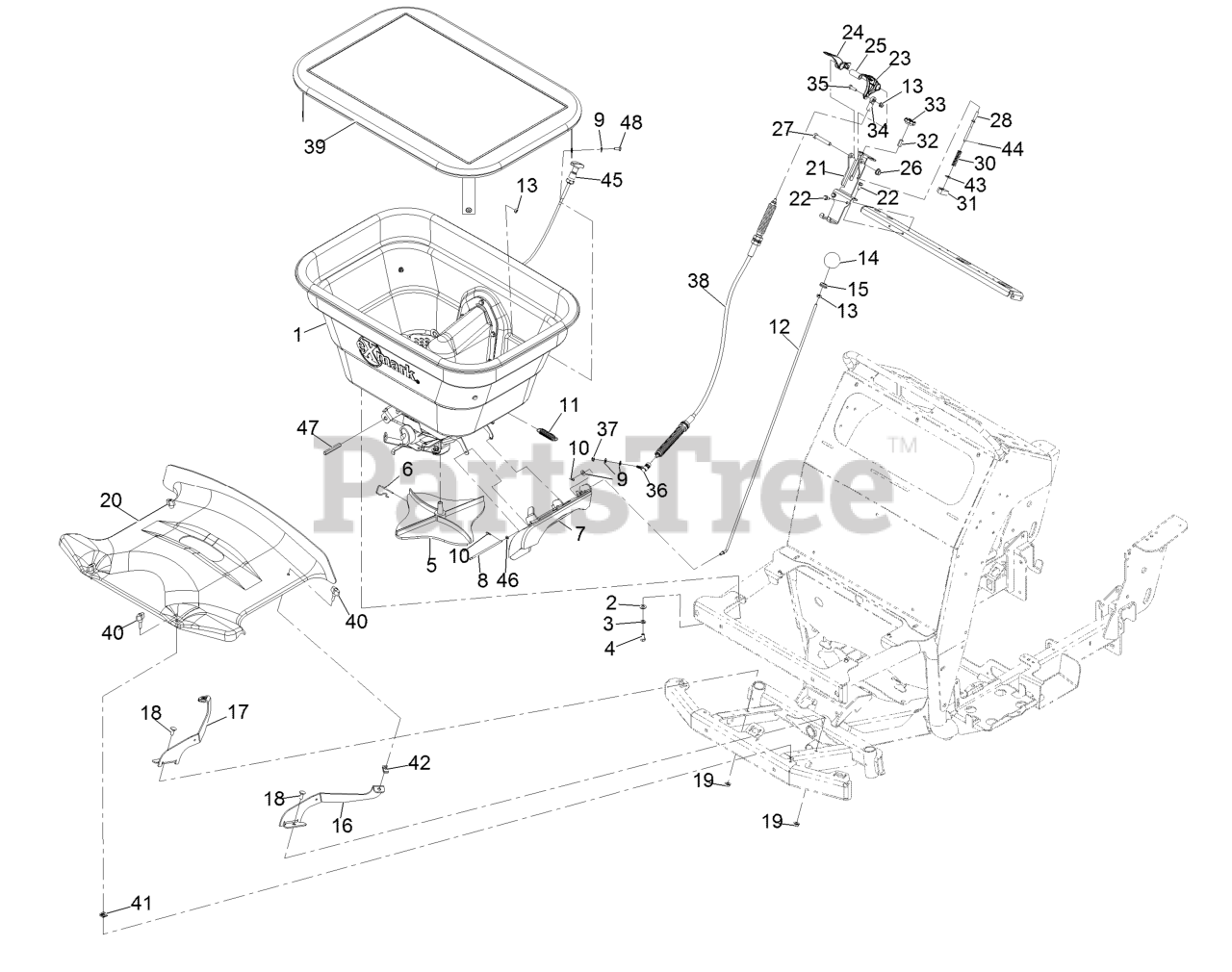

Spreader Assembly Parts Diagram

  • Title

1

Spreader Hopper ASM

$

$

Not available

2

Exmark 107-0279

Washer

$1.99

$

Usually ships in 3-6 days

0

3

Exmark 107-0280

Washer-Lock

$1.99

$

Usually ships in 3-6 days

0

4

Exmark 126-2506

Screw-HH

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 126-0858

Spinner-Spreader

$71.99

$

Usually ships in 3-6 days

0

6

Exmark 126-1246

Clip-Spinner
(Superseded to 142-3541)

$10.99

$

In Stock, only 2 left!

0

7

Side Deflector ASM

$

$

Not available

8

Exmark 135-2558

Pin-Deflector SS

$29.99

$

Usually ships in 3-6 days

0

9

Exmark 360-0140

Washer-Flat

$0.99

$

In Stock, Qty 8

0

10

Exmark 126-1631

Pin-Cotter, Hair

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 126-2127

Spring-Extension

$7.99

$

In Stock, only 2 left!

0

12

Exmark 126-2190

Rod-Control, Deflector

$41.99

$

Usually ships in 3-6 days

0

13

Exmark 135-2880

Nut-Hex Flg

$1.49

$

In Stock, only 1 left!

0

14

Exmark 121-1877

Knob-Rate, Flow

$9.99

$

Usually ships in 3-6 days

0

15

Exmark 1-633630

Grommet

$5.99

$

In Stock, Qty 8

0

16

Exmark 126-2145

Bracket-Cover, Front (LH)

$50.99

$

Usually ships in 3-6 days

0

17

Exmark 126-2146

Bracket-Cover, Front (RH)

$50.99

$

Usually ships in 3-6 days

0

18

Exmark 126-0695

Screw-CARR

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 135-2881

Nut-Hex Flg

$1.99

$

In Stock, only 1 left!

0

20

Exmark 126-2063

Cover-Front, Spreader/Sprayer

$196.99

$

Usually ships in 3-6 days

0

21

Exmark 126-3133

Mount-Handle

$41.99

$

Usually ships in 3-6 days

0

22

Exmark 32144-10

Screw-HWH 1/4-20 X .62

$4.99

$

In Stock, Qty 7

0

23

Exmark 126-3947

Lever-Spread, Wide

$10.99

$

Usually ships in 3-6 days

0

24

Exmark 126-3948

Lever-Spread, Narrow

$10.99

$

Usually ships in 3-6 days

0

25

Exmark 126-3984

Spacer

$13.99

$

Usually ships in 3-6 days

0

26

Exmark 135-2882

Nut-Hex Flg

$2.99

$

In Stock, Qty 8

0

27

Exmark 323-11

Screw-HH 3/8-16 X 2 1/4

$2.49

$

In Stock, Qty 20+

0

28

Exmark 126-3929

Link-Adjust, Narrow

$27.99

$

Usually ships in 3-6 days

0

30

Exmark 125-0547

Spring-Compression, Bail

$1.99

$

Usually ships in 3-6 days

0

31

Exmark 126-3147

Stop-Spread, Narrow

$29.99

$

Usually ships in 3-6 days

0

32

Exmark 126-4891

Nut-Coupler

$10.99

$

Usually ships in 3-6 days

0

33

Exmark 126-3905

Knob

$11.99

$

Usually ships in 3-6 days

0

34

Exmark 2411-41

Rod End-Ball Joint

$42.99

$

Usually ships in 3-6 days

0

35

Exmark 126-0498

Screw-HH 1/4-20 X 7/8 SS

$1.49

$

In Stock, only 3 left!

0

36

Exmark 126-2005

Ball-Joint

$27.99

$

Usually ships in 3-6 days

0

37

Exmark 126-2725

Nut-Hex, NI

$1.49

$

Usually ships in 3-6 days

0

38

Exmark 126-1783

Cable

$196.99

$

Usually ships in 3-6 days

0

39

Exmark 126-2815

Cover-Hopper

$101.99

$

In Stock, only 3 left!

0

40

Exmark 126-5846

Knob-T

$14.99

$

In Stock, only 1 left!

0

41

Exmark 126-3740

Nut-Retainer, U Style

$5.49

$

In Stock, only 1 left!

0

42

Exmark 126-3739

Nut-Retainer, U Style

$5.49

$

Usually ships in 3-6 days

0

43

Exmark 3256-78

Washer

$1.99

$

Usually ships in 3-6 days

0

44

Exmark 3272-5

Pin-Cotter 3/32 X 1/2

$1.49

$

In Stock, Qty 5

0

45

Exmark 126-4150

Cable-Control, Turn Lock

$97.99

$

Usually ships in 3-6 days

0

46

Exmark 126-0759

Washer-Flat

$1.49

$

In Stock, Qty 7

0

47

Exmark 126-4655

Post-Hex, Diffuser Guide

$21.99

$

Usually ships in 3-6 days

0

48

Exmark 126-1290

Screw-HH 1/4-20 X 5/8 SS

$1.49

$

Usually ships in 3-6 days

0
