SSS270CSB00000 - Exmark Spreader Sprayer (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

Spreader Sprayer

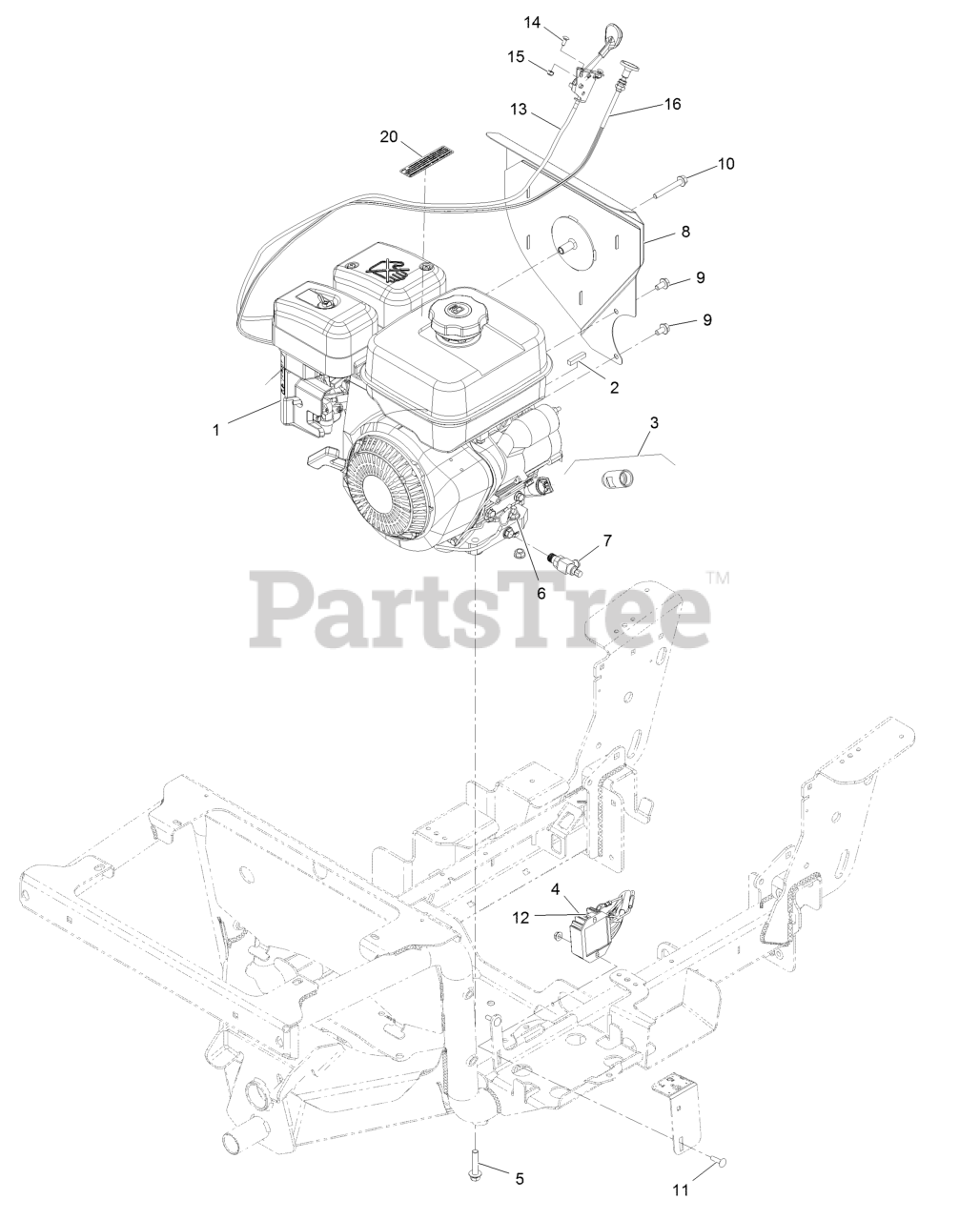

Engine Assembly Parts Diagram

  • Title

1

Engine-Subaru, Ex27

$

$

Not available

2

Exmark 126-2532

Key-Crankshaft

$13.99

$

Usually ships in 3-6 days

0

3

Exmark 126-1432

Extender-Dipstick

$90.99

$

Usually ships in 3-6 days

0

4

Exmark 126-4658

Regulator
(Superseded to 142-3392)

$537.99

$

Usually ships in 3-6 days

0

5

Exmark 126-2710

Screw-HHF

$12.99

$

Usually ships in 3-6 days

0

6

Exmark 135-2882

Nut-Hex Flg

$2.99

$

In Stock, Qty 20+

0

7

Exmark 103-6602

Valve-Oil Drain

$86.99

$

Usually ships in 3-6 days

0

8

Exmark 126-2426

Heat Shield ASM

$197.99

$

Usually ships in 3-6 days

0

9

Exmark 117-1836

Screw-HHF, Lock

$10.99

$

Usually ships in 3-6 days

0

10

Exmark 33104-060

Screw-HHF

$37.99

$

Usually ships in 3-6 days

0

11

Exmark 126-1455

Screw-CARR

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 135-2880

Nut-Hex Flg

$1.49

$

In Stock, only 1 left!

0

13

Exmark 126-2240

Control-Throttle

$42.99

$

Usually ships in 3-6 days

0

14

Exmark 1-807513

Bolt-Carriage #10-24 X 1/2

$2.99

$

In Stock, Qty 20+

0

15

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

16

Exmark 126-2285

Cable-Choke, Push/Pull

$35.99

$

In Stock, only 4 left!

0

20

Exmark 117-2718

Decal-Arrester, Spark

$7.99

$

In Stock, only 1 left!

0
