SSS270CSB00000 - Exmark Spreader Sprayer (SN: 402082300 - 404314158) (2018) Control Valve Manifold Assembly (cont.) Parts Diagram

Spreader Sprayer

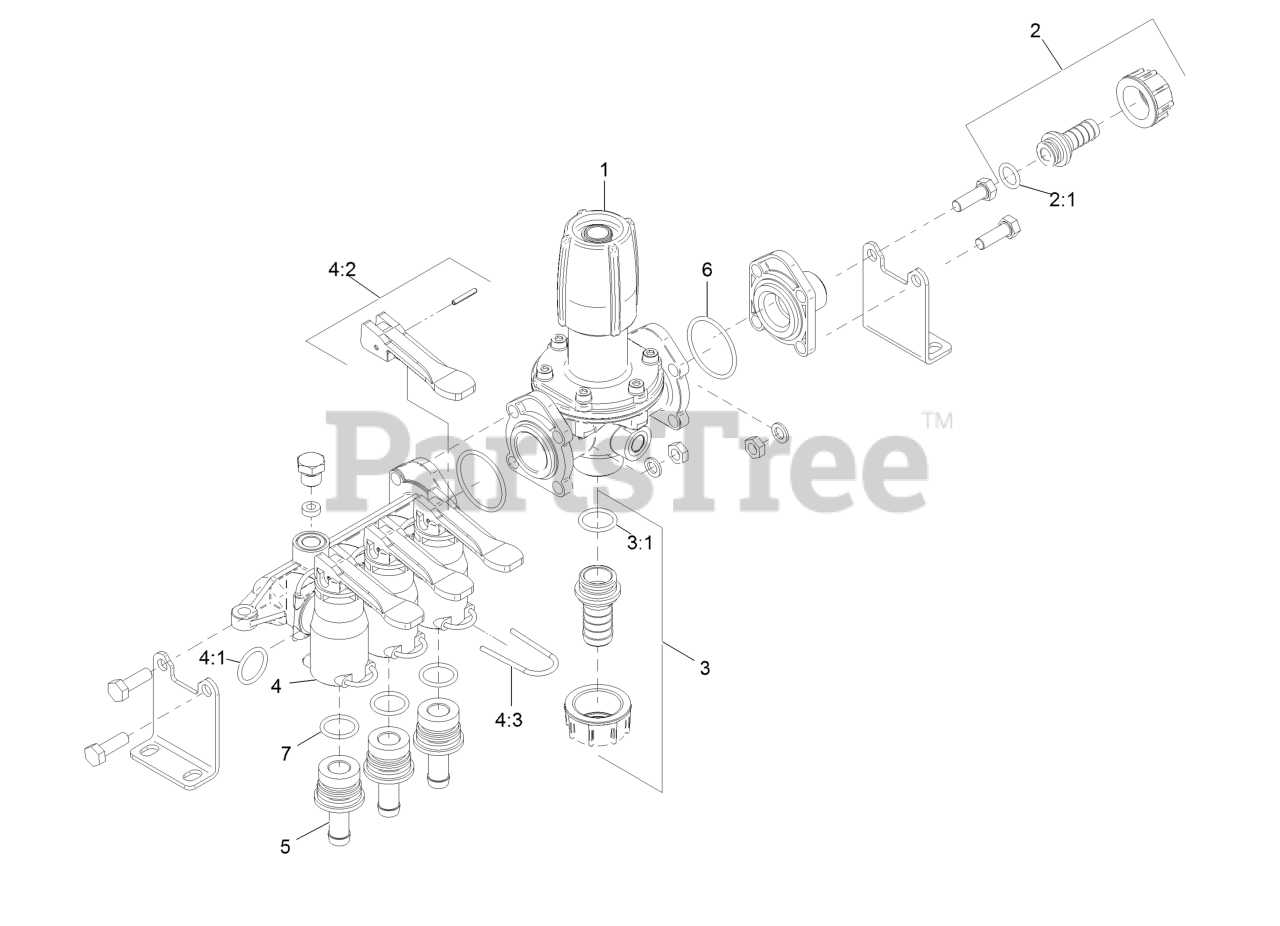

Control Valve Manifold Assembly (cont.) Parts Diagram

  • Title
1

Exmark 126-6303

Regulator

$352.99

$

Usually ships in 3-6 days

0

2

Exmark 126-6304

Flynut Assembly

$10.99

$

In Stock, Qty 5

0

2:1

Exmark 126-6322

O-Ring Kit, Regulator Inlet Barb

$50.99

$

Usually ships in 3-6 days

0

3

Exmark 126-6317

Flynut Assembly

$12.99

$

Usually ships in 3-6 days

0

3:1

Exmark 126-6323

O-Ring Kit, Regulator Outlet Barb

$34.99

$

Usually ships in 3-6 days

0

4

Exmark 126-7641

Valve Assembly W/ O-Ring

$81.99

$

In Stock, Qty 9

0

4:1

Exmark 126-6328

O-Ring Kit, Valve Inlet

$53.99

$

Usually ships in 3-6 days

0

4:2

Exmark 126-6319

Lever And Pin Assembly
(Superseded to 126-7641)

$81.99

$

In Stock, Qty 9

0

4:3

Exmark 126-6332

Wireform Retainer Kit

$40.99

$

Usually ships in 3-6 days

0

5

Exmark 126-6321

Hose Barb

$23.99

$

In Stock, only 1 left!

0

6

Exmark 126-6326

O-Ring Kit, Regulator Flange

$71.99

$

Usually ships in 3-6 days

0

7

Exmark 126-6327

O-Ring Kit, Valve Outlet Barb

$

$

Not available
