SSS270CSB00000 - Exmark Spreader Sprayer (SN: 316000000 - 399999999) (2016) Electrical Assembly Parts Diagram

Spreader Sprayer

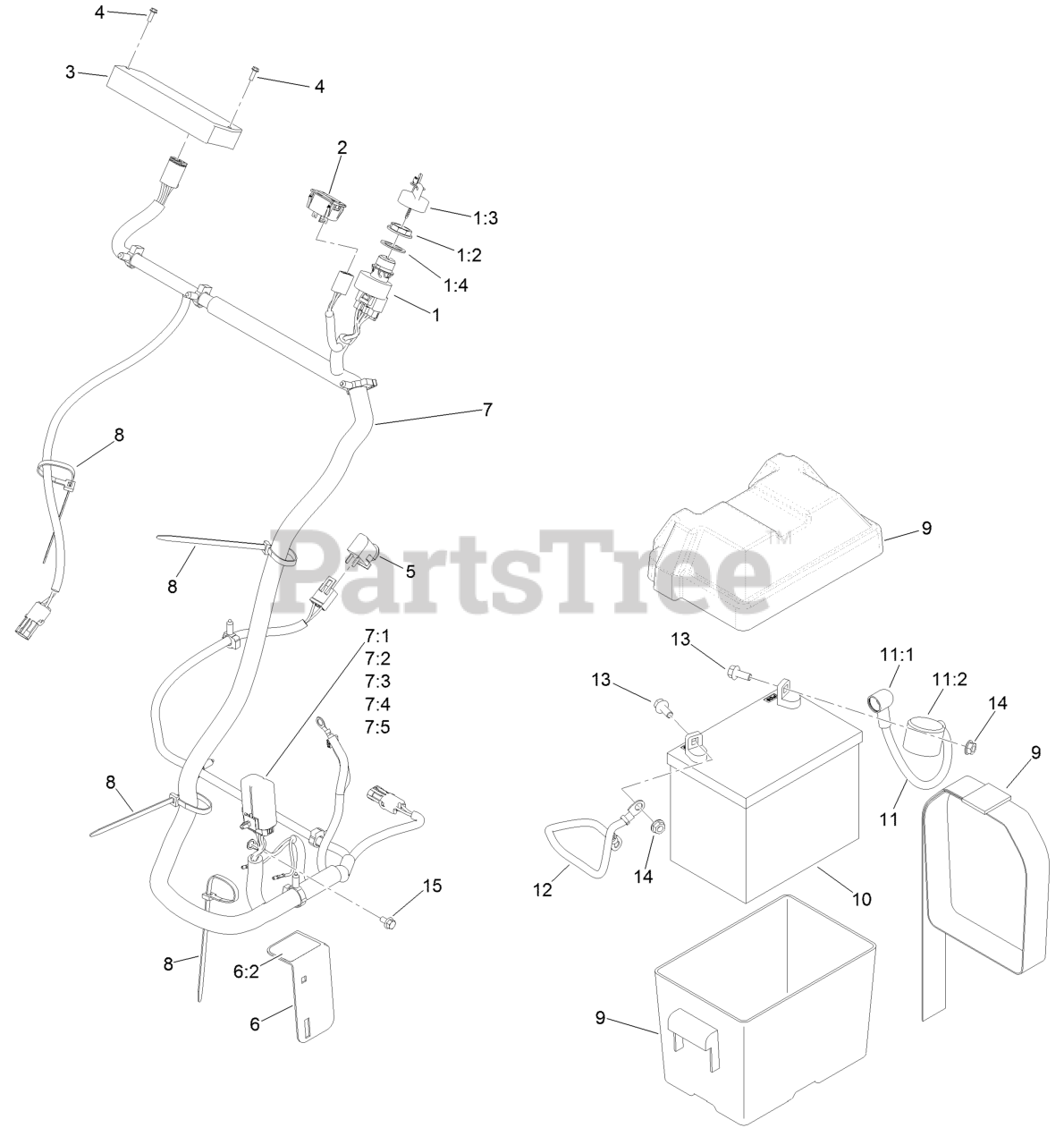

Electrical Assembly Parts Diagram

  • Title

1

Exmark 120-3956

IGNITION SWITCH ASM

$87.99

$

In Stock, only 2 left!

0

1:2

Exmark 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

1:3

Exmark 106-5270

IGNITION KEY SET

$21.99

$

In Stock, Qty 18

0

1:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

2

Exmark 126-3931

METER-HOUR

$67.99

$

Usually ships in 3-6 days

0

3

Exmark 126-6622

CONTROLLER-DC

$857.99

$

Usually ships in 3-6 days

0

4

Exmark 32144-87

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

6

Exmark 126-4656

FUSE BRACKET ASM

$56.99

$

Usually ships in 3-6 days

0

6:2

Exmark 126-4122

Decal-Fuse

$

$

Currently unavailable

7

Exmark 126-3458

HARNESS-WIRE

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$361.99

$

Usually ships in 3-6 days

0

7:1

Exmark 121-8868

FUSE-MINI BLADE, 20 AMP

$5.99

$

Usually ships in 3-6 days

0

7:2

Exmark 126-3991

RELAY-MICRO

$41.99

$

In Stock, only 1 left!

0

7:3

Exmark 126-4101

CAP-POWER DISTRIBUTION MO

$27.99

$

Usually ships in 3-6 days

0

7:4

Exmark 126-4102

CLIP-POWER DISTRIBUTION M

$13.99

$

Usually ships in 3-6 days

0

7:5

Exmark 126-6343

Block-Foam

$2.99

$

Usually ships in 3-6 days

0

8

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

9

Exmark 126-1424

BATTERY BOX

$46.99

$

Usually ships in 3-6 days

0

10

Battery (300 Cca, Wet)

Note: Not serviced separately

$

$

Not available

11

Exmark 116-4730

CABLE-BATTERY, POSITIVE

$19.99

$

Usually ships in 3-6 days

0

11:1

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

11:2

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 3 left!

0

12

Exmark 114-9715

CABLE-BATTERY, NEGATIVE

$25.99

$

Usually ships in 3-6 days

0

13

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, Qty 8

0

14

Exmark 126-2232

135-2881
(Superseded to 135-2881)

$1.99

$

In Stock, only 1 left!

0

15

Exmark 33103-012

SCREW-HHF

$5.49

$

In Stock, only 2 left!

0
